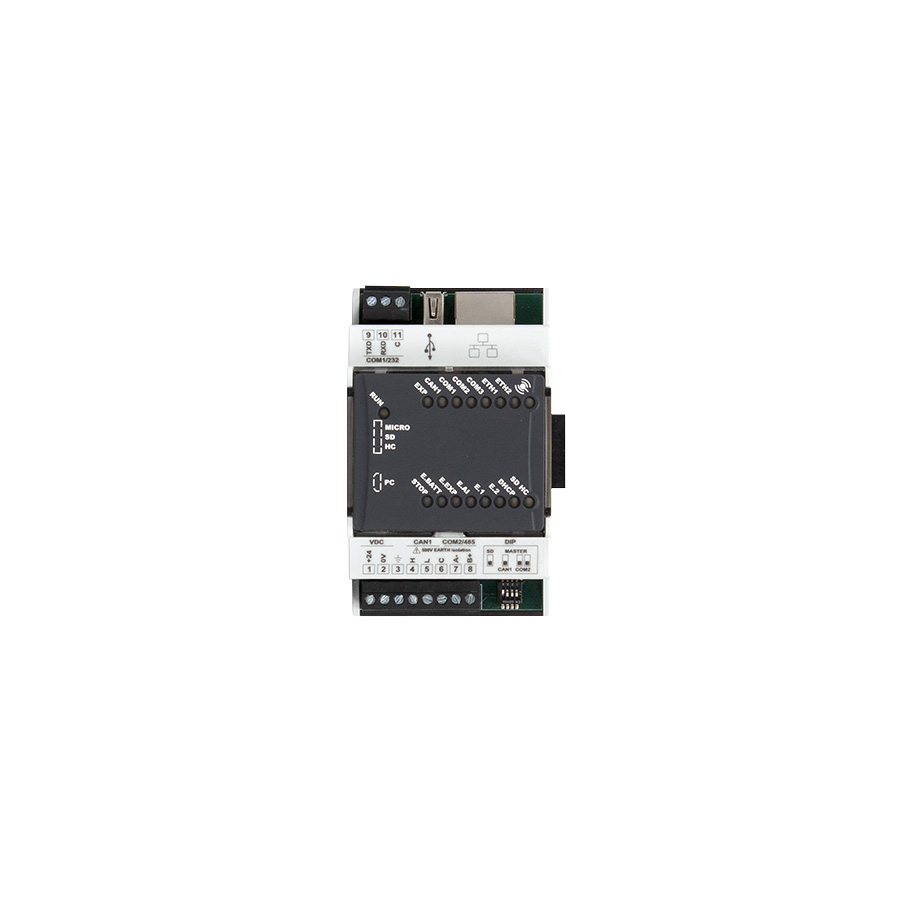

LogicLab is the development environment for Pixsys EPL200, PL280 and TY terminals (PixsysSuite6), as well as for programming the logic part on Pixsys TD series terminals with Soft-PLC (TD410, TD710, TD810 series) and PL600 and PL500 (PixsysSuite5).

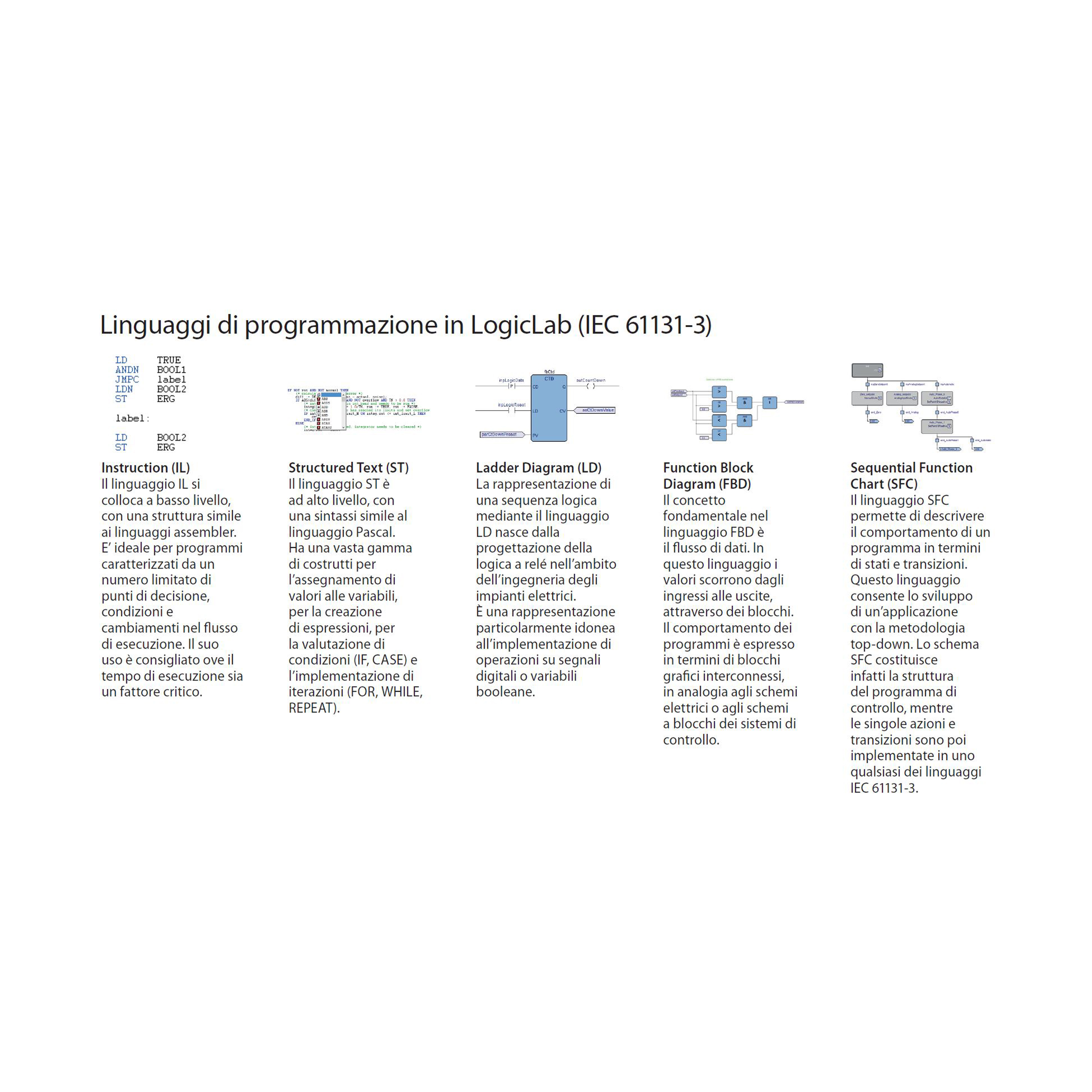

The tool complies with IEC 61131-3 standards and supports the programming languages Instruction List (IL), Structured Text (ST), Ladder Diagram (LD), Function Block Diagram (FDB), Sequential Function Chart (SFC).
The function libraries available in Logiclab include counters, timers, mathematical operators, rescaling functions, PID algorithm, datalogger, recipes, alarms and memory management options.

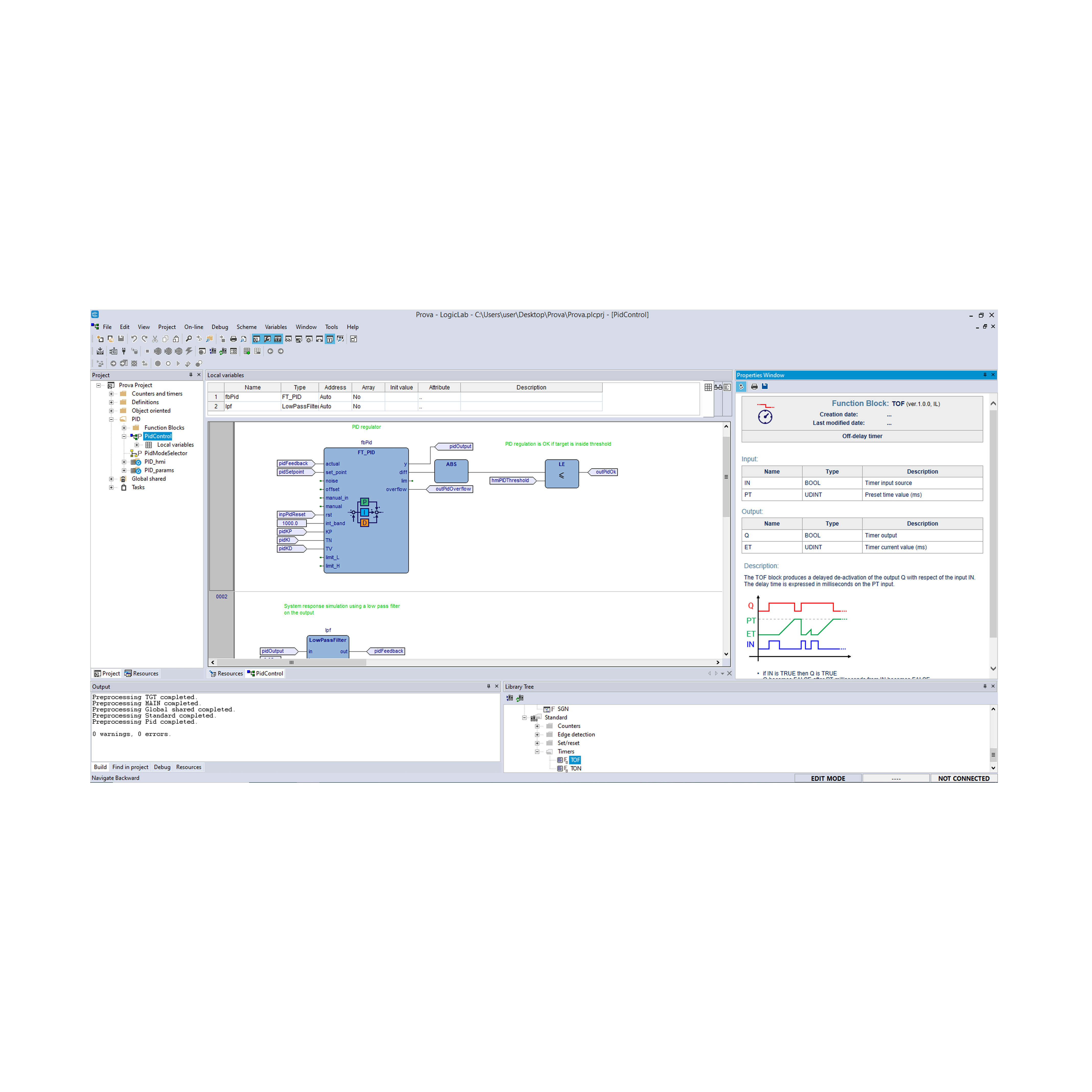

Code debugging is possible even without connected PLC hardware; the simulator allows the active logics and the real-time value of variables to be displayed on the PC.
Pixsys devices are mapped within the tool for fast integration into project communication networks by drag&drop mode.
Pixsys library contains propriety functions relying on Pixsys background in process control like PID-regulation, Auto-Tuning, Open/Close logics for valves control, time-proportioned control of outputs, Ramp/Soak functions for thermal profiles.
