    SSR - SAL/SU/SUL series

    These series of Zero-Crossing  SSRs are distinguished by their small footprint of only 22.5 mm.

    They are particularly suitable in applications with resistive loads.

    The SAL series features an integrated heatsink for DIN-rail mounting.

    Request Information →

    Request Information

    ×

    • Man. Inst. EN/FR 2200.00.077/.078
    • Man. Inst. EN/FR 2200.00.079/.083/.084/.085
    to unlock downloads ACCEPT COOKIES

    ORDERING CODES

    2200.00.077

    2200.00.078

    2200.00.085

    2200.00.083

    2200.00.079

    2200.00.084

    Load current

    32 A

    35 A

    30 A

    35 A

    50 A

    75 A

    Output voltage

    24.. 600 VAC - 1 phase

    24.. 600 VAC - 1 phase

    24.. 400 VAC - 1 phase

    24.. 600 VAC - 1 phase

    24.. 600 VAC - 1 phase

    24.. 600 VAC - 1 phase

    Control voltage

    3,5..32 V DC

    Type of control terminal block

    Vite fissa

    Vite fissa

    Removable terminals

    Removable terminals

    Removable terminals

    Removable terminals

    Integrated heatsink

    YES

    NO

    YES

    NO

    NO

    NO

    Technology

    Zero-Crossing (with low zero-crossing level), for applications with resistive charge

    Signaling Led

    Control status LED

    Protection

    Against short-circuit on output

    Sealing

    IP20 on screw connection
    Certifications

    CE

    • 2200.00.077
      SSR 32A/24-600VAC 3.5..32VDC/DISS SAL965460 22x90x107mm
      link locator link pixsys
    • 2200.00.078
      SSR 35A/24-600VAC 3.5..32VDC SA963460 22x90x41mm
      link locator link pixsys
    • 2200.00.085
      SSR 30A/24-400VAC 3.5..32VDC/DISS SUL963460 22x90x107mm
      link locator link pixsys
    • 2200.00.083
      SSR 35A/24-600VAC 3.5..32VDC SU963460 22x90x46mm
      link locator link pixsys
    • 2200.00.079
      SSR 50A/24-600VAC 3.5..32VDC SU965460 22x90x46mm
      link locator link pixsys

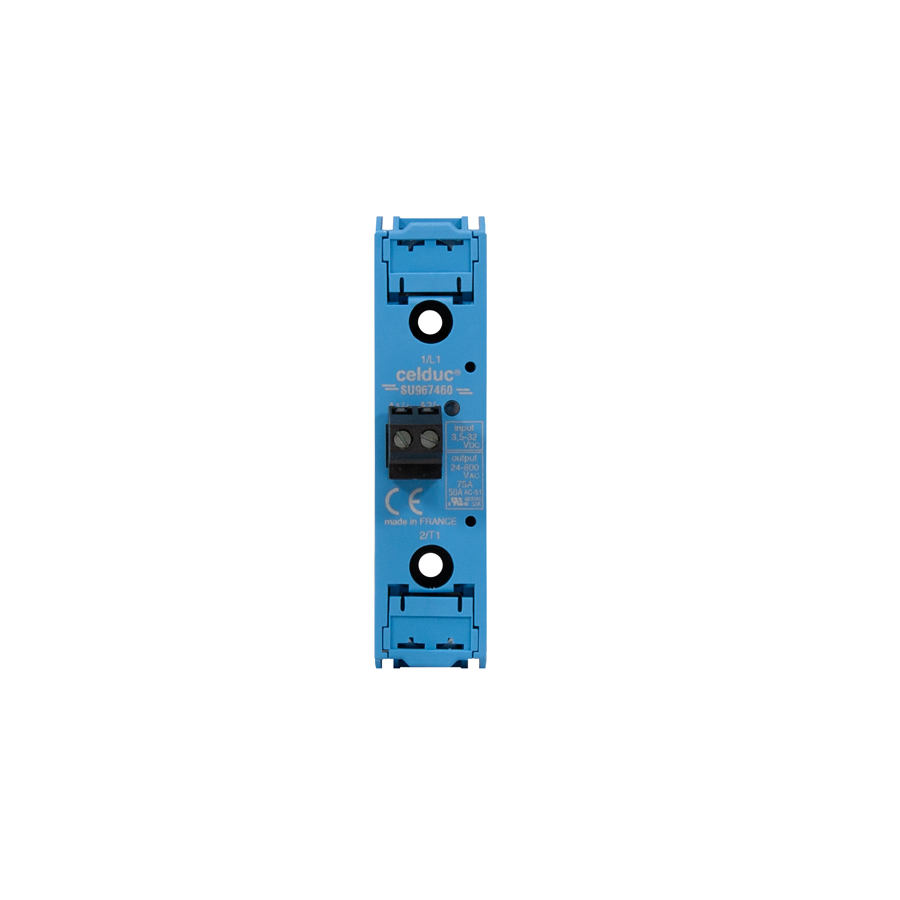

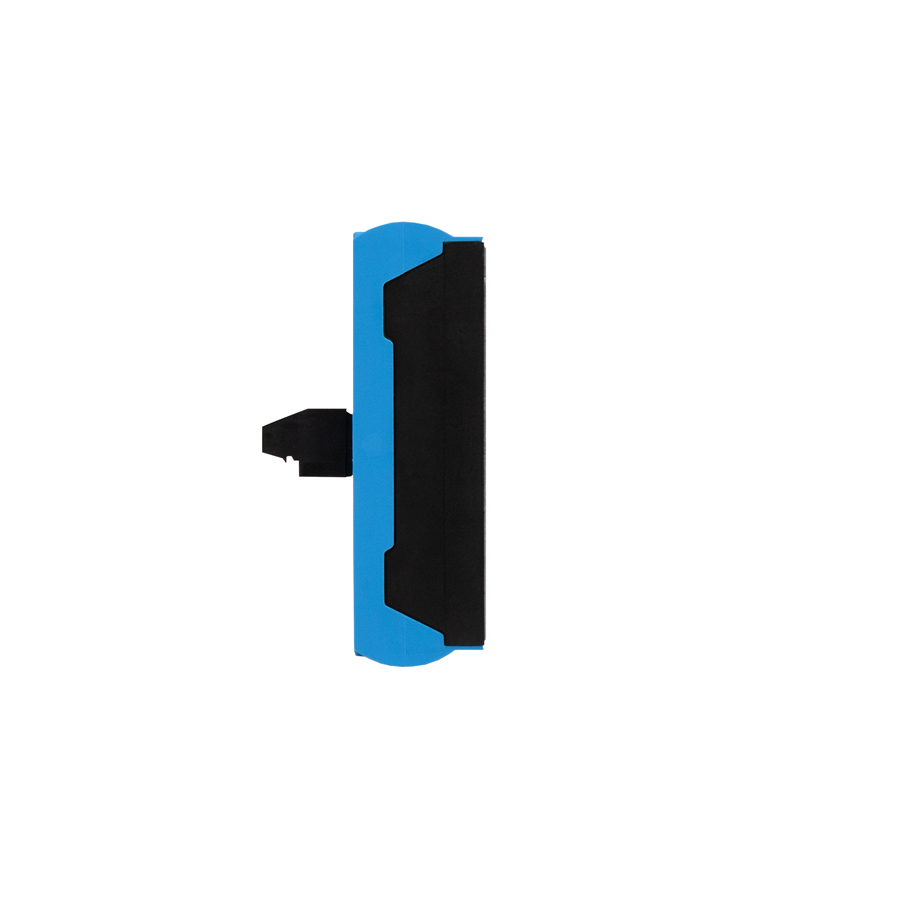

    • 2200.00.084
      SSR 75A/24-600VAC 3.5..32VDC SU967460 22x90x46mm
      link locator link pixsys
    • OPTIONAL HEATSINKS
    • 2200.00.099
      DISSIP. WF112100 50A - DIN ADAPTER For series SU
      link locator link pixsys
