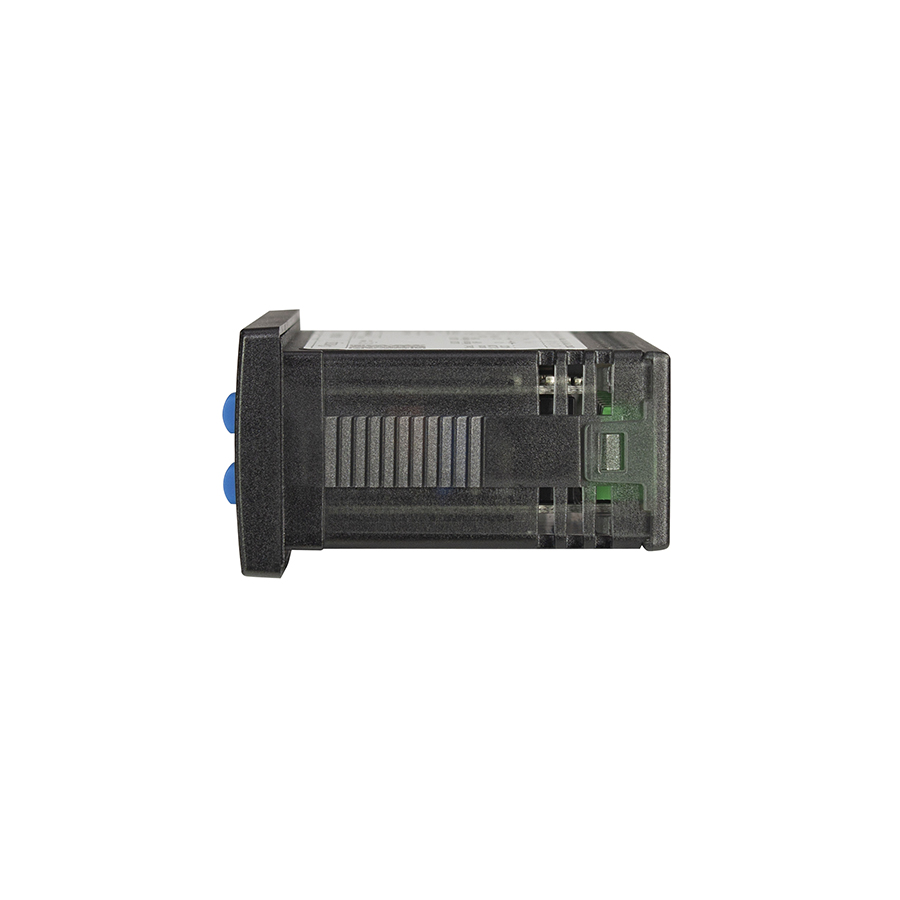

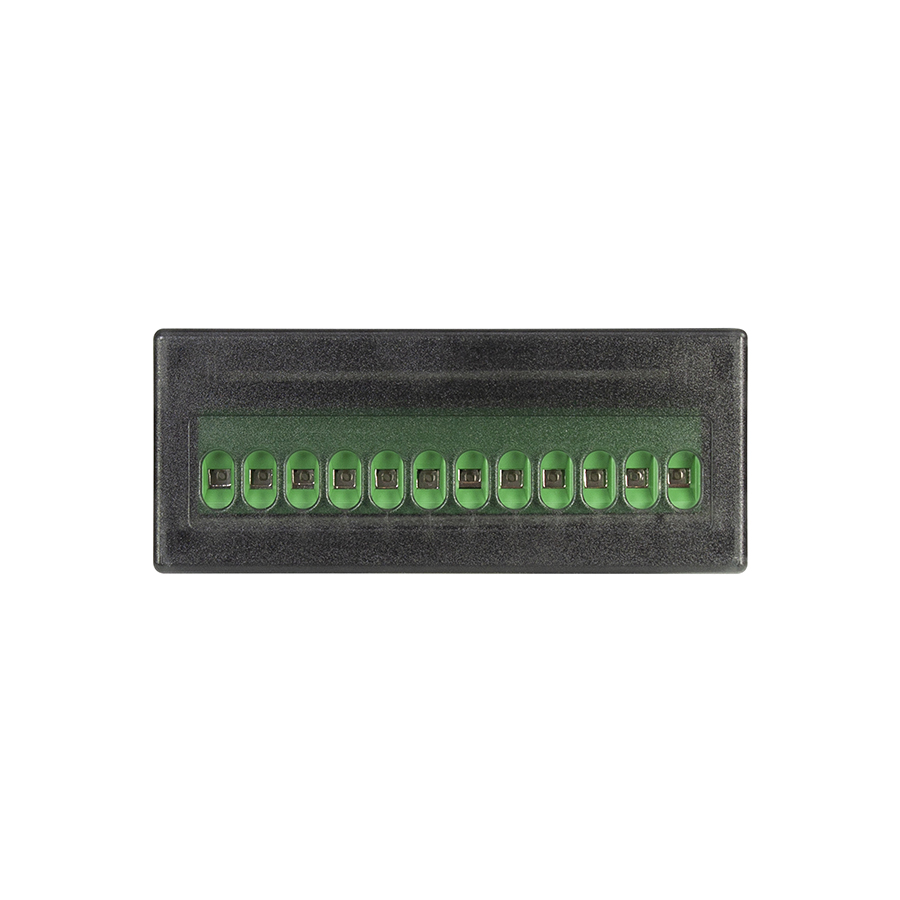

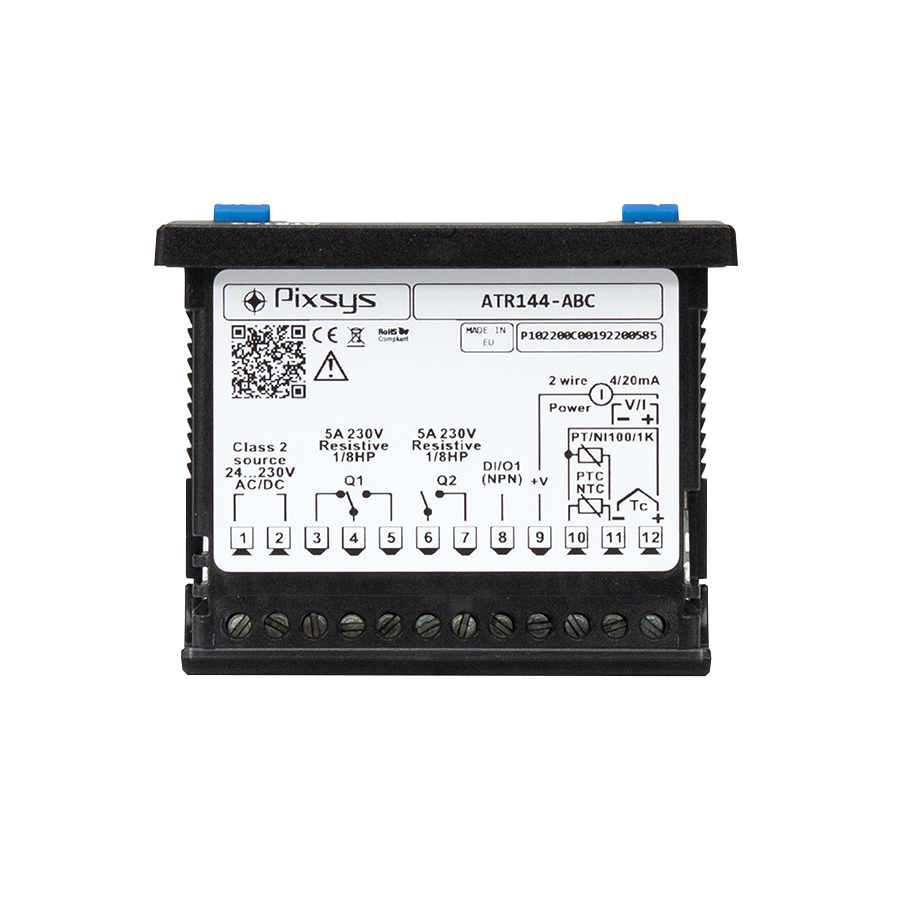

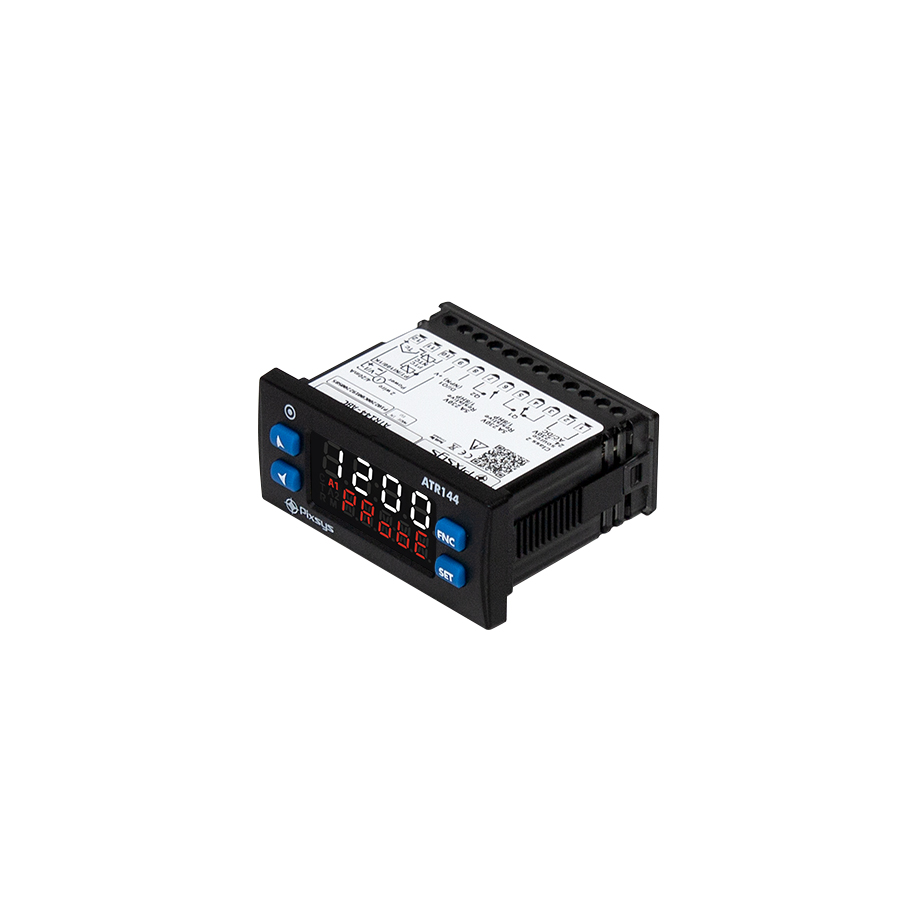

    ATR144 | PID Controller 32x74mm

    The ATR144 is a PID controller in the compact 32x74mm format that keeps the same flexibility of the entire ATR Blue Line range.

    The analogue input is programmable for a wide range of temperature probes as well as mA/Volt process signals (pressure, flow, leve, humudity...).

    Digital outputs are programmable as either ON/OFF control or PID regulation; multiple alarm modes (threshold, band, upper/low deviation..) are also selectable.

    RS485 communication serial and Modbus RTU/ Slave protocol are the network communication options.

    The extended range power supply 24....230V AC/DC with galvanic isolation from the mains extends its flexibility in the event of fluctuations in electricity grid  and also for stock management as one single code covers different applications.

    Request Information →

    Request Information

    ×

    • Data sheet
    • UL Certification
    • 3D Model
    • Man. Inst. IT/EN/DE
    • MyPixsysLab
    to unlock downloads ACCEPT COOKIES

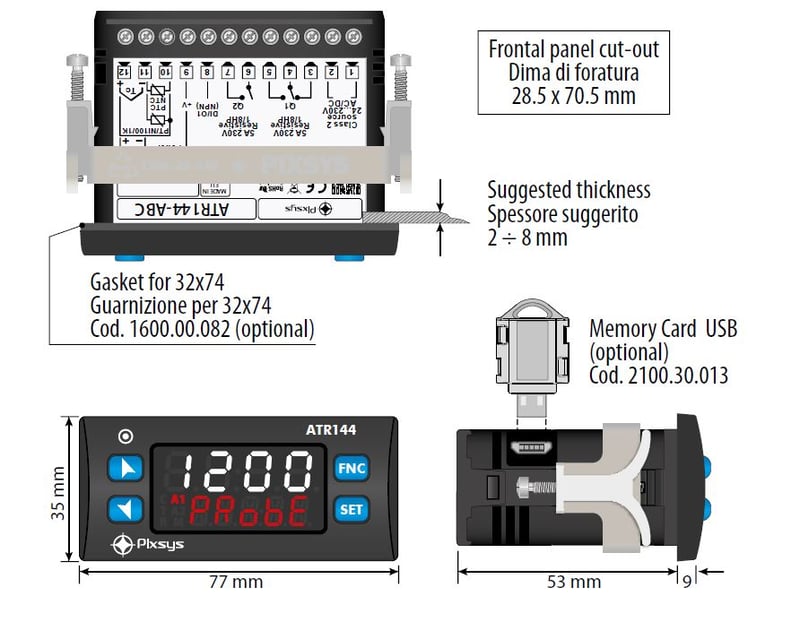

    • Dimensions
      74 x 32 x 53 mm
    • Material
      Box: PC UL94V2 self-extinguishing. Front panel: PC UL94V2
    • Weight
      Approx. 120 g
    • Sealing
      Front panel: IP65, Box and terminal blocks: IP20
    • Operating conditions
      Temperature 0-45 °C, humidity 35..95 RH%, max elevation 2000m
    • Certifications
      CE, UL
    ORDERING CODES ATR144-ABCATR144-ABC-TATR144-ADATR144-AD-T
    Power supply 24..230 V AC / DC ±15% 50/60 Hz - galvanic isolation 2,5KV 12..24 V AC / DC ±15% 50/60 Hz - galvanic isolation 2,5KV
    Consumption 5 Watt/Va
    Display 4 digits 9.6 mm (0.38"), 5 digits 7.1 mm (0.28"), 6 Led signaling
    Analogue inputs 1 x Ris. 16bit, programmable for thermocouples K, S, R, J, T, E, N, B (automatic compensation of cold junction -25..85°C, Toll. @25°±0,2% F.S. ±1 digit F.S.), Thermoresistances PT100, PT500, PT1000, Ni100, Ni120, PTC 1K, NTC 10K (β 3435K e β3694K), NTC 2252 (β3976K) , process signals 0..1/5/10 V (50000 points), 0/4..20mA (40000 points), 0..60 mV (25000 points), potentiometer 1..150 KΩ (50000 points).
    Impedance:
    0-10 V: Ri>110 KΩ
    0-20 mA: Ri<5 Ω
    0-40 mV: Ri>1 MΩ
    Sampling time Programmable up to 2,1 ms (frequency up to 470 Hz)
    Digital inputs 2x PNP (only with sensors different from PT100 3 wires)
    Digital outputs 1x SSR 12 / 24 V DC - 25 mA max
    Auxiliary Outputs 12/24 VDC - 30mA max for sensor supply
    Relais Outputs2x 5A - 250 V AC resistive load1x 5A - 250 V AC resistive load 2x 5A - 250 V AC resistive load1x 5A - 250 V AC resistive load
    Serial communication - RS485 (1200..115200 Baud) galvanically isolatd - RS485 (1200..115200 Baud) galvanically isolatd
    USB 1x micro USB for programming via PC with MyPixsysLab
    • Control algorithms
      ON - OFF with hysteresis, P., P.I., P.I.D., P.D. time-proportioned
    • Tuning
      Manuale or automatic
    • Alarm mode
      Absolute/ threshold, band, upper/lower deviation, Alarms with optional manual reset and activation delay, Loop Break Alarm.
    • Dual PID
      Heating / cooling with dual PID
    • Soft-Start
      Rising gradient programmable as Degree / hour or fixed output %
    • Open/Close logics
      Motorised valves
    • Software parameter configuration
      Memory Card, software MyPixsysLab, codes EASY-UP - Programming via APP (NFC) "MyPixsys" for Android e iOS devices
    • Data protection
      Lock of Command/Alarm Setpoints - Access to parameters by Password
    • Communication protocols
      Modbus RTU
    ATR144-3D
    • ATR144-ABC
      MULTI-SETPOINT CONTROLLER 32X74 4+5 digit 1AI-1DI/O-2RELAYS
      link amazon link locator link pixsys link shop
    • ATR144-ABC-T
      MULTI-SETPOINT CONTROLLER 32X74 4+5 Digit 1AI-1DI/O-1RL-RS485
      link locator link pixsys link shop
    • ATR144-AD
      CONTROLLER MULTI-SETPOINT 32x74 4+5 digit 1AI-1DI/O-2RELAYS
      link locator link pixsys link shop
    • ATR144-AD-T
      CONTROLLER MULTI-SETPOINT 32x74 4+5 digit 1AI-1DI/O-1RELAYS-1RS485
      link locator link pixsys link shop
    • Adapters and Cover plates

      Adapters and Cover plates

    • DIN Rail mounting kit

      DIN Rail mounting kit

    • Memory Cards

      Memory Cards

    • NET200 | Serial converter

      NET200 | Serial converter
