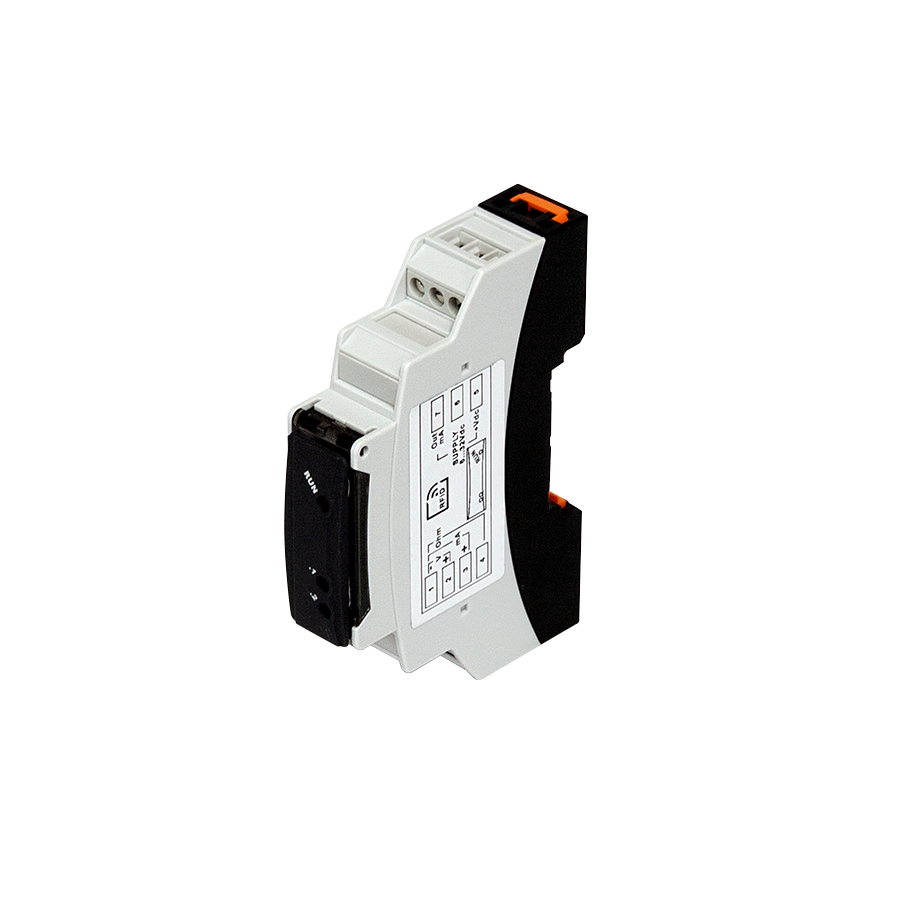

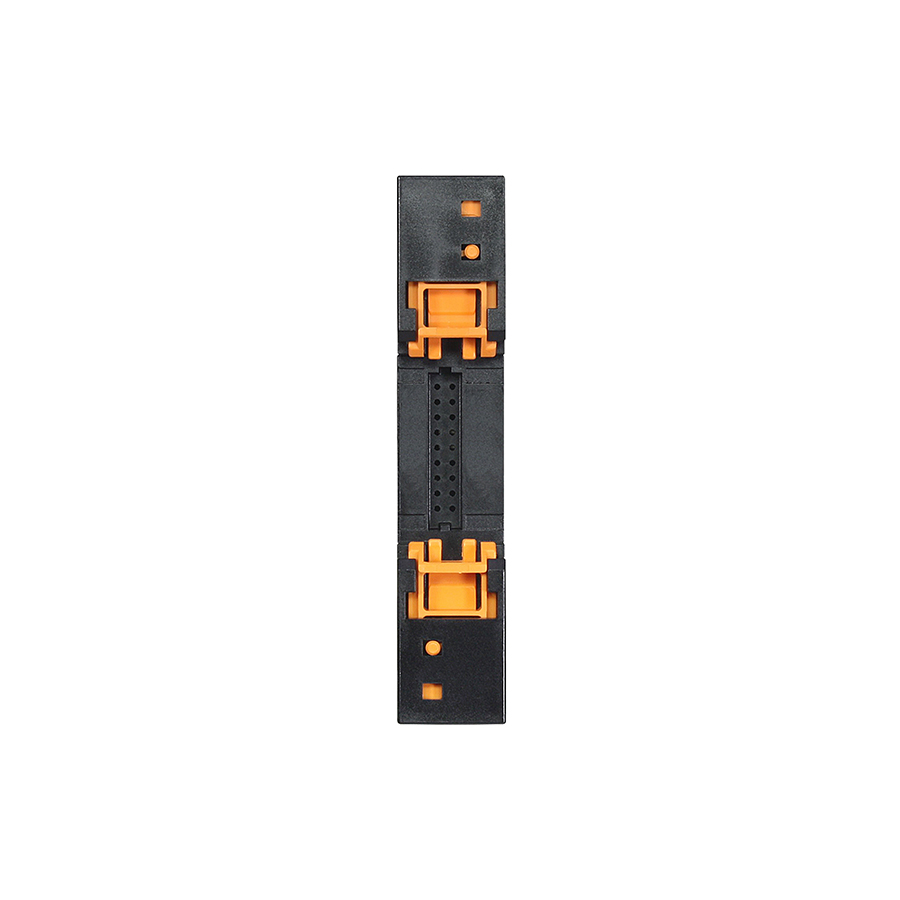

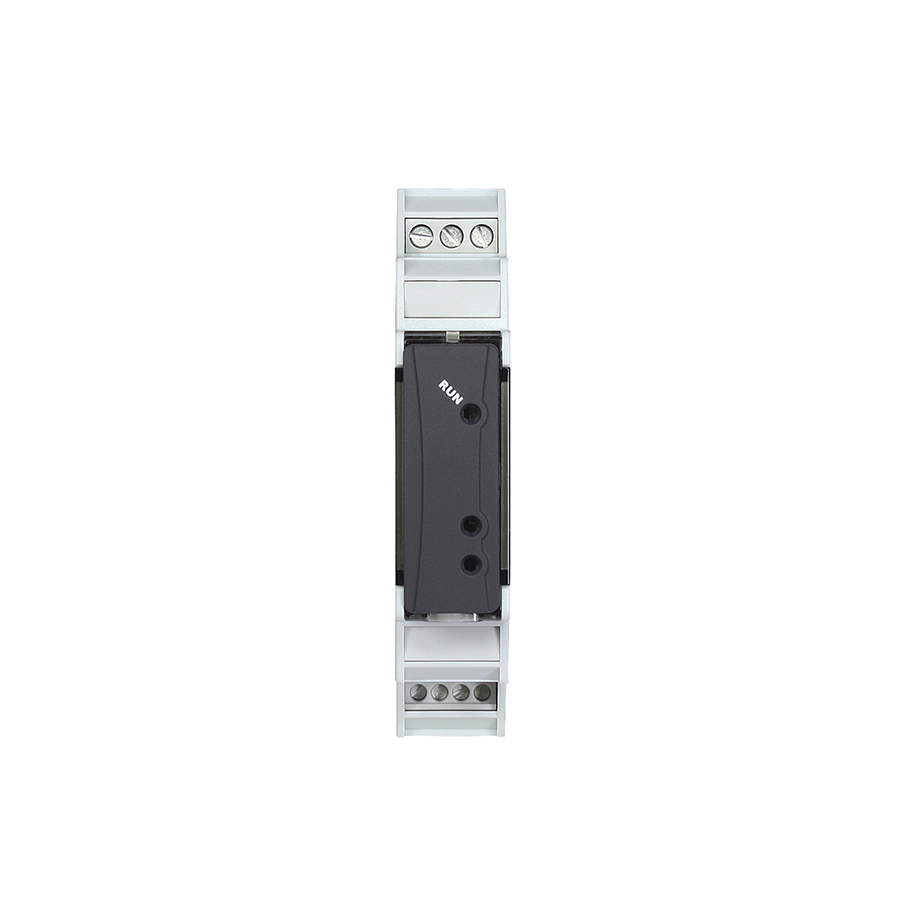

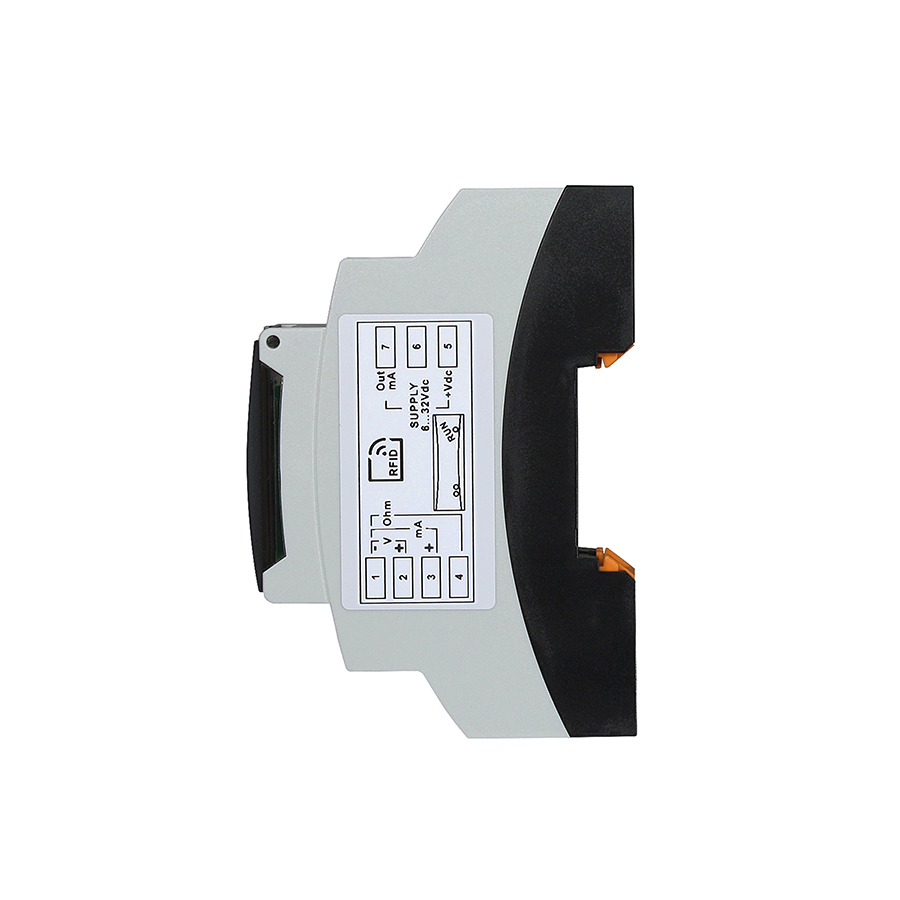

2000.35.017 | Signal converter/isolator

This DIN rail transmitter converts a signal 0/4..20mA, 0..10V into a signal 4..20 mA current signal (2-wire power loop).

The analogue input is galvanically isolated (2500V) from the analogue output, which guarantees safer wiring in case of electrical noises or different electrical potentials in the same system.

Unique features is the programming via NFC technology, not requiring the devices to be powered up. User can chose between a dedicated NFC programmer and RF-Programmer software on Pc or App MyPixsys on smartphone.

Main features

Dimensions
18 x 90 x 64 mm - 1 module DIN43880
Material
Box: polycarbonate V0; Front panel: silicone V0
Weight
Approx. 30 g
Sealing
Box and terminal blocks: IP20
Operating conditions
Temperature -40+85 °C, humidity 30..90 uR%
Certifications
CE

Hardware features

ORDERING CODES	2000.35.017
Power supply	Loop Power (2 wires) operating range 6..32 V DC
Analogue inputs	1 x selectable among 0..20 mA, 4..20 mA, 0..10V, 0..4000Ω
Sampling/response time	300 mS / 600 mS
Rejection	50-60 Hz
Analogue output	4..20mA
Output resolution	2 μA
Max transmission failure	0,1% f.s o 0,2°C
Temperature coefficient	< 100 ppm
Cable resistance	Max 20Ω
Over-range output	f.s. + 5°C
Under-range output	f.s. - 5°C
Failure output	selectable between 21,5mA or 3,8mA
Current output protection	30 mA
