PPH600 is a VPN gateway for remote control and/or remote assistance purposes.

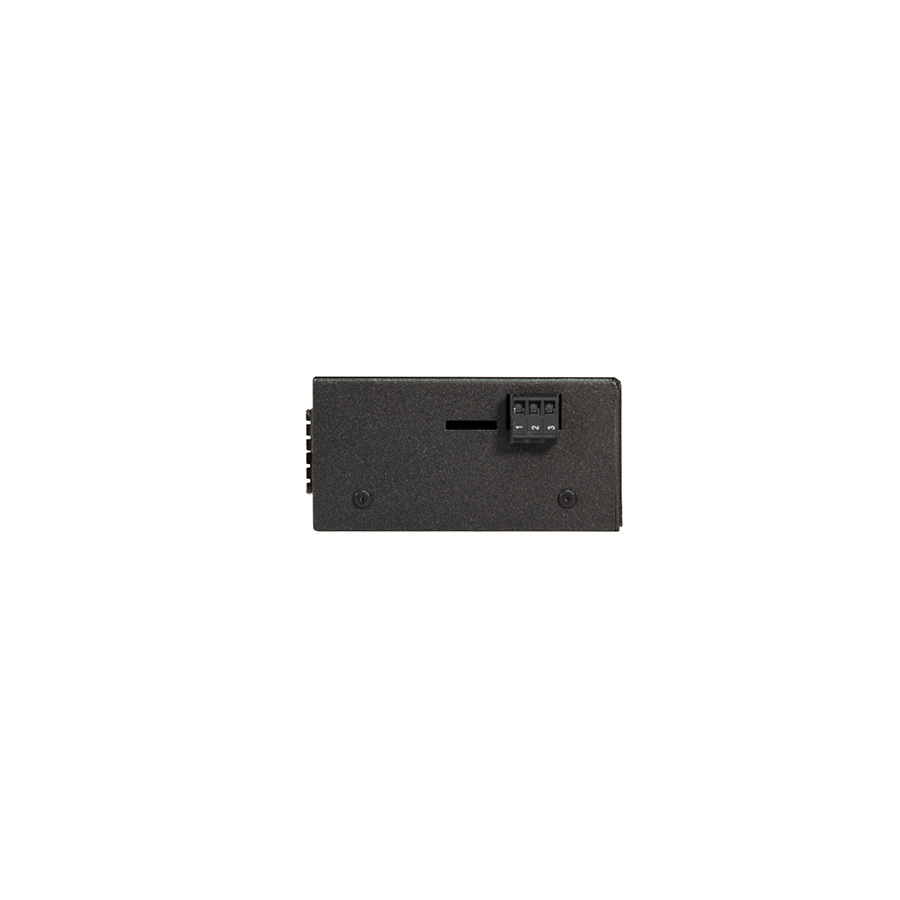

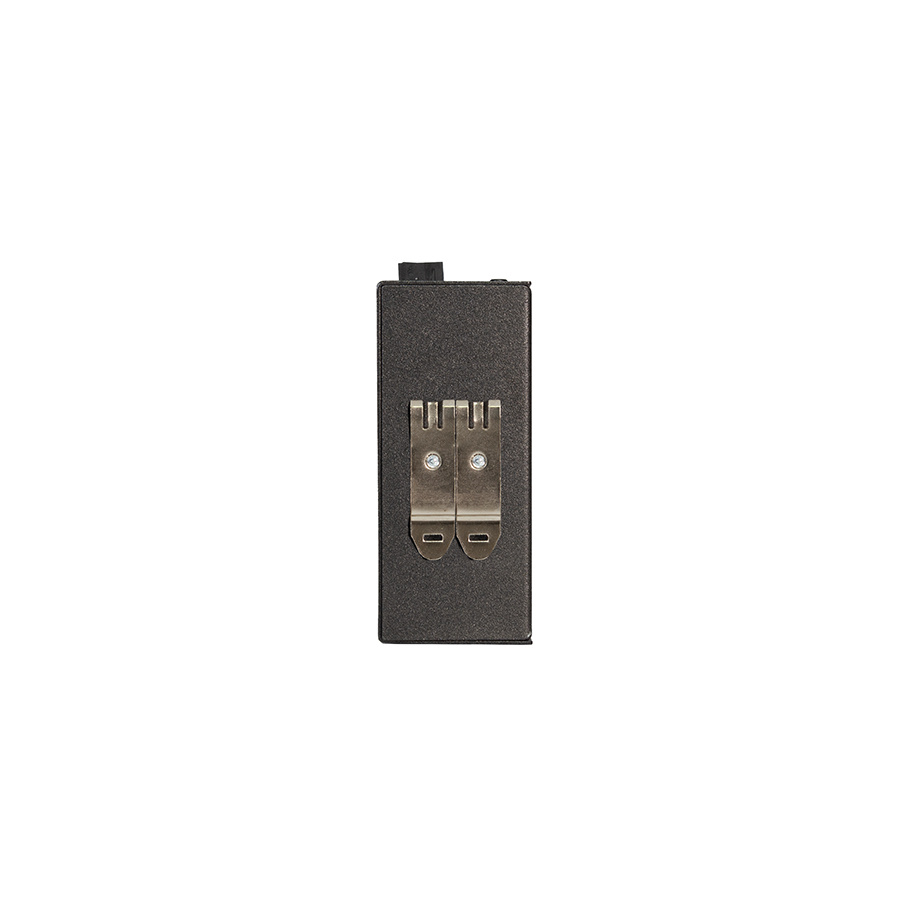

All versions feature a robust metal housing in a vertical configuration to optimise space on a DIN rail and 24Vdc power supply on a terminal block.

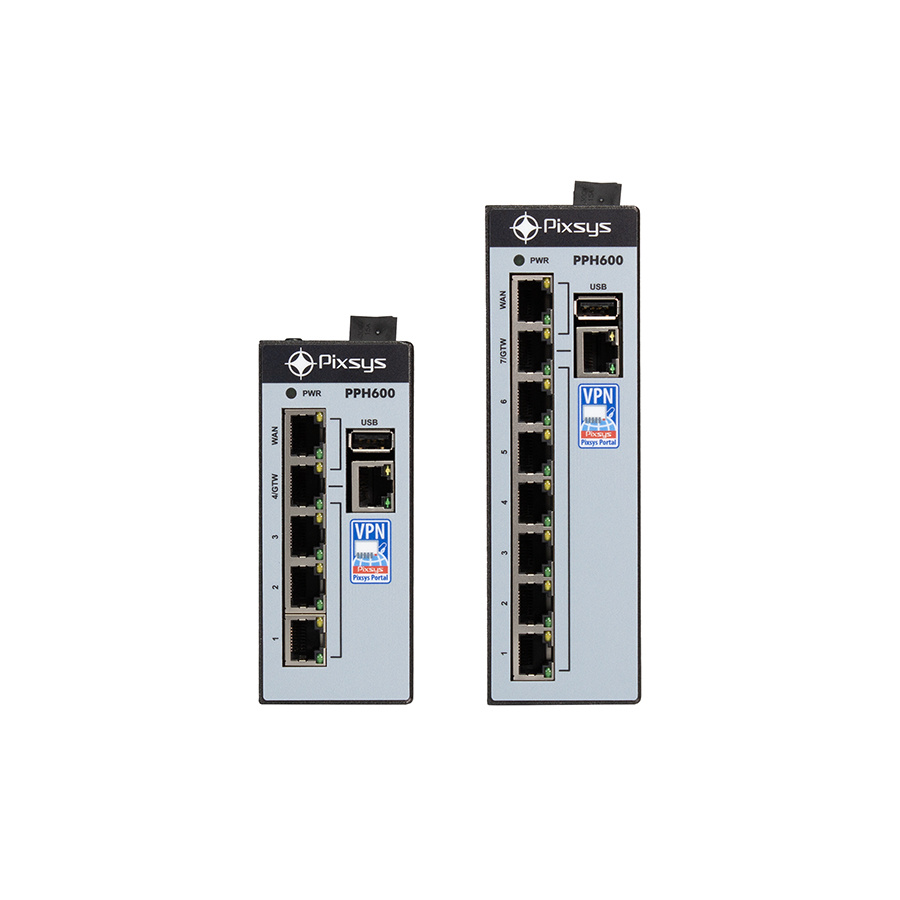

Two versions are available:

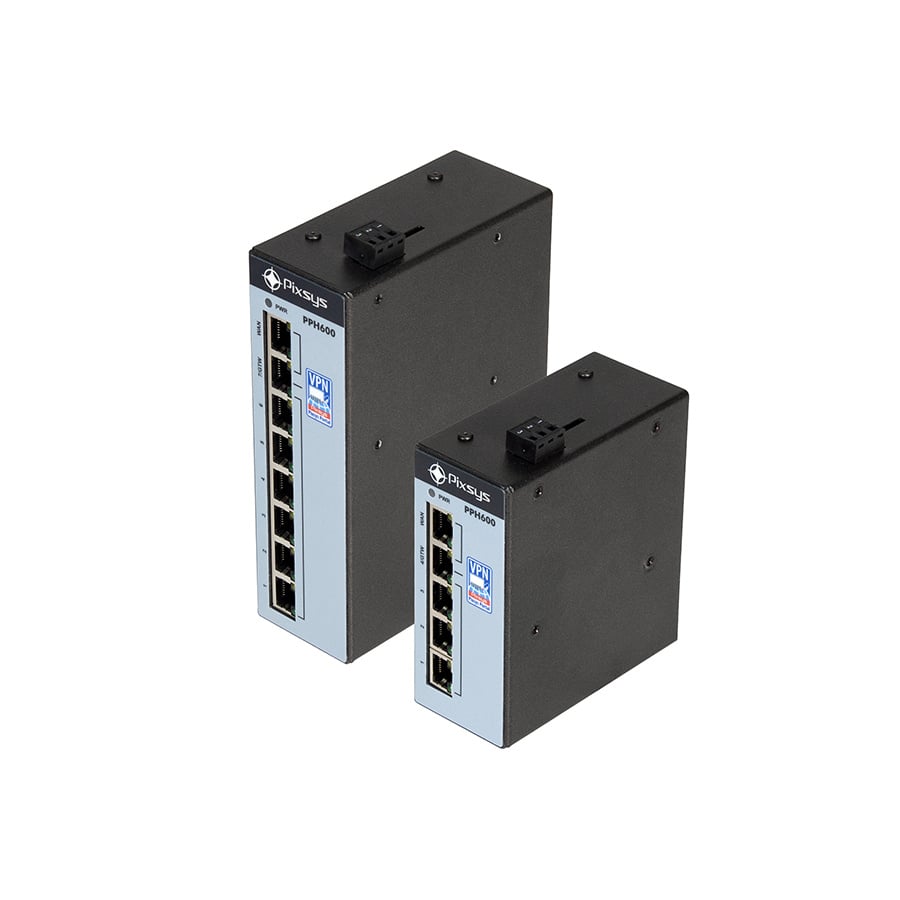

- x0A model consists of a pre-configured Ethernet switch with 3 to 6 LAN ports, 1 WAN port (for Internet access), 1 PLC port (tagged); this is the ideal solution to increase the number of Ethernet ports of Pixsys PL600 and PL700 PLCs and acts as a VPN gateway if the PLCs are equipped with an active PixsysPortal software license

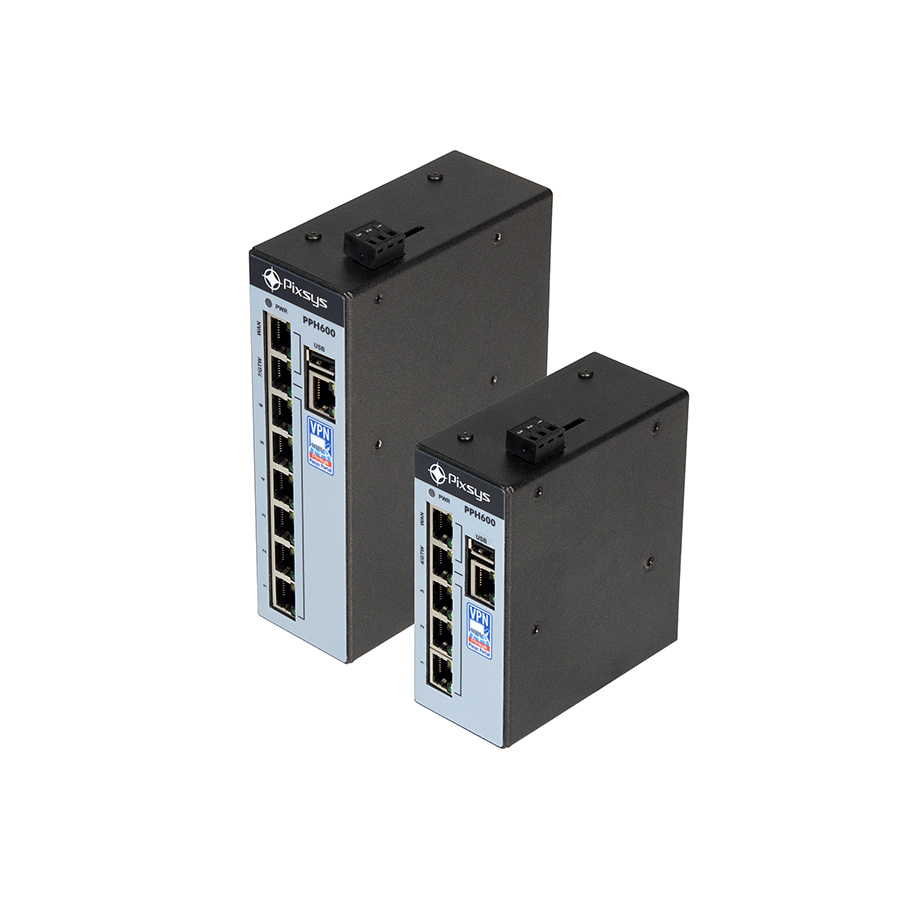

- x1A model natively integrates the PixsysPortal service and is therefore a universal VPN gateway that allows access to any device equipped with an Ethernet connection.
- MaterialsBox: Metal; Front panel: self estinguishing polyester
- SealingBox and terminal blocks: IP20; Terminal blocks extractable
- Operating ConditionsTemperature 0-45 °C, humidity 35..95 uR% (without condensation)
| ORDERING CODES | PPH600-30A | PPH600-60A | PPH600-31A | PPH600-61A |
|---|---|---|---|---|
| Power | 24 V DC ±10% | 24 V DC ±10% | 24 V DC ±10% | 24 V DC ±10% |
| Consumption | 3 Watt | 3 Watt | 3 Watt | 3 Watt |
| Dimensions (mm) | 48 x 105 x 131 | 48 x 115 x 171 | 48 x 105 x 131 | 48 x 115 x 171 |
| LAN ports | 3 | 6 | 3 | 6 |
| WAN ports | 1 | 1 | 1 | 1 |
| PLC ports | 1 | 1 | - | - |
| USB ports | - | - | 1 | 1 |
| Integrated Pixsys Portal | - | - | yes | yes |
- VPNActive Pixsys Portal service for remote desktop connection (VNC), Web Server, FTP Client, remote assistance.

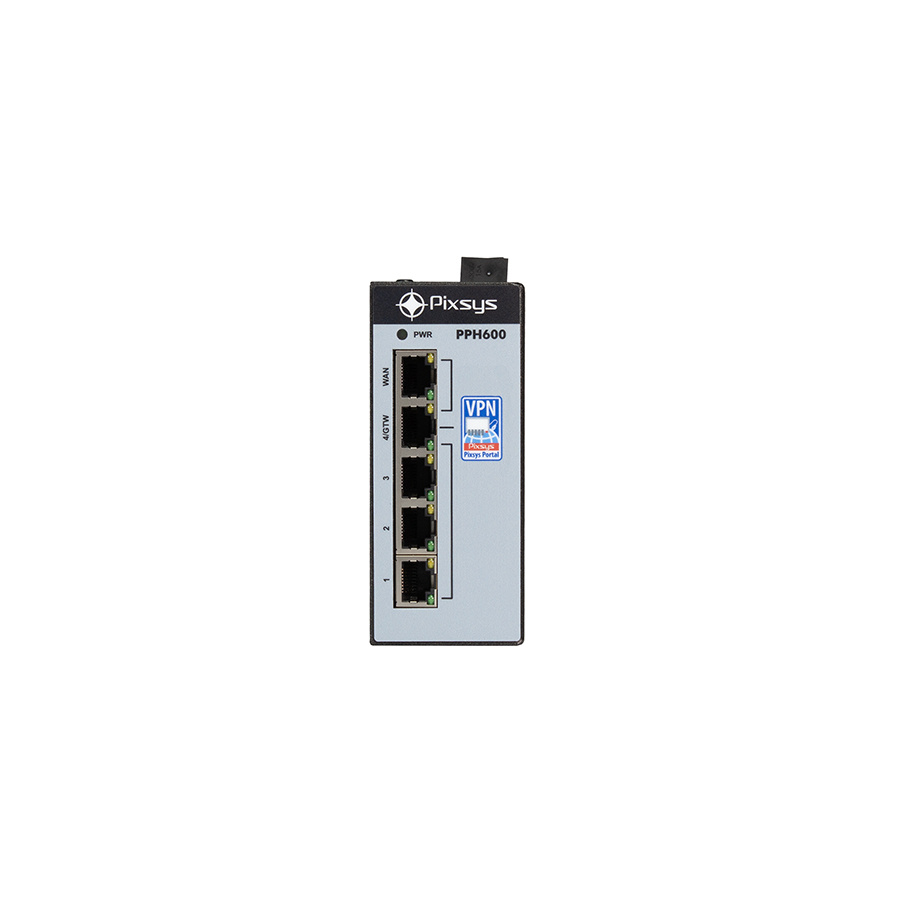

- PPH600-30AETHERNET SWITCH 3LAN 1WAN 1PLC ports 24VDC

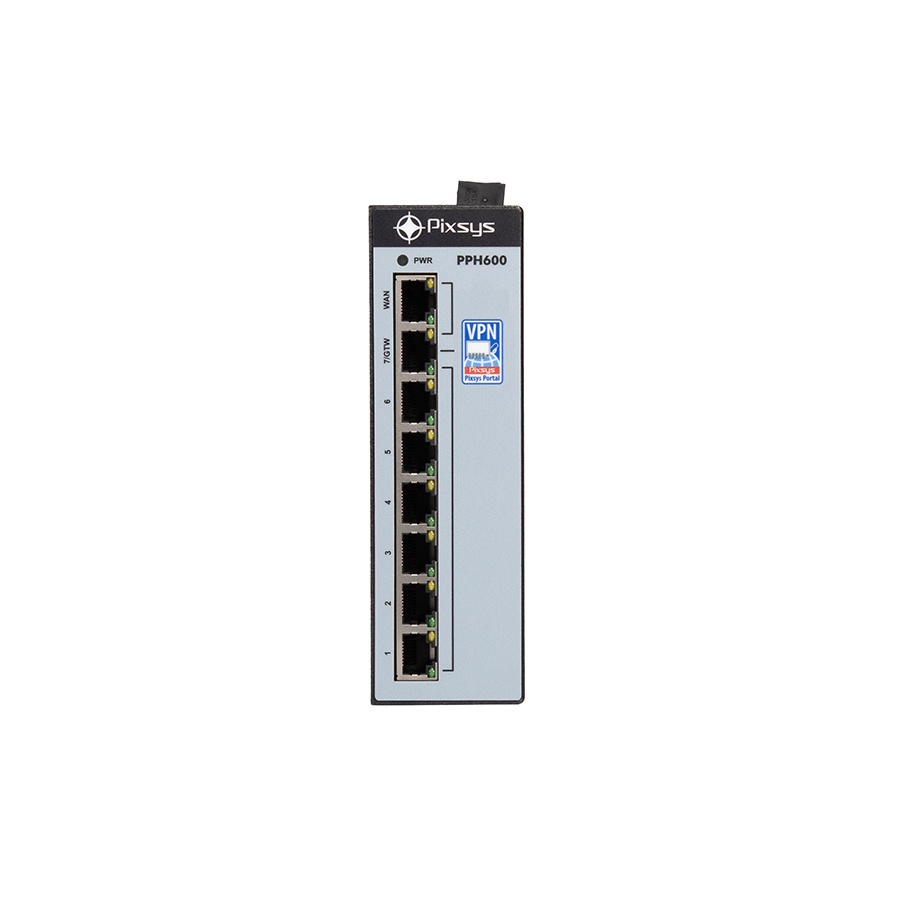

- PPH600-60AETHERNET SWITCH 6LAN 1WAN 1PLC ports 24VDC

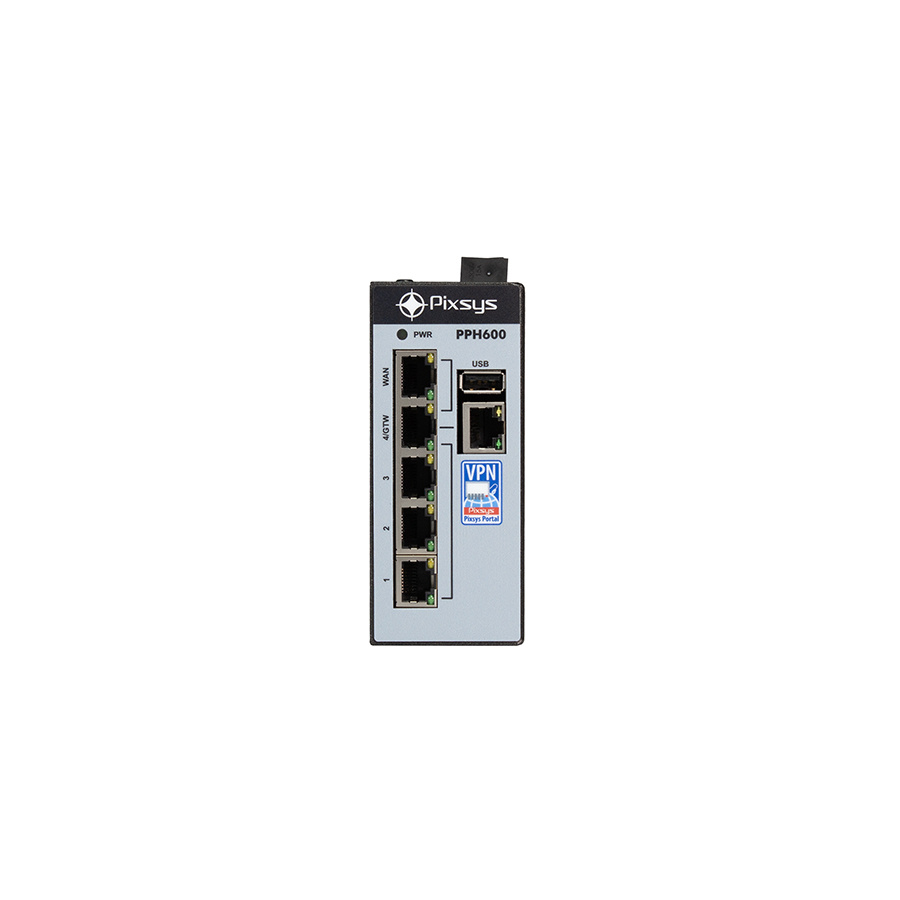

- PPH600-31APIXSYS PORTAL GATEWAY 3LAN 1WAN 1USB ports 24VDC

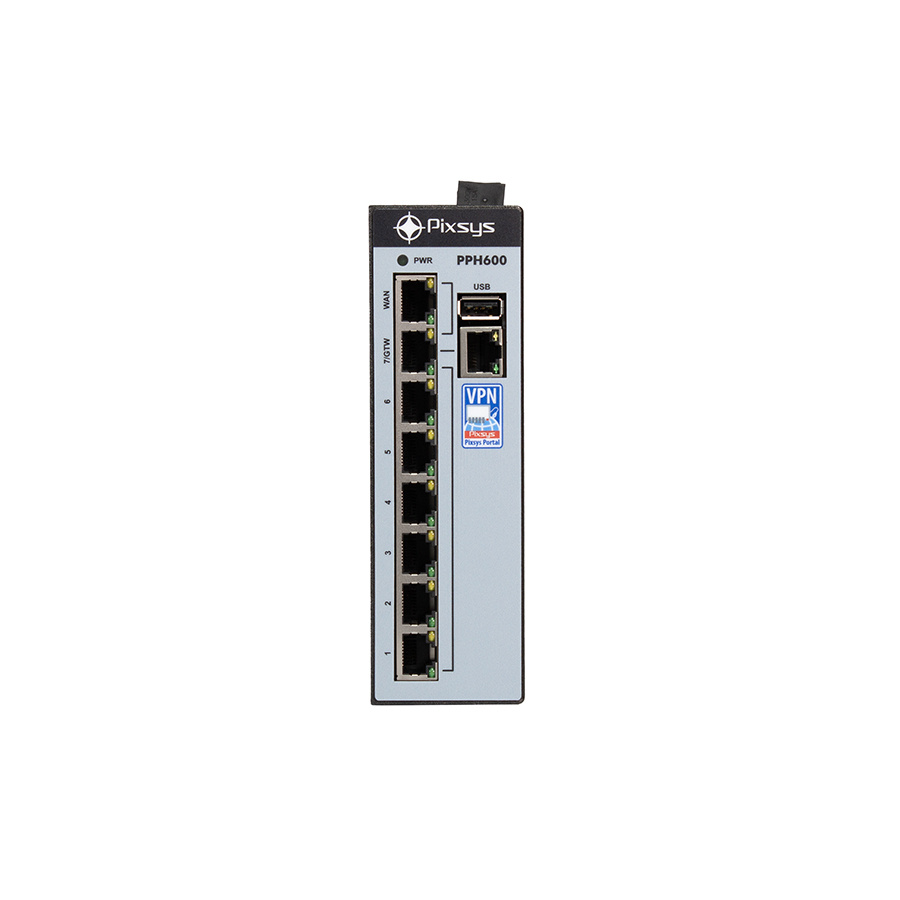

- PPH600-61APIXSYS PORTAL GATEWAY 6LAN 1WAN 1USB ports 24VDC
