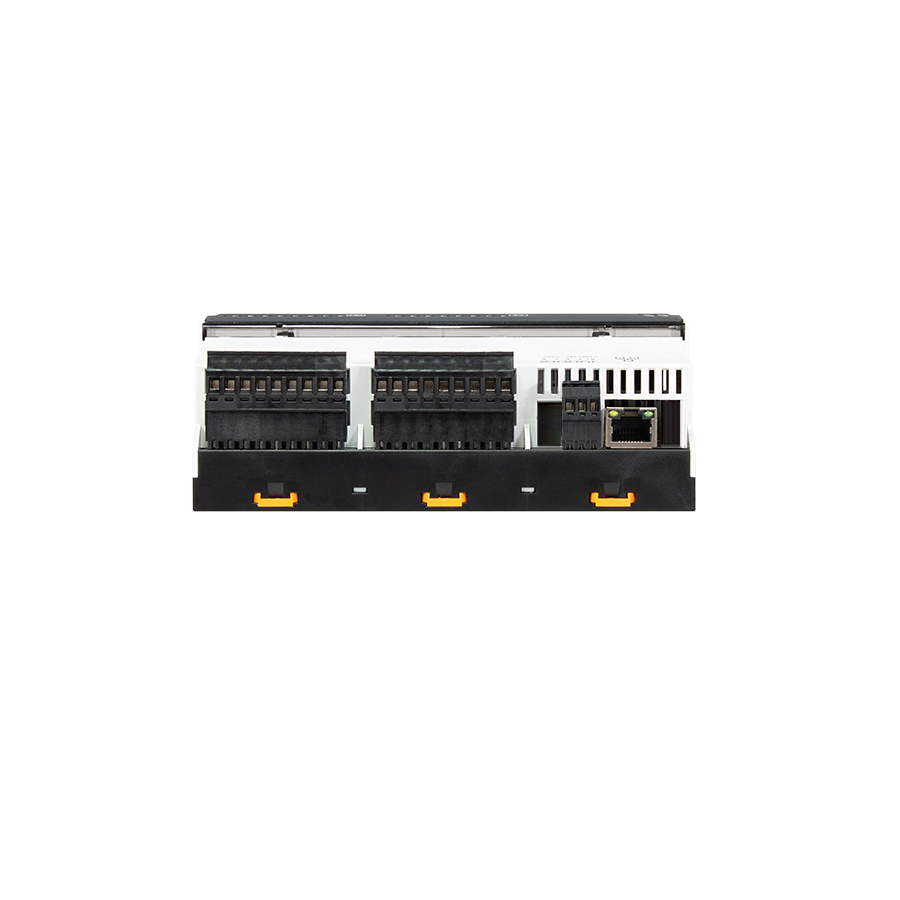

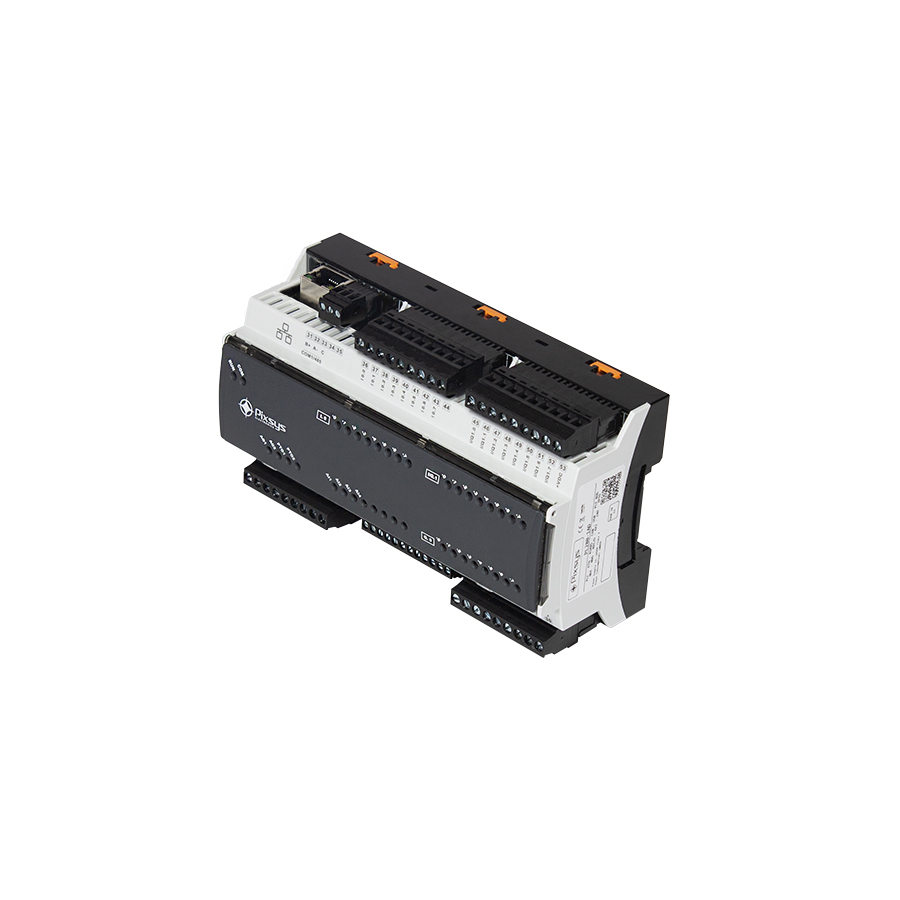

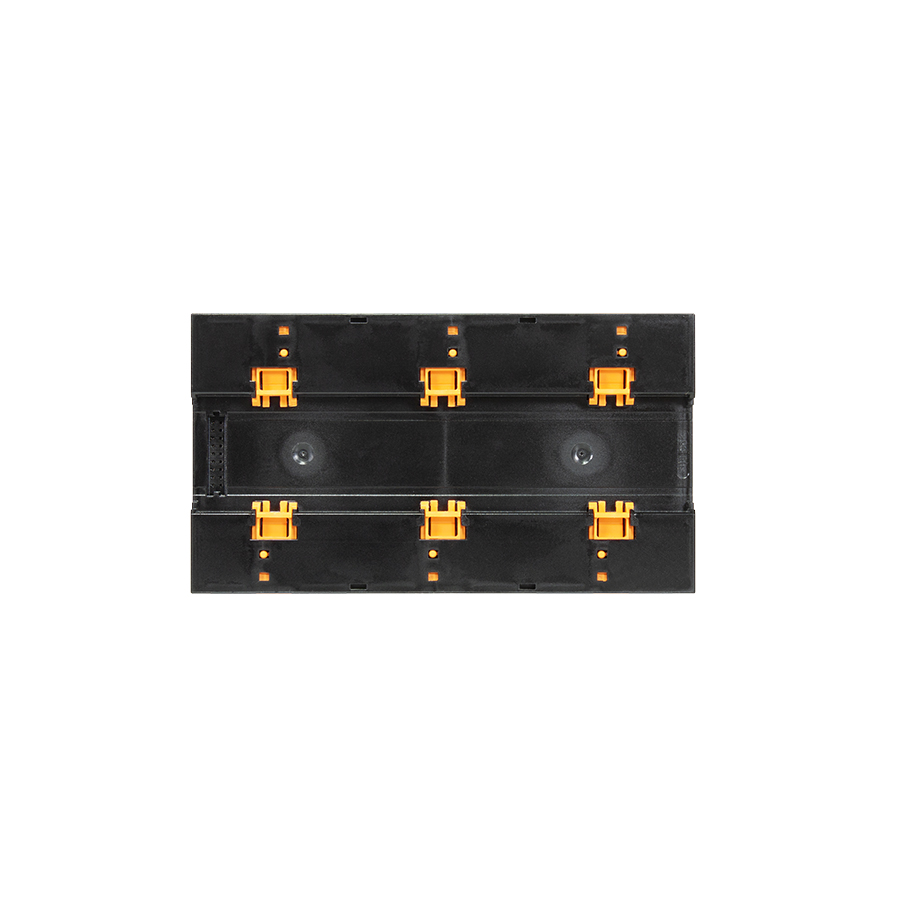

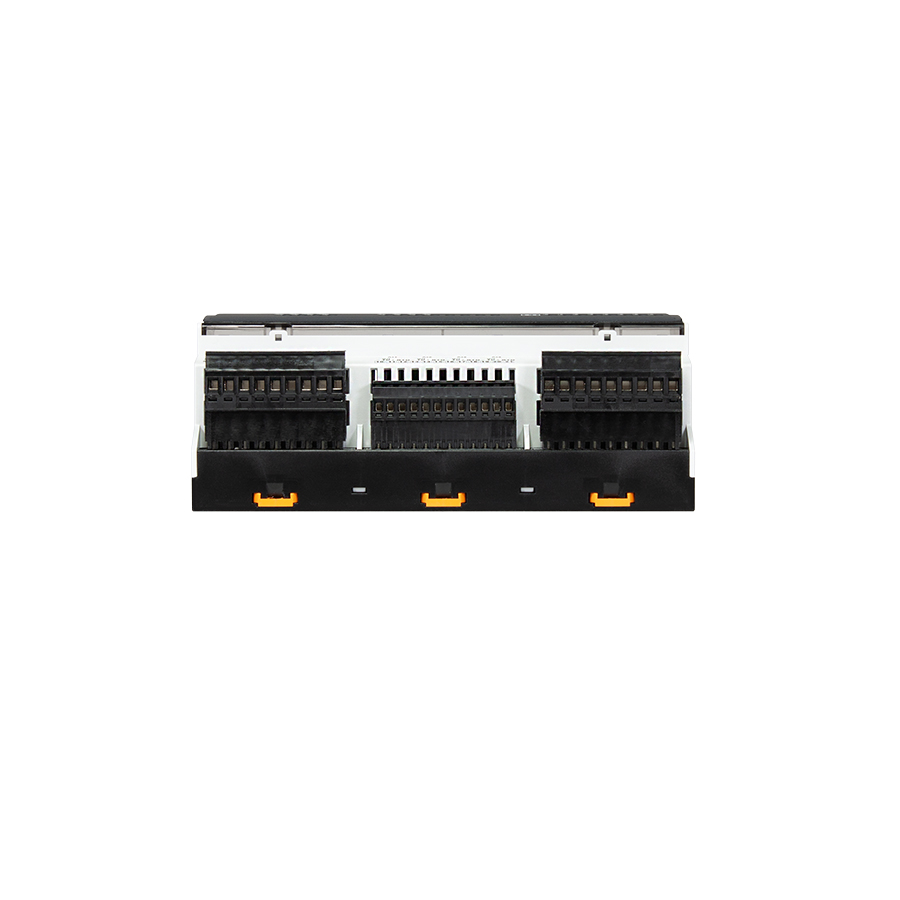

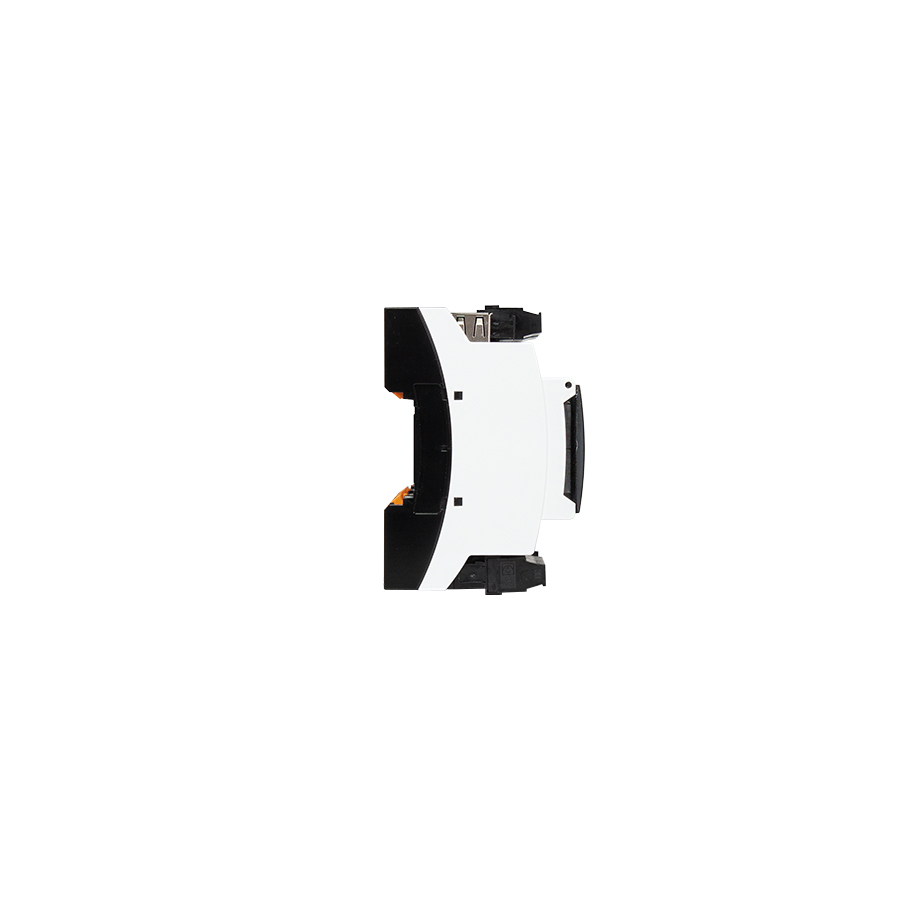

MCM280X is a data acquisition/actuation module featuring programmable analog-digital I/O and Modbus TCP/IP communication interface on Ethernet port.
Designed as an I/O solution for Pixsys PLCs and HMIs, MCM280X module can also be integrated with third-party devices.
Parameters can be programmed using the relevant Modbus TCP/IP registers or MyPixsysLab software application.
The module also integrates an RS485 serial port with Modbus RTU protocol. In Bridge mode, MCM280X operates as a transparent Modbus TCP/IP–RTU gateway, allowing a Modbus TCP/IP master to directly access RTU slaves (including third-party devices) using the module's IP address and the Modbus ID assigned to each connected device.
- Dimensions162 x 90 x 64 mm - 9 DIN43880 modules
- MaterialSelf-extinguishing siliconic rubber V0
- WeightApprox. 380 g
- SealingBox and terminal blocks: IP20
- Operating conditionsTemperature 0..45 °C, humidity 35..95 RH%, Max. altitude: 2000m
- CertificationsCE
| ORDERING CODES | MCM280X-20AD |
|---|---|
| Power supply | 12..24 V DC +/- 10% Class2 |
| Power consumption | 100 Watt/VA |
| Analogue inputs | 4x (Ris.. 16 bit) selectable for: TC type K,S,R,J,T,E,N,B (automatic compensation of the cold junction 0..50 °C, ±0,2% F.S. ±1 Digit F.S.), termoresistances PT100, PT500, PT1000, Ni100, PTC1K, NTC10K, (β 3435K), process signals 0..10 V (54000 points), 0/4..20mA (40000 points), 0..60 mV (16000 points),0..10V, 0..5V, potentiometer 1..150 KΩ (50000 points) |
| Digital inputs | 8 x PNP inputs 12..24 Vdc |
| Digital multifunction channels | 8 x PNP inputs 12-24 Vdc or static PNP outputs 12-24 Vdc individually selectable |
| Digital outputs | 8 x static outputs 12-24Vdc 700 mA max 2A Tot. |
| PTO outputs | 2 x outputs configurable ON/OFF, PWM, 12-24Vdc (Max: 20mA, Max freq.: 200kHz) |
| Encoder / counter inputs | 4 x 32-bit encoder/counter - max. 100KHz overlapped to PNP digital inputs |
| Analogue outputs | 2x Selection 4..20 mA (40000 points± 0,2% F.S.) or 0..10 V DC (40000 points ± 0,2% F.S.) |
| Serial communication | 1 x RS485 with Modbus RTU protocol, with transparent Modbus TCP–RTU gateway/bridge function, maximum capacity 32 nodes. |
| Ethernet port | 1 x RJ45 Fast Ethernet 10/100 Mbit |
- Communication protocolsModbus TCP/IP
- Programming communication parametersModbus registers, MyPixsysLab desktop application
- MCM280X-20ADEXP/PLC 9 MODULES 161X90 - MODBUS TCP 8DI-8DO-8DI/O-4AI-2AO-2PTO-ETH-RS485
