IMW710 (7") / IMW820 (12") Pixsys devices monitoring and supervising kit

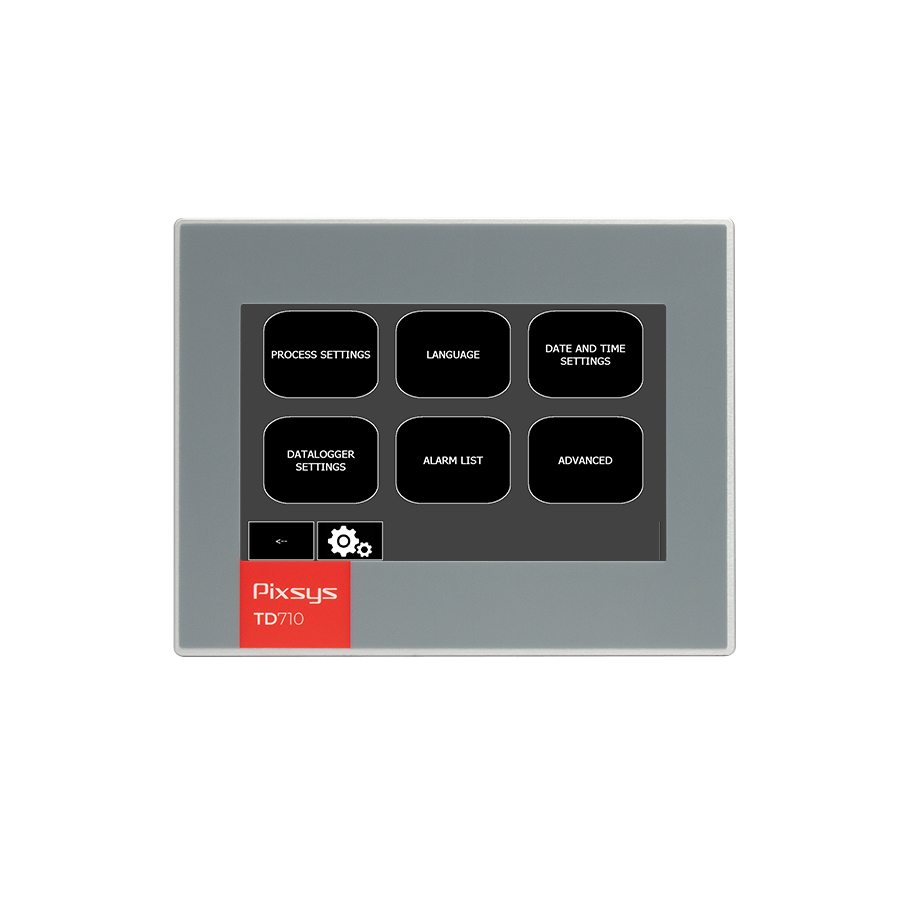

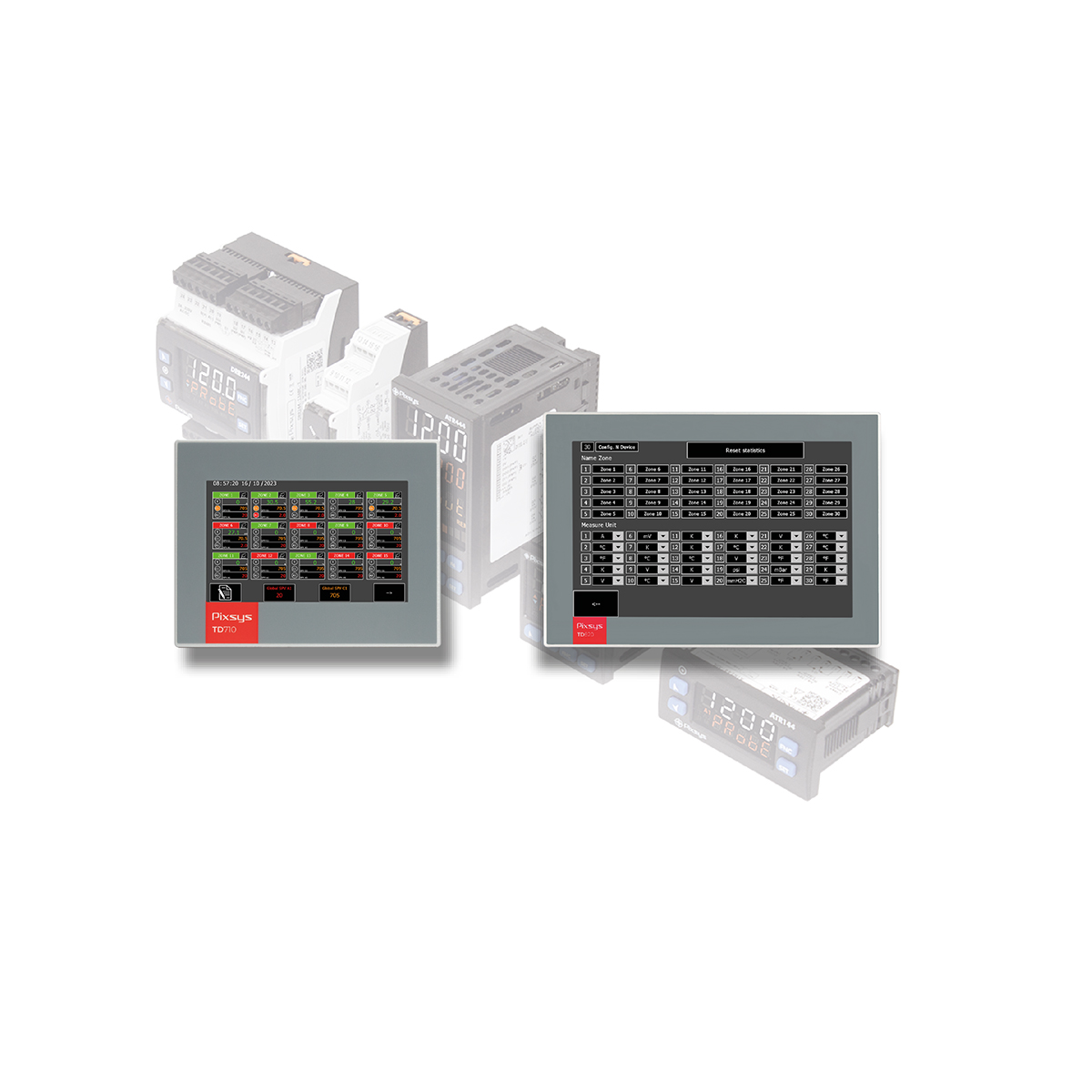

iModView is a solution for monitoring and supervising Pixsys ATR/DRR/STR series controllers/indicators on Pixsys TD710 (7") or TD820 (12") touchscreen panel.

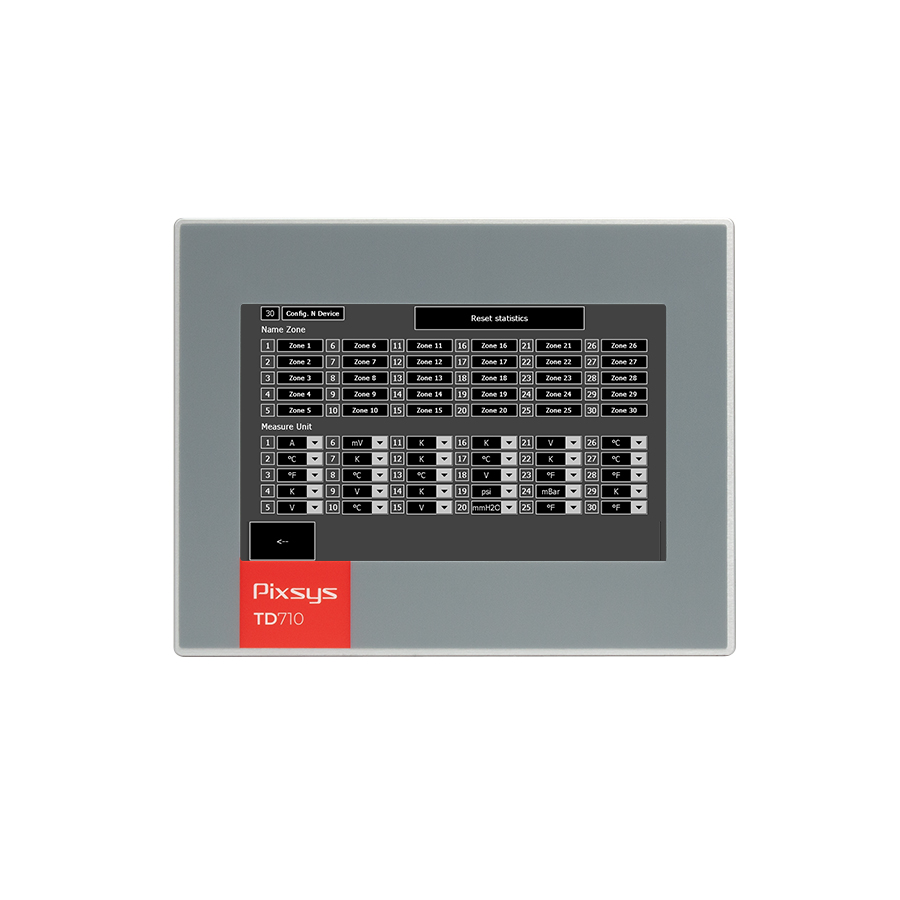

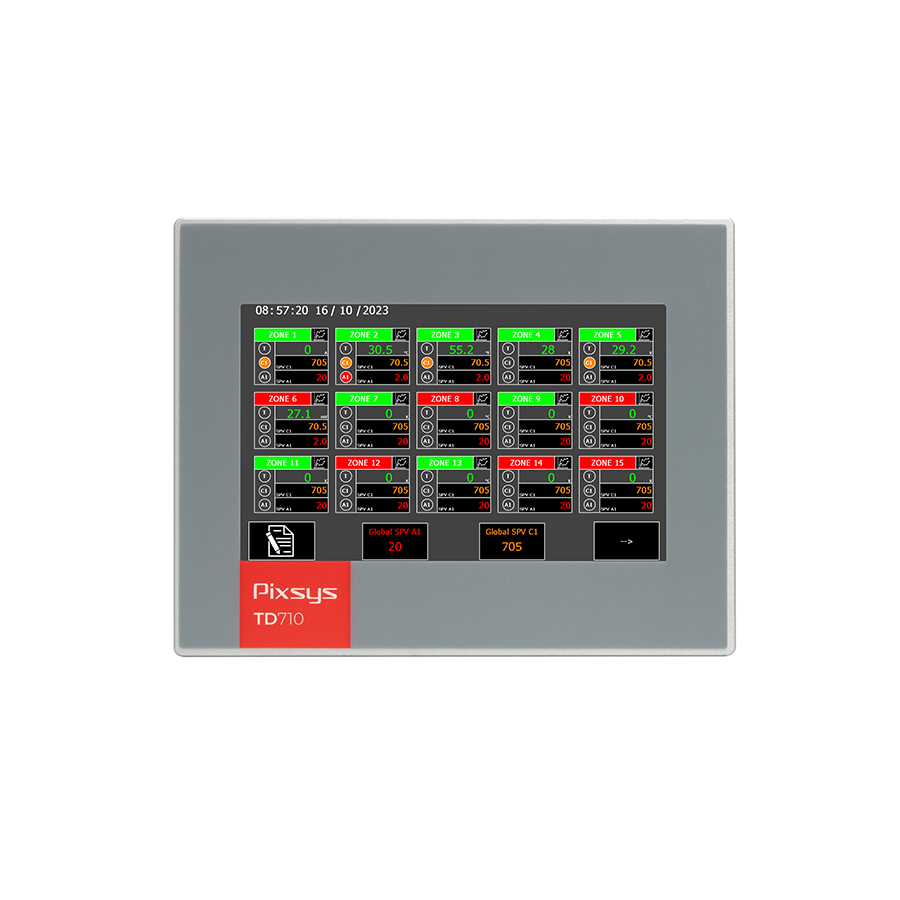

Up to 30 devices/zones can be connected, displayed on two pages of 15 each. For each connected device, the main status window displays the value read by probe input with its measuring unit, the setpoint value and status of the command output (C1), the value and status of the alarm/auxiliary output (A1), the status of Tuning , the graphical representation of the process trend over the last 24 hours. The recorded values can be exported in .CSV format to USB or by FTP connection . START/STOP status for each connected device is also managed from the main screen.

Connected Pixsys devices must be equipped with RS485 serial port and can belong to different series. Parameterization of devices is not managed by the iModView software, but will have to be set on the individual device by front keyboard, via MyPixsys Lab software, or via MyPixsys App on smartphone.

It is possible to write on all connected devices the same command or alarm setpoint value (defined as "Global") and to display on the main screen an off-line alarm for individual devices as well as any device faults. Detailed alarm management will have to be programmed and appropriately wired on the single devices.

The software is available in Italian and English.

Upon request IMW software makes available advanced features that meet the requirements of Industry 4.0 :

VNC and HTML5 WebServer services for remote control, even from a PC outside company network, via VPN created by PixsysPortal service (license code 2400.38.001); sharing of instantaneous process values acquired from controllers, setpoints, alarm status and any anomalies present, for easy integration with MES.

Main features

Dimensions
TD710-A-2ETH: 204 x 160 x 35 mm (panel cut-out 181 x 144 mm); TD820-A-2ETH: 317 x 220 x 35 mm (panel cut-out 302 x 206 mm)
Material
Front panel: aluminium alloy (billet), polyestere mask. Housing: 10/10, Ral 7016
Weight
TD710-A-2ETH: approx. 937 g; TD820-A-2ETH: approx. 1800 g
Sealing
Front panel: IP65, Housing and terminal blocks: IP20
Operating conditions
Temperature 0-50 °C, humidity 10..90 RH% (non-condensing)
Certifications
CE, UL

Hardware features

ORDERING CODES	TD710-A-2ETH	TD820-A-2ETH
Power supply	24 V AC/DC ±15% 50/60 Hz - galvanically isolated 2,5kV	24 V AC/DC ±15% 50/60 Hz - galvanically isolated 2,5kV
Power consumption	6,5 Watt / VA	8,5 Watt /VA
Processor	ARM Cortex A8 @ 1 GHz	ARM Cortex A8 @ 1 GHz
Memory	eMMC 2 GB / RAM 512 MB DDR3	eMMC 2 GB / RAM 512 MB DDR3
Display	LCD TFT touch screen 7", resolution 800x480 pixel - 16:9 format, 260k colours (16 bit), 280 cd/m², lifetime typ. 20000h @ 25°C, resistive touch 4 wires integrated	LCD TFT touch screen 12.1", resolution 1280x800 pixel - 16:9 format, 16.7M colours (24 bit), 400 cd/m2, lifetime typ. 50000h @ 25°C, resistive touch 4 wires integrated
Clock	Real-Time clock with Back-up battery	Real-Time clock with Back-up battery
Serial communication	RS485 (1200..115200 Baud) opto isolated	RS485 (1200..115200 Baud) opto isolated
CAN	CAN (50K..1Mbit) opto isolated	CAN (50K..1Mbit) opto isolated
Ethernet	2x 10 / 100 Mbit/s - separated MAC address	2x 10 / 100 Mbit/s - separated MAC address
USB	1x USB 2.0	1x USB 2.0

Software features

Supported devices
ATR124-AD-T, ATR124-ABC-T, ATR144-AD-T, ATR144-ABC-T, ATR244-12ABC-T, ATR444-14ABC-T, DRR244-13ABC-T, ATR621-13ABC-T, DRR450-12A-T128, DRR460-12A-T128, STR551-12ABC-12A-T128R

Order Codes

IMW710-1
KIT HMI 7" - SUPERVISOR - 30 ZONES
IMW820-1
KIT HMI 12" - SUPERVISOR - 30 ZONES
