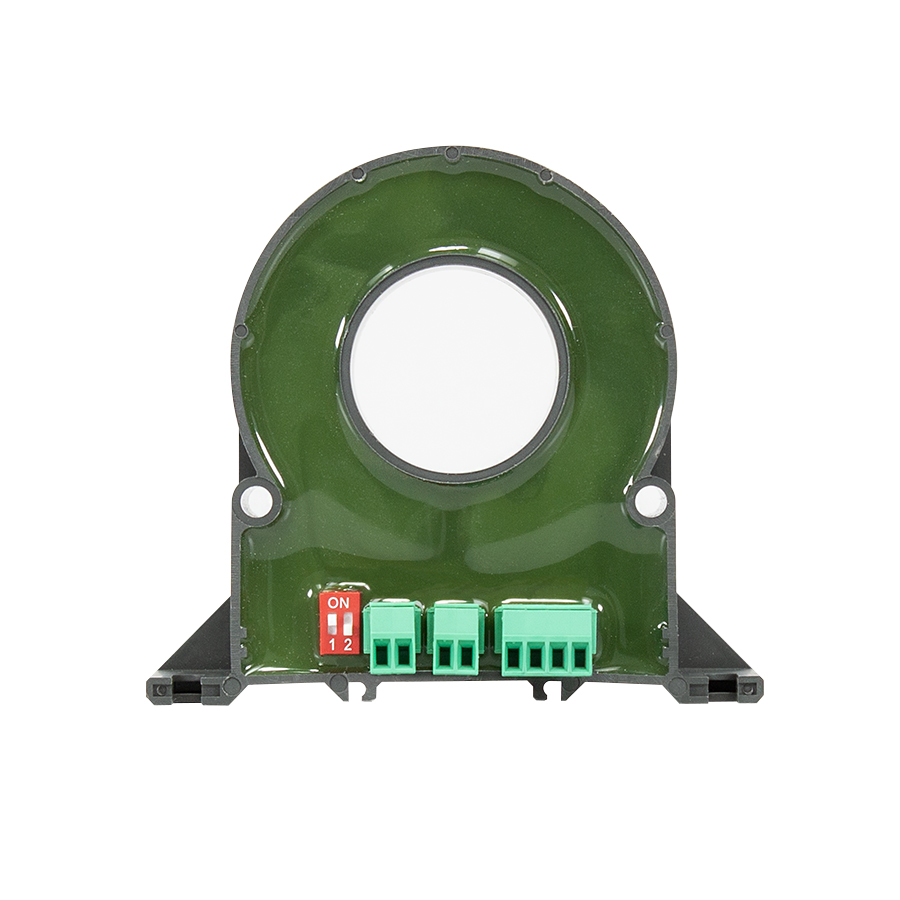

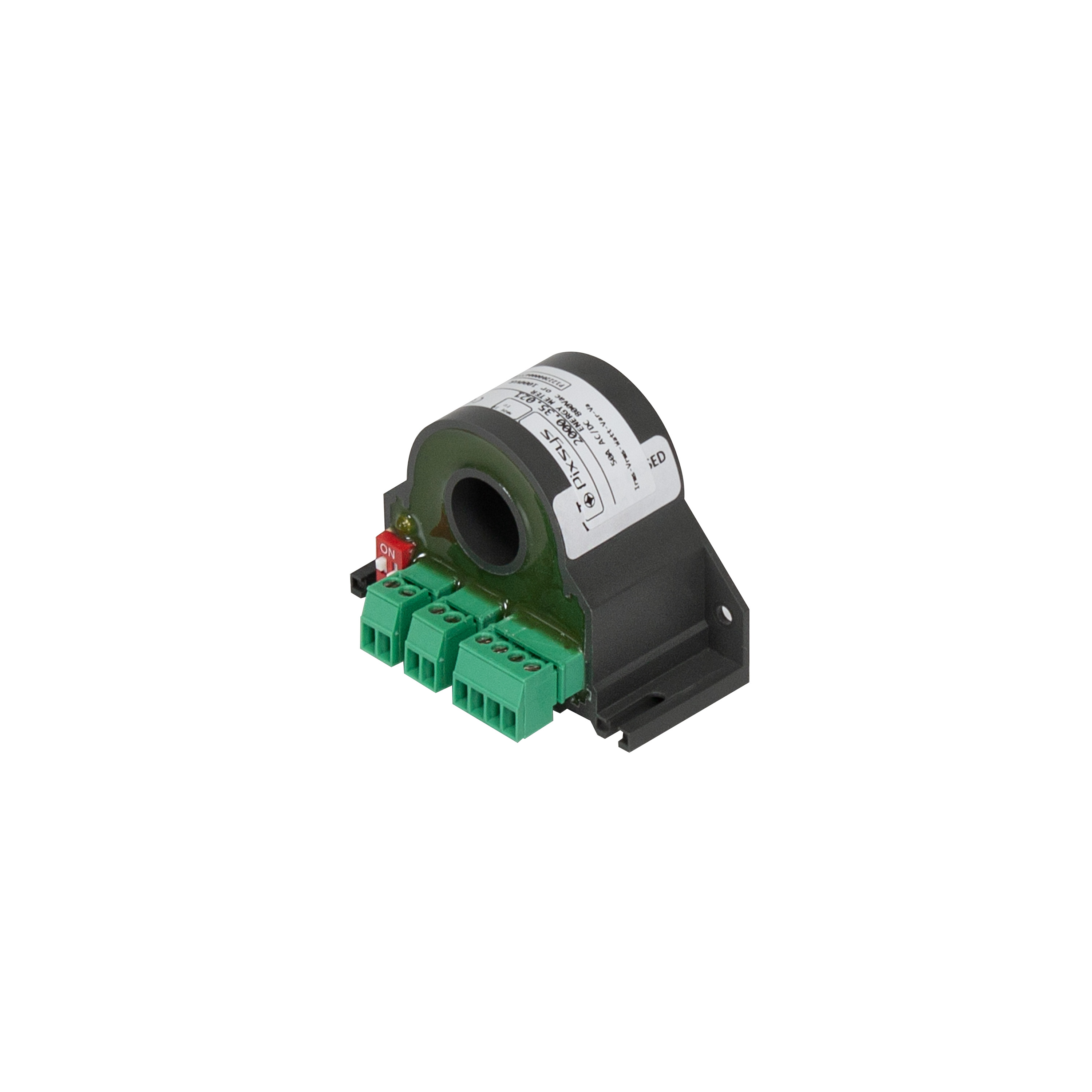

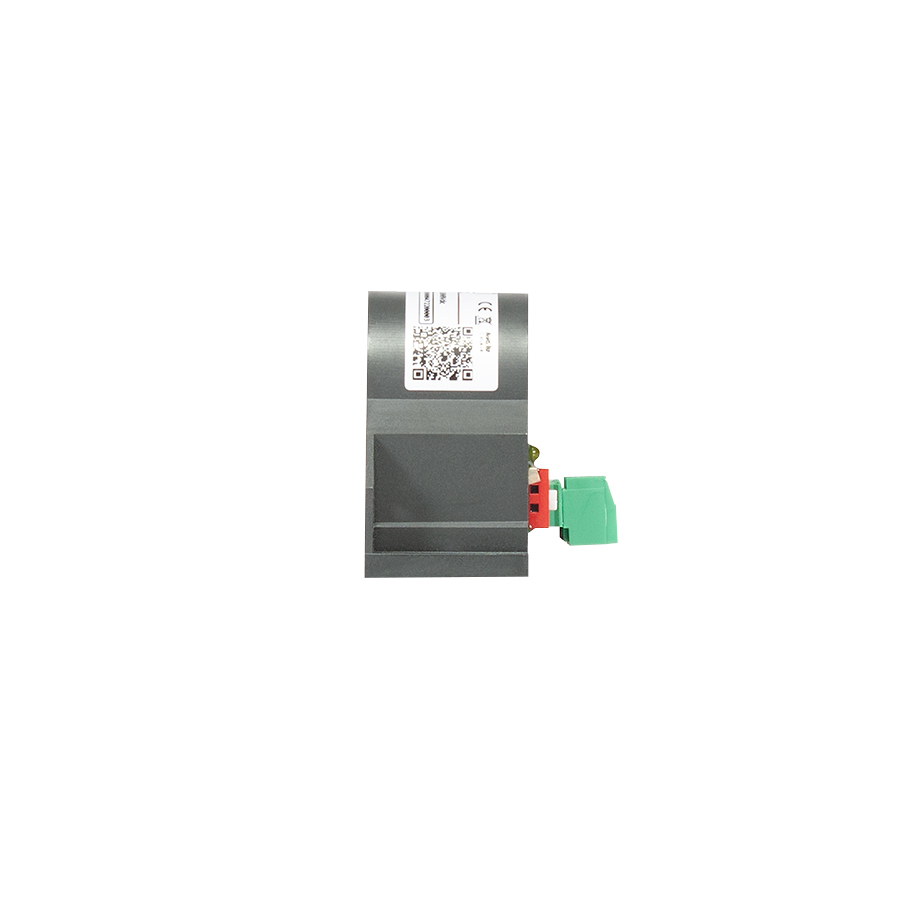

The 2000.35.021/036 are a single-phase Energy / Power Meter capable of measuring AC/DC TRMS current and voltage. The isolation for the input voltage is 4kV.
The following are available via the RS485 Modbus output: I rms, V rms, I pk, V pk per phase, active power ( W ), reactive power (VAR) and apparent power (VA) per phase and total. Frequency, Power Factor, total and per phase (Inductive/Capacitive), Energy ( kWh) total and per phase, Bidirectional Energy (kWh), positive and negative per phase and total Active and Reactive Energy (kVARh), Inductive/Capacitive.
The devices are configurable via the RS485 port or on-board dip-switch.
- Dimensions46x 63x 26 mm (without terminal blocks)
- MaterialGrey PBT, epoxy resin filling
- WeightApprox. 80 g
- SealingBox and terminal blocks: IP20
- Operating conditionsTemperature -15 +65 °C, humidity 10..90 uR%
- CertificationsCE
|
ORDERING CODES |
2000.35.021 |
2000.35.036 |
|---|---|---|
|
Power supply |
9..30 V DC |
|
|
Consumption |
1,3 Watt/VA |
|
|
Measurement |
Irms, Vrms, Watt, Var, Va, Vpk, Ipk, Frequency, Cosφ, Energy bidirectional, THD |
|
|
Voltage |
Voltage, Current, Active Power, Reactive Power, Apparent power:< 0,5% F.S. Frequency: +/- 0,1 HZ. ENERGY: +/- 1% of reading. Vpeak, I peak: +/- 5% f.s. |
|
|
Measuring range |
up to 50 A |
up to 300 A |
|
Working frequency |
1..400 Hz |
|
|
Sampling rate |
11000 samples per second @ 50 Hz |
|
|
Input impedence |
400 KΩ |
|
|
Serial communication |
RS485 (1200..115200 Baud) |
|
- 2000.35.021SINGLE-PHASE NETWORK ANALYSER RS485 MODBUS 50A AC/DC 800VAC - 1000VDC
- 2000.35.036SINGLE-PHASE NETWORK ANALYSER RS485 MODBUS 300A AC/DC 800VAC - 1000VDC
