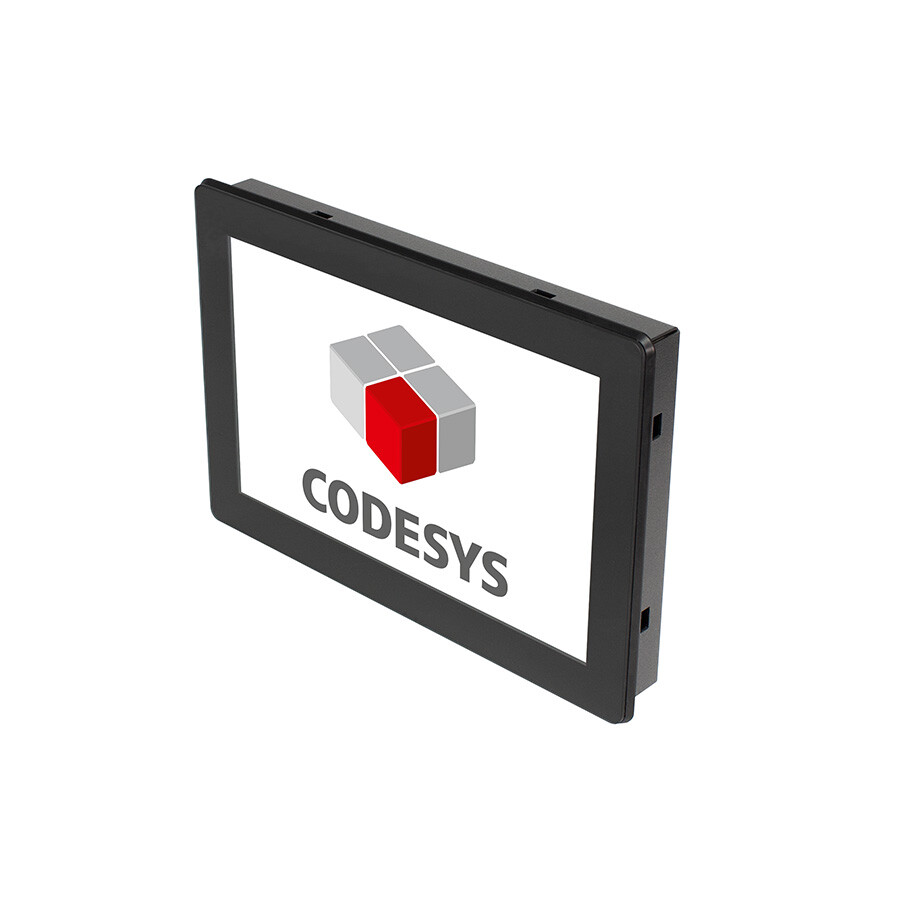

Capacitive Touch screen 1280x 800 - widescreen
TC620 operator panel integrates CODESYS v. 3.5 runtime on Linux Yocto operating system. Docker functionality allows parallel activation of other applications.
The wide range of fieldbuses supported by Codesys, as well as the OPC UA standard, provides extensive connectivity and application flexibility.
Licensing relies on a modular approach based on the number of cores that can be activated, the visualization option (WebVisu or TargetVisu) and any additional functionality required (e.g., SoftMotion, CNC).

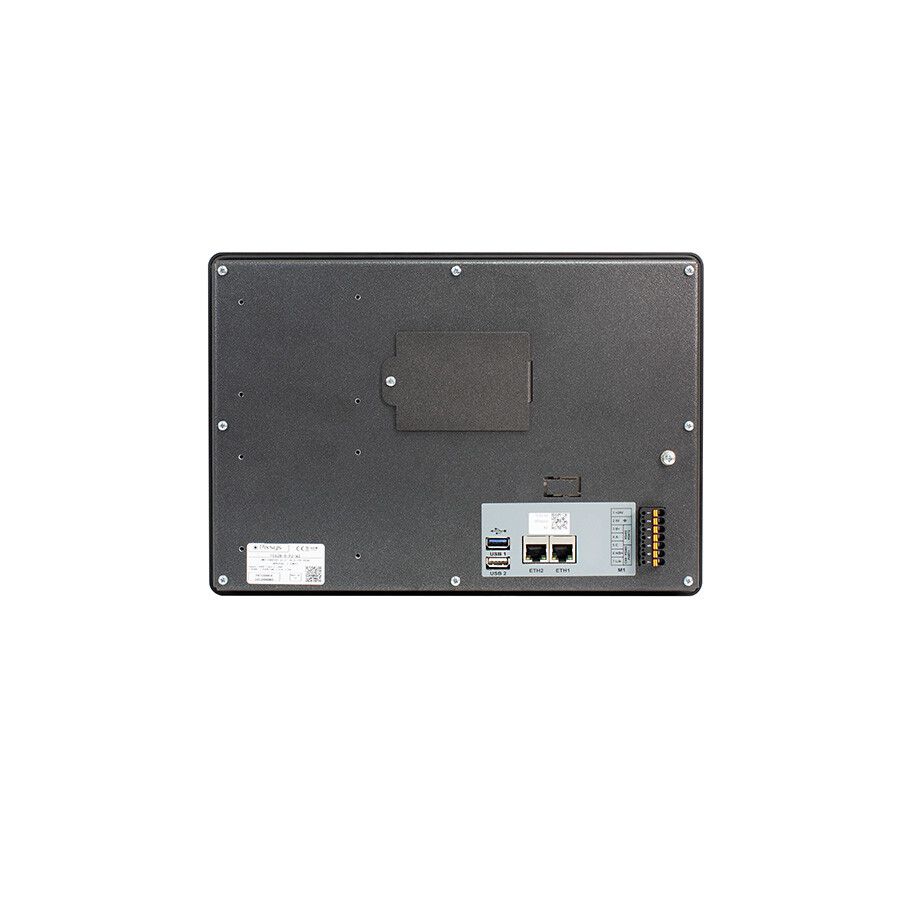

Connectivity includes two 10/100 Ethernet ports with separate MACs in order to allow separation between machine/plant network and enterprise network (management, Industry 4.0 , Internet access) in addition to RS485 serial and CANOpen.
VPN connection via pre-installed Pixsys Portal software service also allows access to the plant subnetwork (passthrough) for remote control and/or remote assistance purposes.

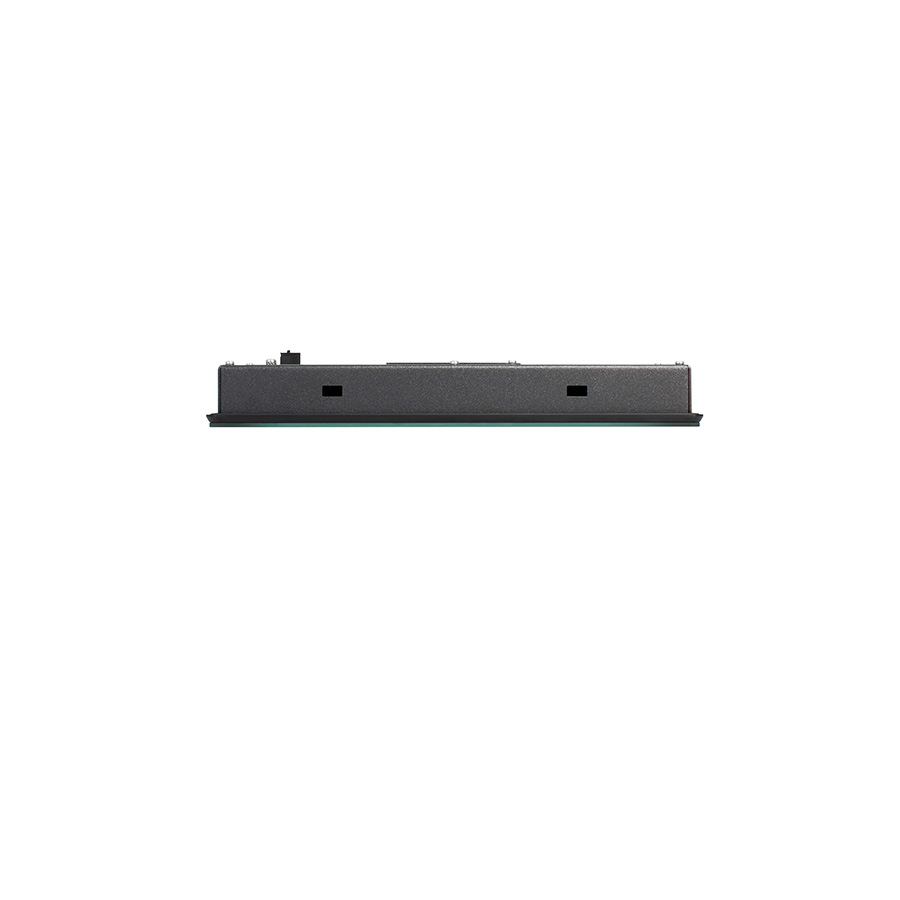

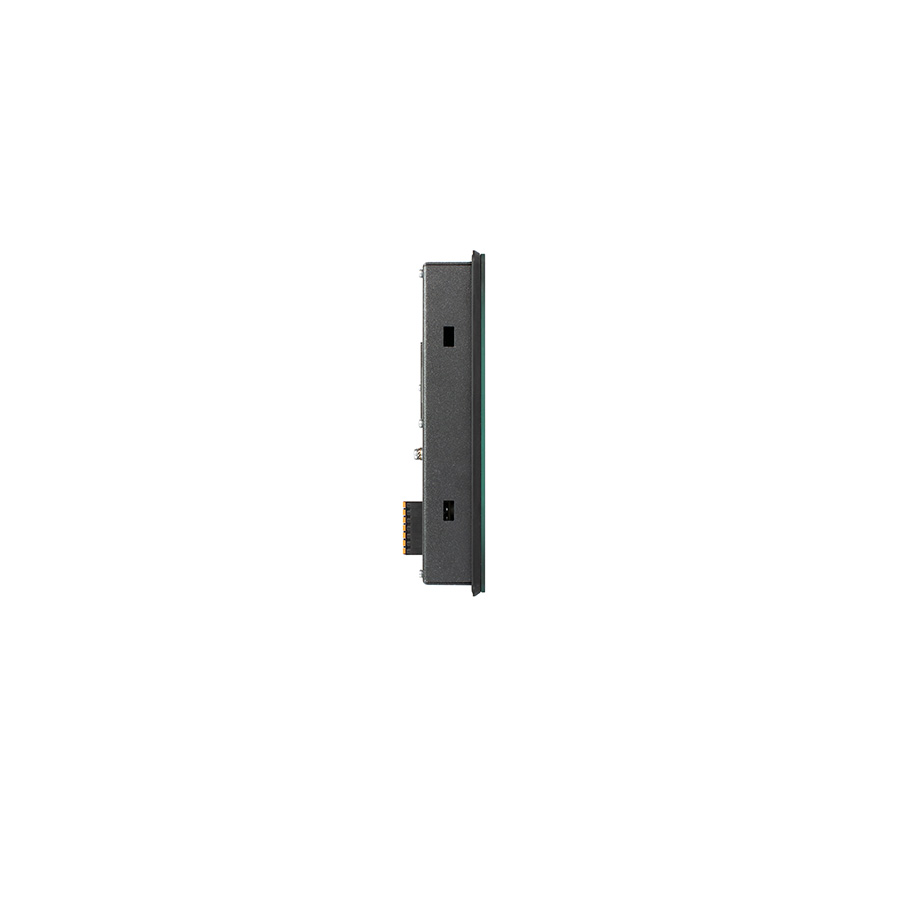

Like the entire range of Pixsys touchscreen interfaces, the panel features a robust mechanical concept made of metal and aluminum.
- Dimensions (L x H x P)317 x 220 x 43 mm (panel cut-out 304 x 208 mm)
- MaterialFront panel: iron glass 3mm on black alluminum alloy frame. Housing: metal 10/10, Ral 7016 painted
- WeightApprox. 1800 g
- SealingFront panel: IP65, Housing and terminal blocks: IP20
- Operating conditionsTemperature 0-50 °C, humidity 10..90 RH% (non-condensing)
- CertificationsCE
|
ORDERING CODES | TC620-A-P2-W2, TC620-A-P2-T2 e TC620-A-P2-WT4S |
|---|---|
|
Power supply |
24V DC ±10% 50/60 Hz - galvanic isolation 2,5kV |
|
Power consumption |
33 Watt/VA |
|
Processor | (P2) Rockchip PX30 4xA35 @ 1.3GHz, ARM v8, 64-bit SoC, GPU Mali G31 (P3) Rockchip RK3399 2xA72 @2GHz + 4xA53 @1.4GHz, ARM v8, 64-bit SoC, GPU Mali T864 (P4) Rockchip RK3588 4xA76 @2.4GHz + 4xA55 @1.8GHz, ARM v8, 64-bit SoC, GPU Mali G610 |
|
Memory |
(P2-P3) eMMC 16GB, RAM 2GB (P4) eMMC 32GB, RAM 4GB |
| UPS | Built-in UPS for persistent variables |
|
Clock |
Real-Time clock with Back-up battery, CR2032 Lithium / Manganese Dioxide (Li/MnO2) |
|
Display |
LCD TFT touch screen 12.1", 1280x800 pixel - 16:10, 16.7M colors (24 bit), 400 cd/m2, lifetime typ. 50000h @ 25°C, capacitive touch |
|
Ethernet |
2x 10 / 100 Mbit/s- separate MAC addresses |
|
USB | (P2) 2x USB 2.0 (P3-P4) 1x USB 3.0, 1x USB 2.0 |
- Operating systemLinux Yocto
- Communication protocolsEtherCAT Master, PROFINET Device, EtherNet/IP Adapter, Modbus RTU Master and TCP Master/Slave, CANopen Master, OPC UA server, MQTT client (encryption supported)
- SoftMotionCodesys SoftMotion libraries (only on -S version)
- PLC logic programmingCodesys V. 3.5.19.60 and later
- Graphical interface programmingCodesys WebVisu (-W), Codesys TargetVisu (-T), Codesys TargetVisu + WebVisu (-WT)
- VPNPixsys Portal service (pre-installed demo version) for remote desktop connection (VNC), Web Server, FTP Client, remote assistance.
- TC620-A-P2-W2HMI CODESYS 12.1" 16:9 CTP PX30 - WEBVISU 2 CORES
- TC620-A-P2-T2HMI CODESYS 12.1" 16:9 CTP PX30 - TARGETVISU 2 CORES
- TC620-A-P2-WT4SHMI CODESYS 12.1" 16:9 CTP PX30 - WEBVISU TARGETVISU 4 CORES SOFTMOTION
