    EPL200 | Open frame PLC


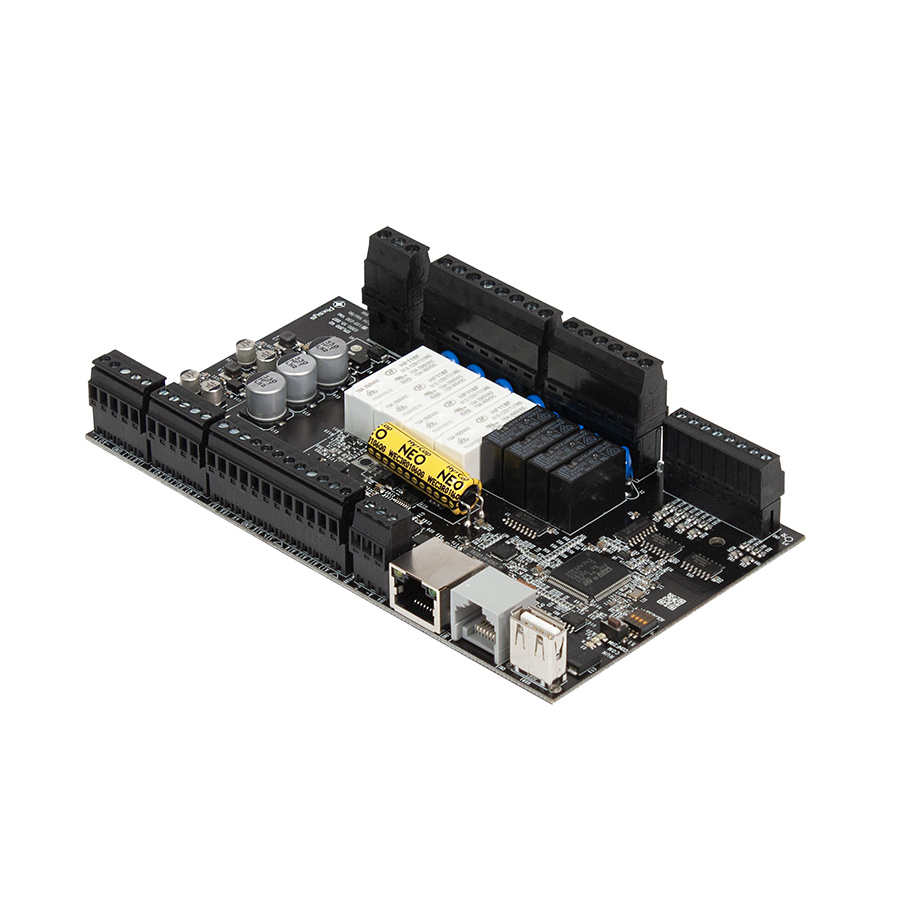

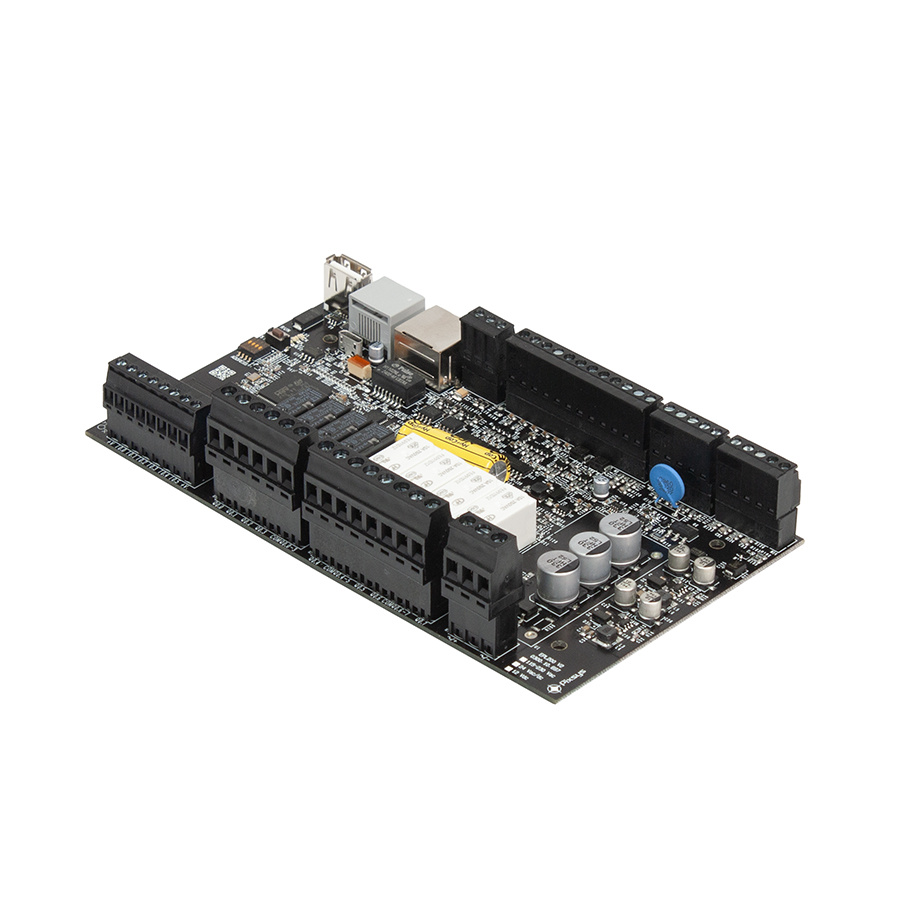

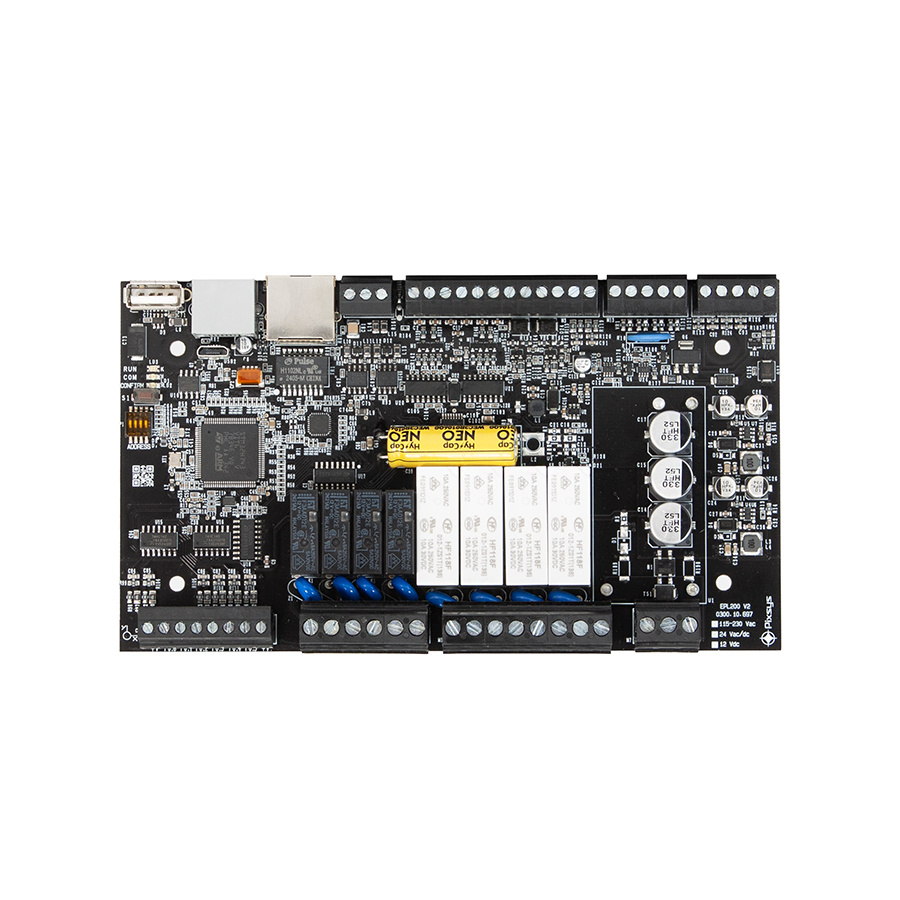

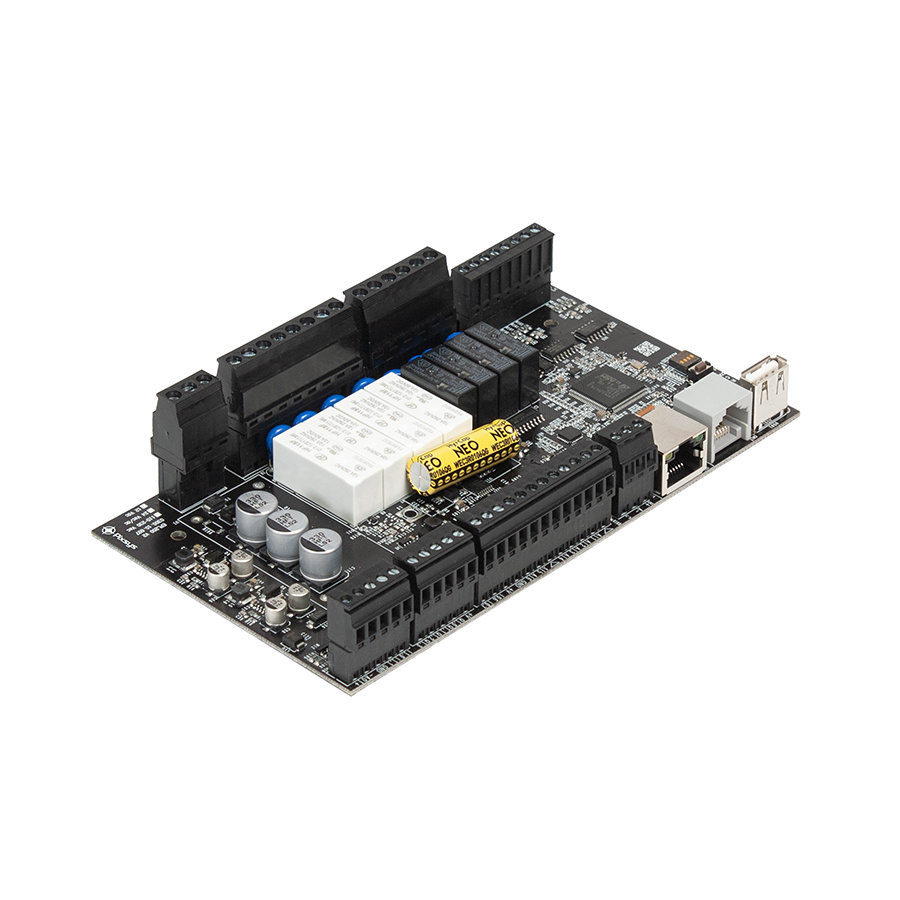

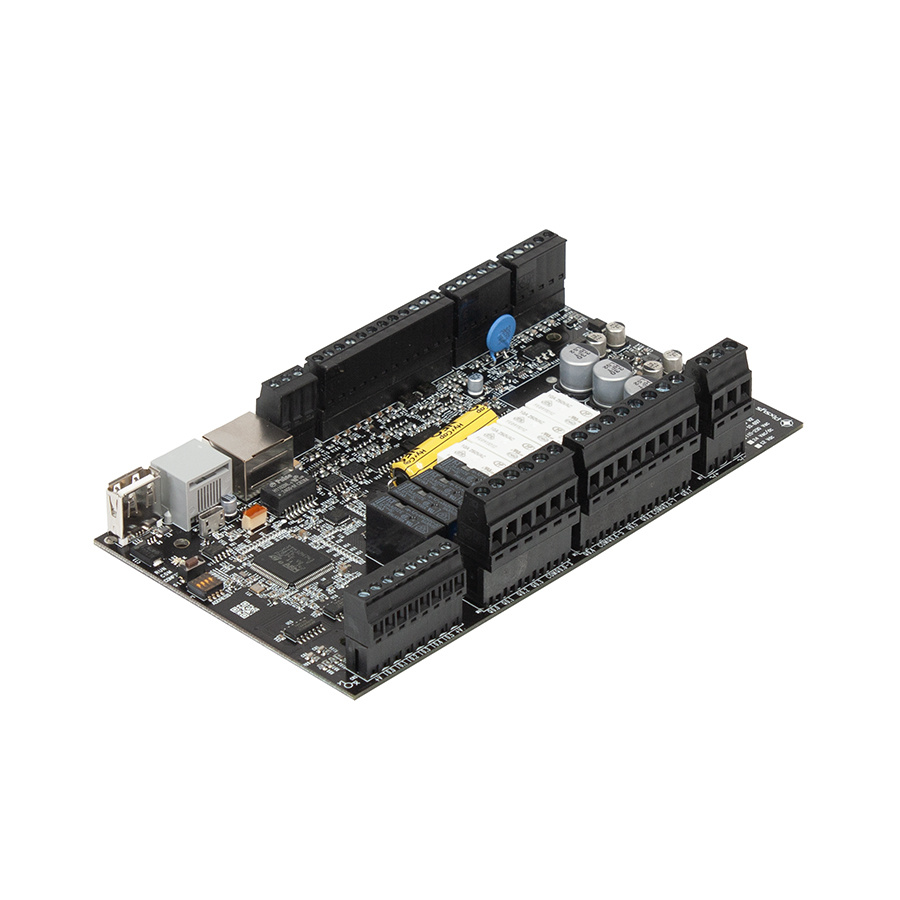

    EPL200 is a compact and flexible open-frame PLC board.


    It is configured as a control unit and connectivity node, complete with RS485 serial (Modbus RTU) , Ethernet (Modbus TCP/IP) and built-in analog-digital I/O.


    The board is programmable with LogicLab development environment, compliant with IEC61131 standards and available for download in the Software section of this page.


    This type of PLC board meets the identity needs of integrating control electronics within the application/machine. Thanks to the versatility of mounting solutions and the flexibility of logic programming, EPL200 is a valid alternative to traditional custom electronics.



    Request Information →

    Request Information

    ×

    • Data sheet
    • User manual
    • Logiclab
    to unlock downloads ACCEPT COOKIES

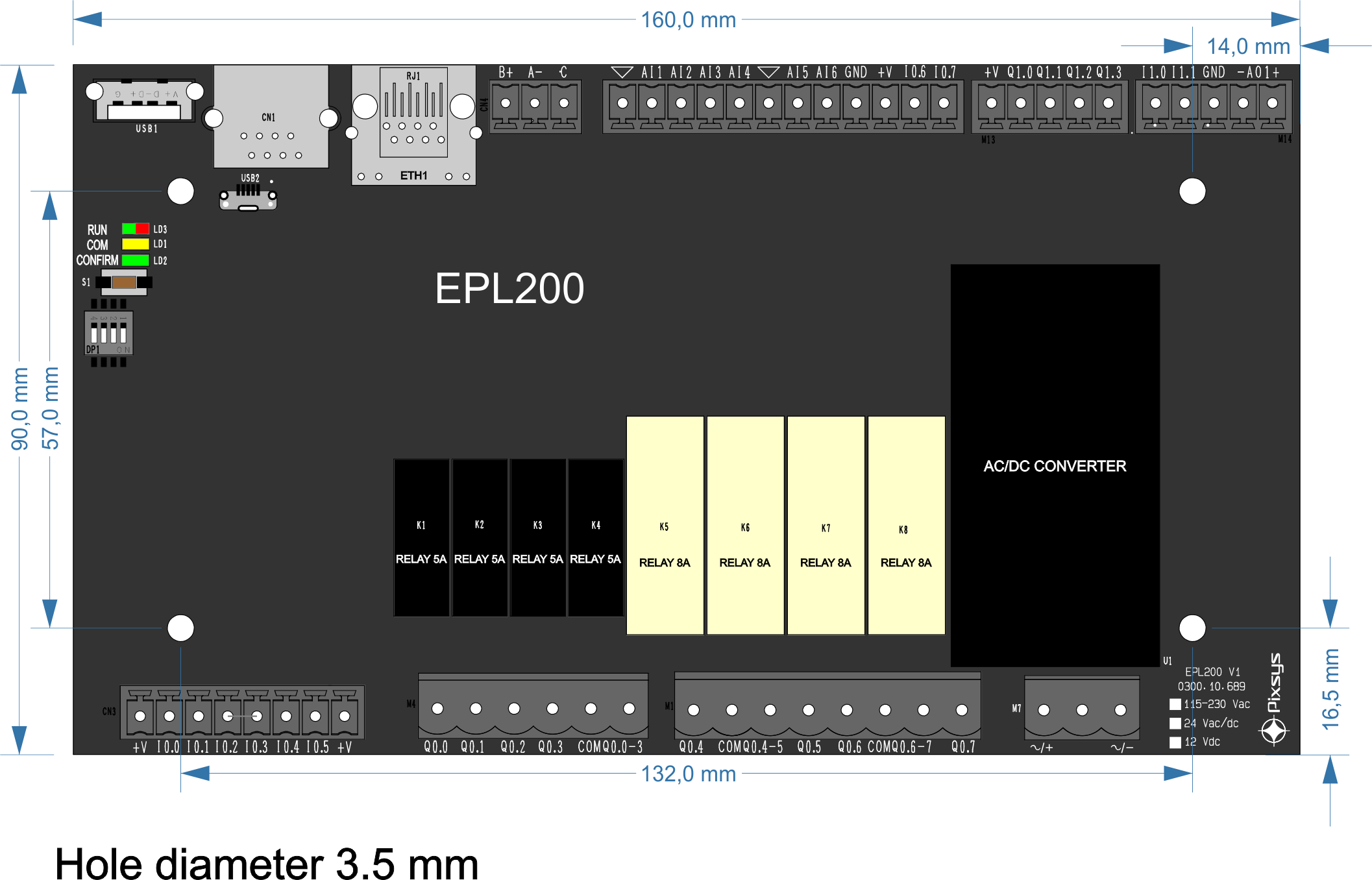

    • Dimensions
      162 x 90 mm
    • Sealing
      IP20

    ORDERING CODES

    EPL200-1A

    EPL200-1BCEPL200-1D

    Power supply

    24 V AC/DC115/230V AC12V DC

    Power consumption

    5 Watt/VA

    Processor

    ARM Cortex H7 @ 480MHz

    Memory

    Flash 2 Mb / RAM 1 Mb

    Serial communication

    2x RS485 (1200..115200 Baud)

    Field BusModbus RTU Master/Slave

    Ethernet

    1x 10 / 100 Mbit/s Base-T on RJ45 connector (Modbus TCP master/slave)

    USB

    1x USB 2.0 for backup

    Digital inputs8 PNP + 2 NPN
    Digitali outputs4 PNP + 4 x 5A relays + 4 x 10A relays
    Encoder input3x (Res. 32 bit, 100 KHz) Push Pull
    Analogue inputs4x TC type K S R J T E N B, PT100, PT500, PT1000, Ni100, PTC1K, NTC10K (ß 3435K), potentiometer 1 KΩ, 150 KΩ (50000 pts) 0..60 mV (16000 pts)<br /> 2x 0..10 V (54000 pts), 0/4..20mA (40000 pts)
    Analogue outputs1 x 0..10V / 4..20 mA
    • Soft PLC Logics programming
      LogicLab, standard IEC61131-3 (ST, IL, FBD, SFC, LADDER), cycle time 4 mS

    • EPL200-1A
      PLC 160X90 - 6AI - 1AO -10DI - 4DO - 8RL - 1 ETH - 2 RS485 - LOGICLAB - 24 V AC/DC
      link locator link pixsys
    • EPL200-1BC
      PLC 160X90 - 6AI - 1AO -10DI - 4DO - 8RL - 1 ETH - 2 RS485 - LOGICLAB - 115..230 V AC
      link locator link pixsys
    • EPL200-1D
      PLC 160X90 - 6AI - 1AO -10DI - 4DO - 8RL - 1 ETH - 2 RS485 - LOGICLAB - 12V DC
      link locator link pixsys
