Compact PLC + I/Os
PL280
Programming tool standard IEC61131-3
PID-Autotune for process control
Modbus RTU master/slave
Modbus TCP master/slave
CAN Open master
PLE-DIN-BUS (real-time) on DIN rail for I/Os

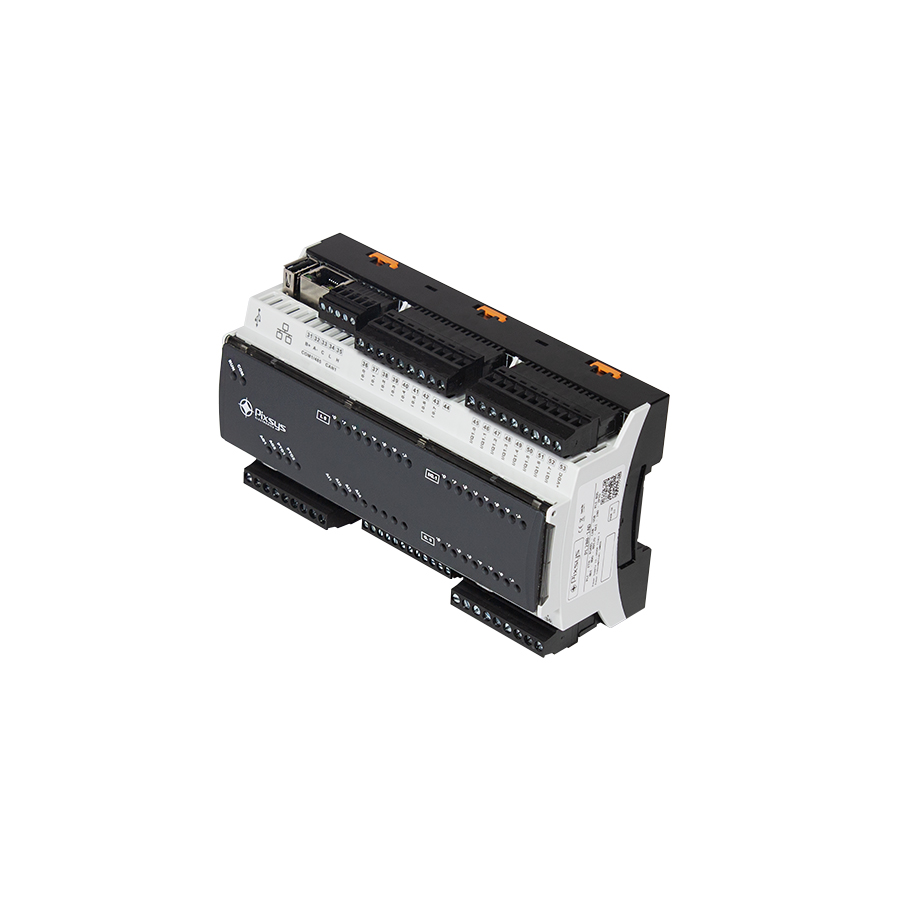

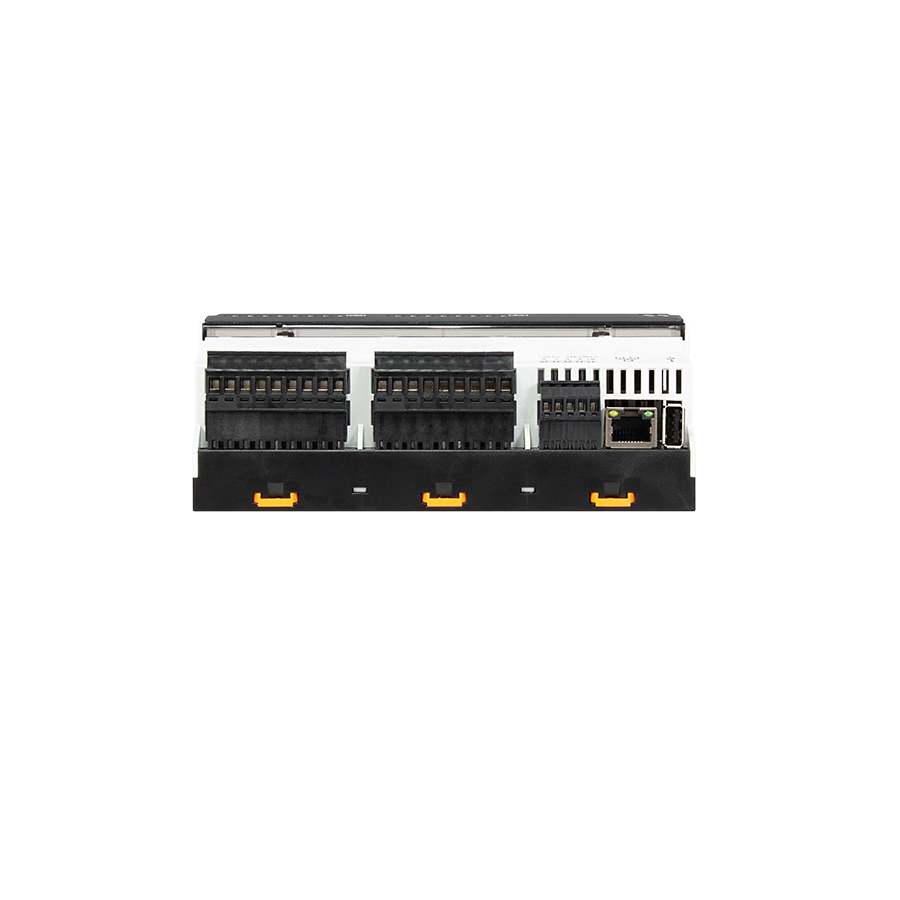

PL280 is a compact PLC integrating also analogue/digital I/Os. CPU is s based on ARM CORTEX H7 480MHz microprocessor; it is programmable with LogicLab (IEC 61131-3) and is conceived as a control unit and connectivity node, featuring RS485 serial (Modbus RTU), Ethernet (Modbus TCP) and CANopen.

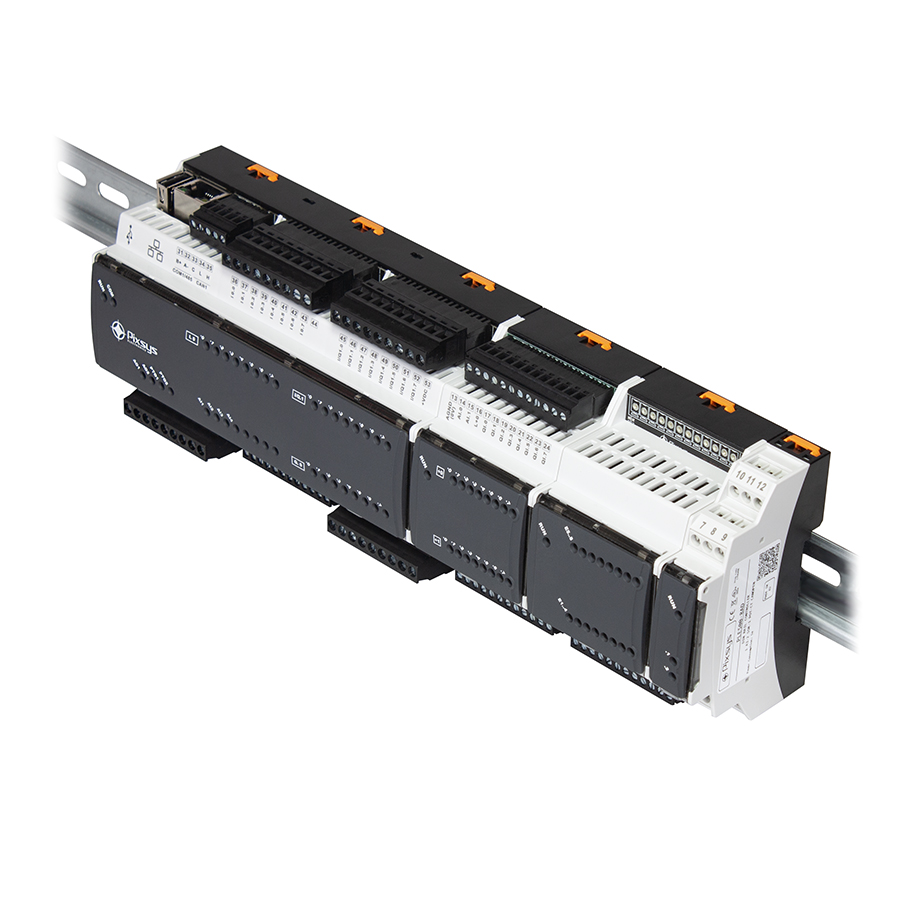

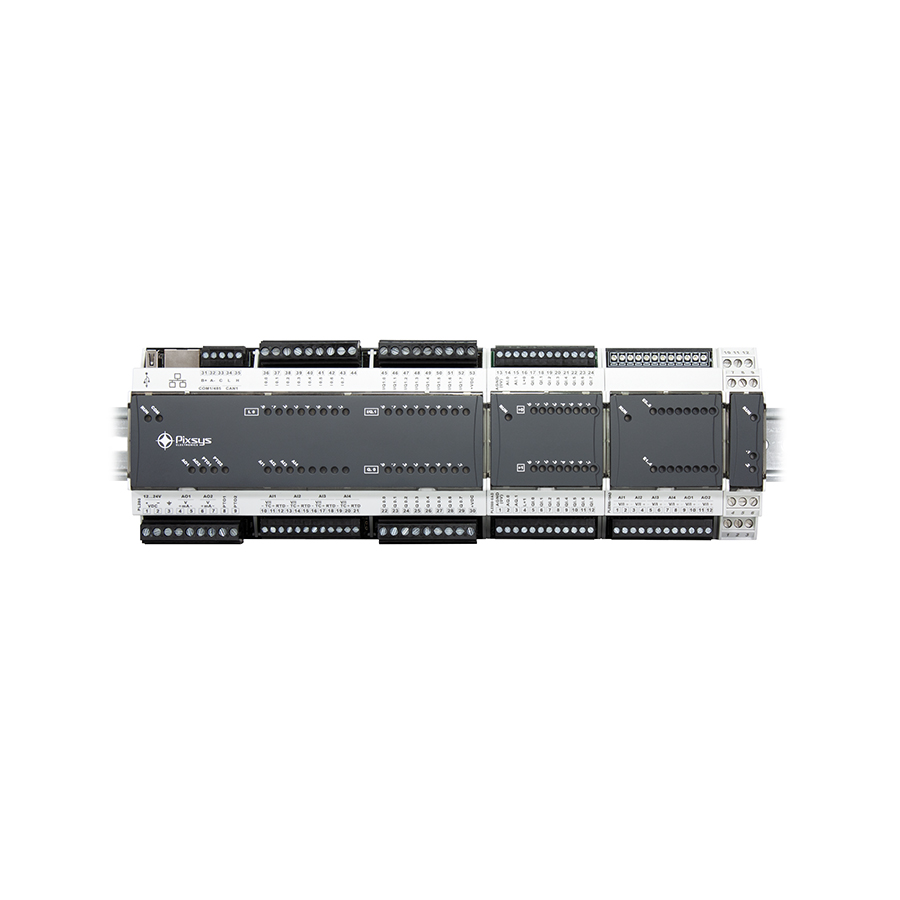

PL280 can be expanded with PLE500 I/O modules, which communicate with the CPU via an internal real-time bus on DIN rail or MCM260X modules for remote I/Os.
Industry 4.0 connectivity Modbus TCP protocol is supported.
PL280 series can also be used as an I/O with Modbus TCP/RTU connectivity, as well as secondary logics for temperature control/process control, thanks to the availability of analogue I/Os (temperature and 4...20mA/0...10V signals) plus PID-Autotuning function blocks in LogicLab programming tool.

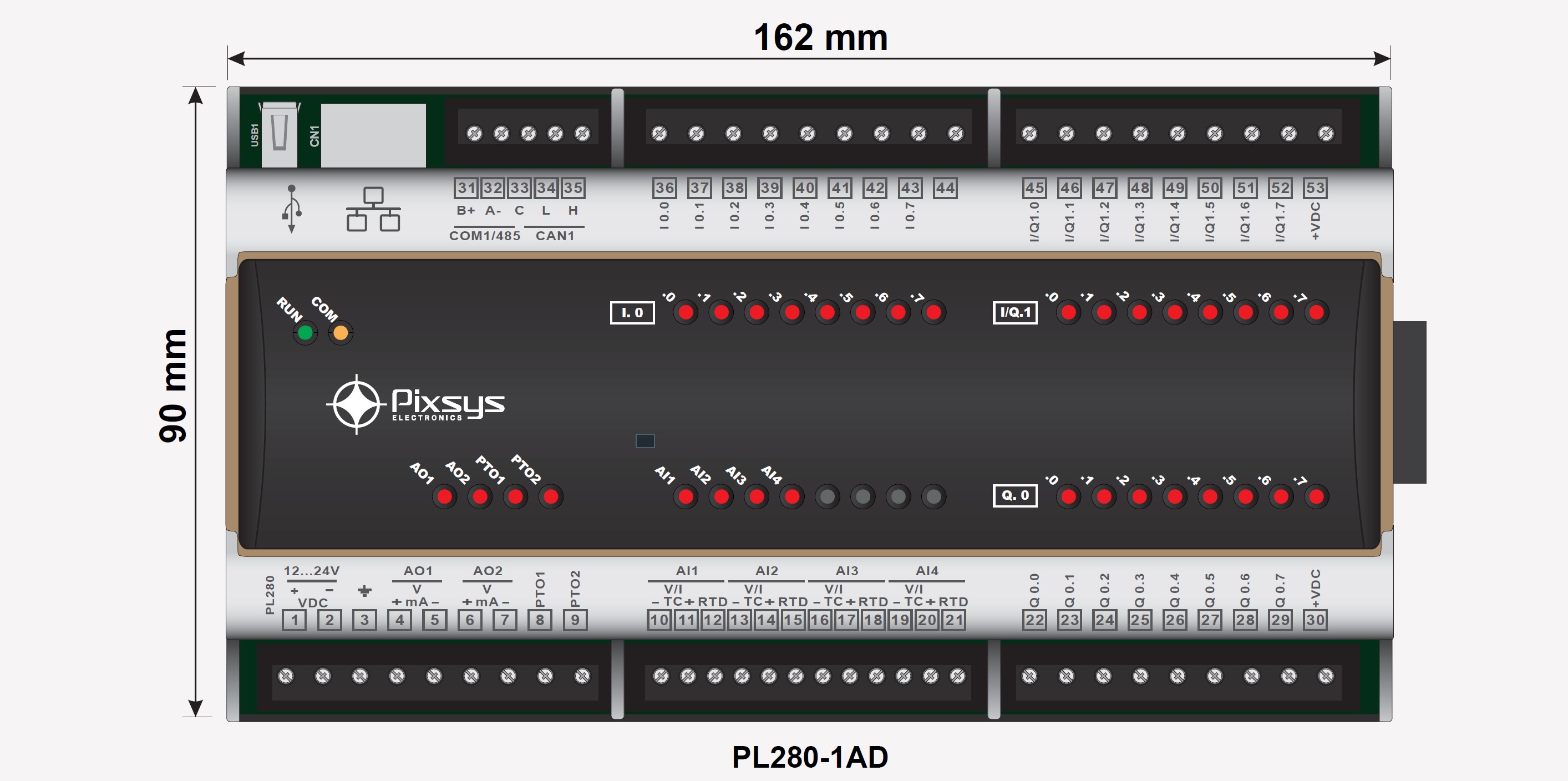

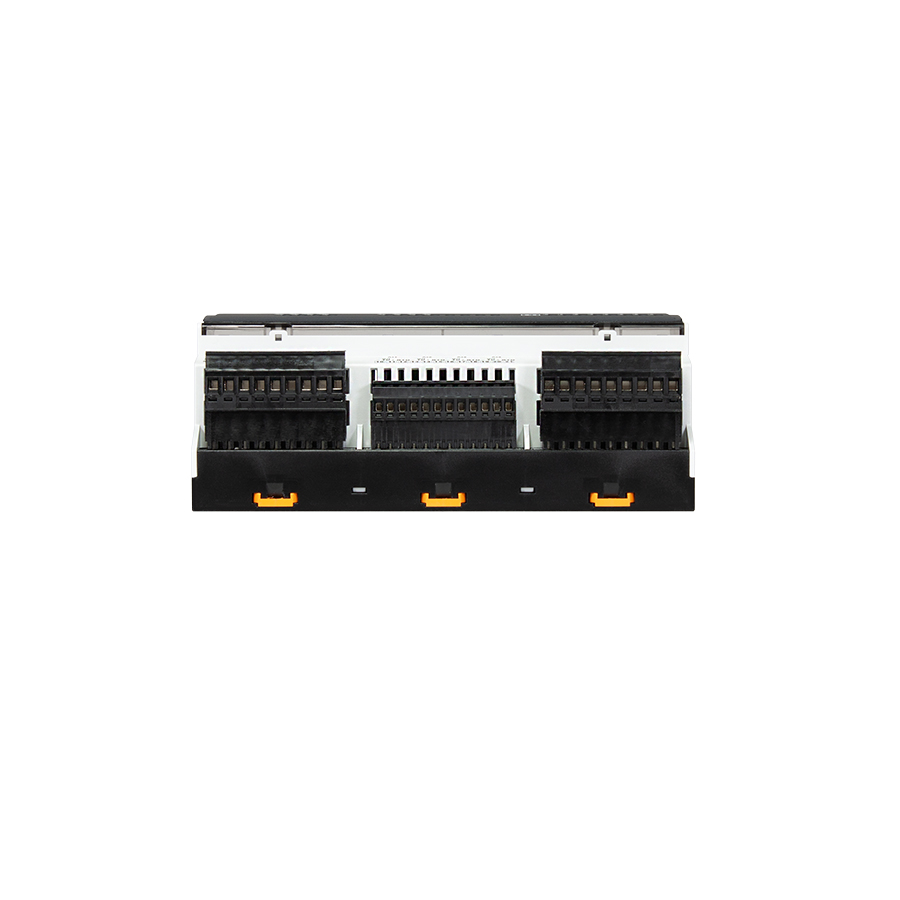

- Dimensions162 x 90 x 64 mm - 9 modules DIN43880
- MaterialHousing: Noryl V0; Front panel: self-extinguishing V0 silicone rubber
- SealingBox and terminal blocks: IP20
- Operating conditionsTemperature 0-45 °C, humidity 35..95 uR% (non-condensing)
|
ORDERING CODES |
PL280-1AD |
|---|---|
|
Power supply |
12..24 V DC ±10% 50/60 Hz |
|
Power consumption |
5 Watt/VA |
|
Processor |
ARM Cortex H7 @ 480MHz |
|
Memory |
Flash 2 Mb / RAM 1 Mb |
|
Serial communication |
1x RS485 (1200..115200 Baud) |
|
CAN |
1x CAN (50K..1Mbit) |
|
Expansion Bus |
PLE-DIN-BUS (real time) on DIN BAR |
| Field Bus | Modbus RTU Master/Slave, CANopen (Master) |
|
Ethernet |
1x 10 / 100 Mbit/s Base-T on RJ45 connector (Modbus TCP master/slave) |
|
USB |
1x USB 2.0 for PLC logic files update |
| Digital inputs | 8 PNP + 8 optional |
| Digitali outputs | 8 PNP + 8 optional |
| Encoder input | 4x (Res. 32 bit, 80 KHz) Push Pull |
| Analogue inputs | 4x TC type K S R J, PT100, PT500, PT1000, Ni100, PTC1K, NTC10K (ß 3435K), potenziometro 6 KΩ, 150 KΩ (50000 pts) 0..60 mV (16000 pts)<br />4x 0..10 V (54000 pts), 0/4..20mA (40000 pts) |
| Analogue outputs | 2 x 0..10V / 4..20 mA |
| Pulse Train - PTO outputs | 2 x 100 KHz |
- Soft PLC Logic programmingLogicLab (IDE), standard IEC61131-3 (ST, IL, FBD, SFC, LADDER), cycle timing 4 mS
- PL280-1ADPLC DIN RAIL 1 ETHERNET; 1 RS485; 1 CANopen; 1 PLE DIN BUS
4 Analog inputs; 2 Analog Outputs; 24 Digital I/Os; 2 Pulse train Outputs
