Modular PLC
PL600
LogicLab runtime, Linux Debian OS
Fieldbus: Modbus RTU, CANopen, Modbus TCP
IIoT: Web Server HTML 5, MQTT client, OPC UA
PID Autotuning module for process control
Pixsys Portal VPN - Remote Control and Assistance tool

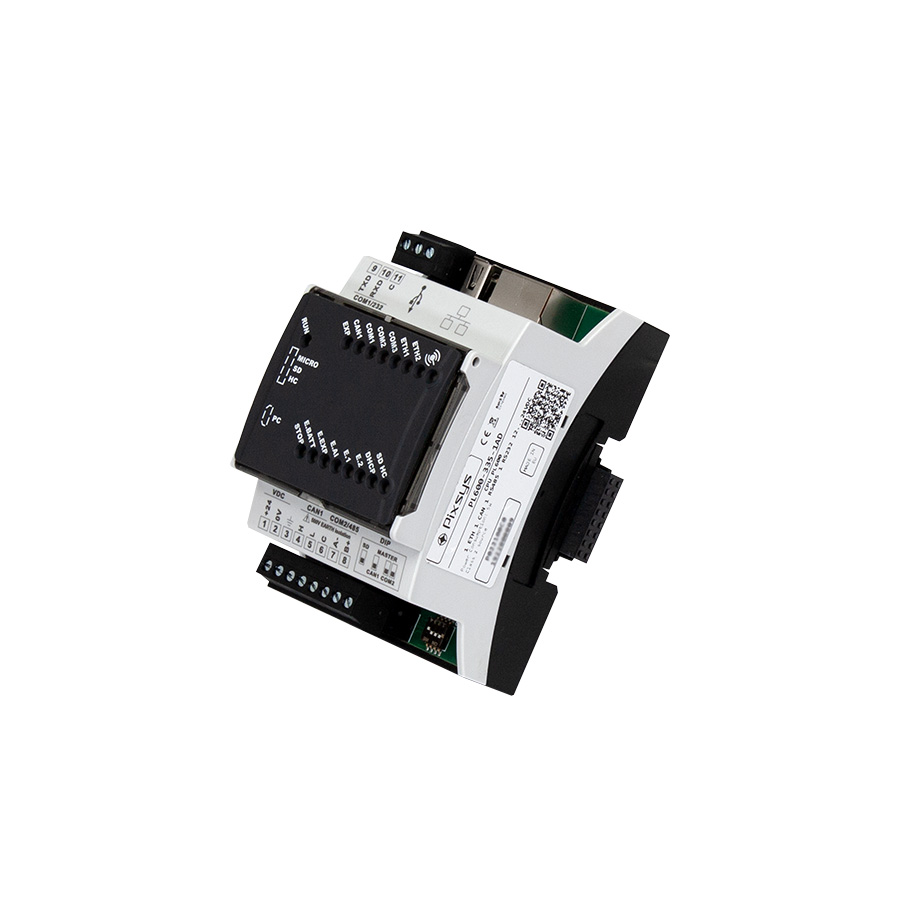

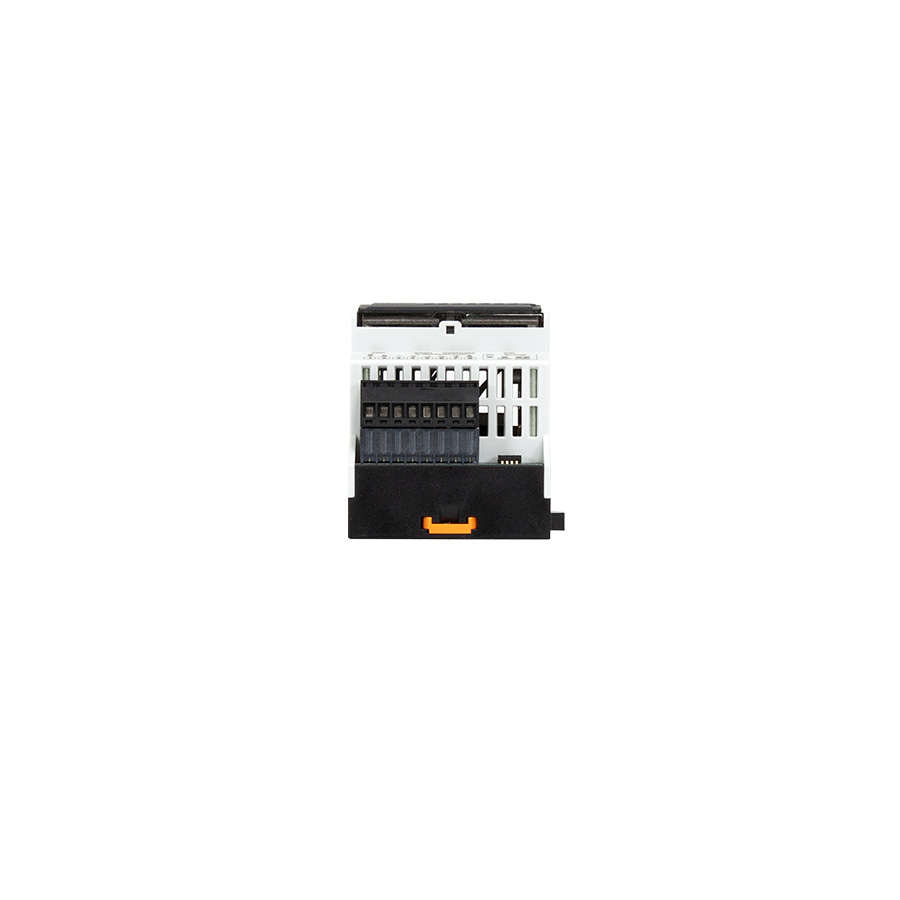

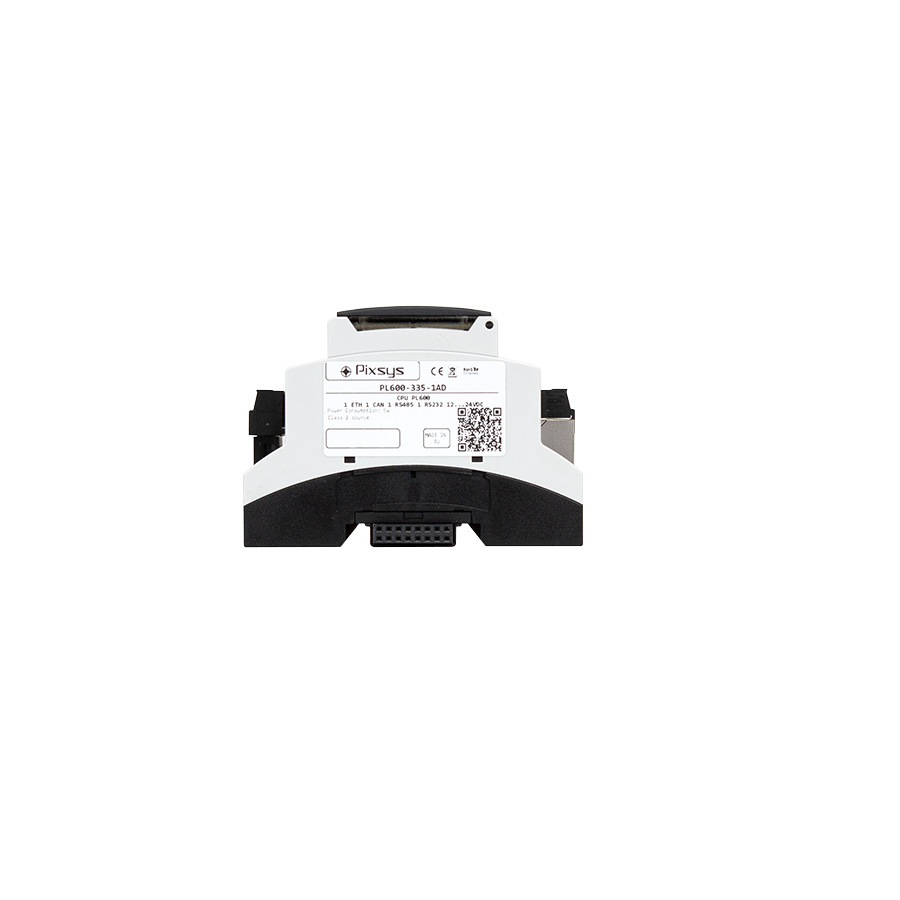

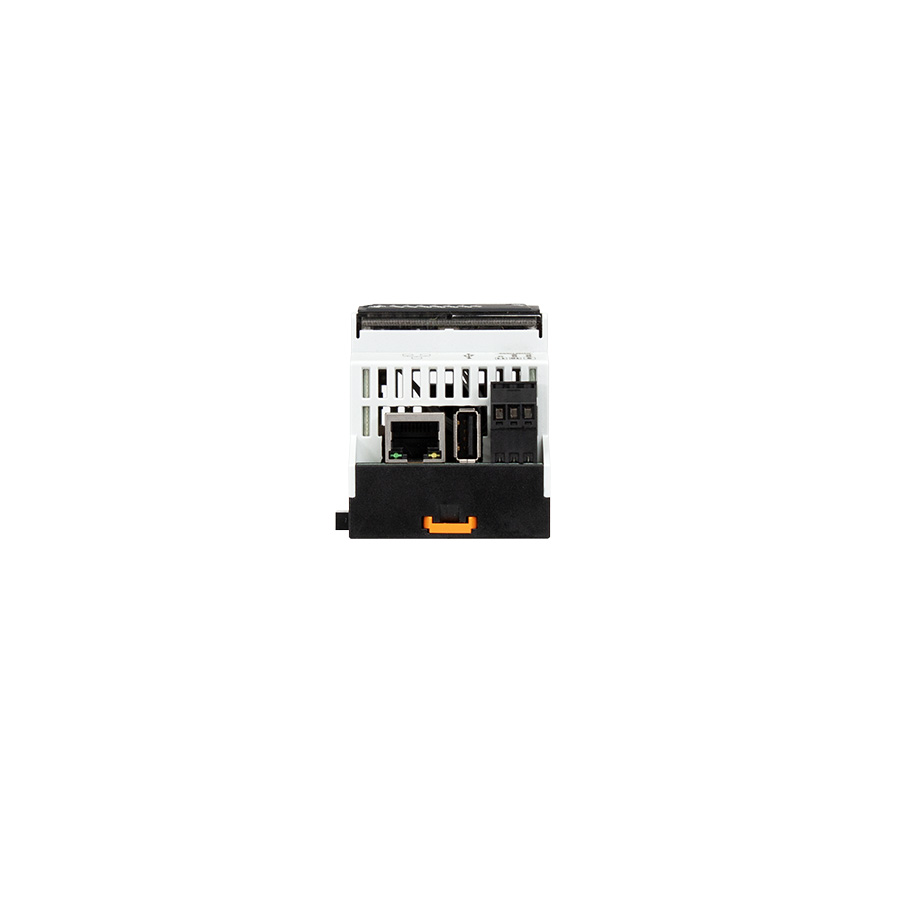

Pixsys PL600 PLC relies on a modular and flexible structure. The CPU is based on an ARM CORTEX A8 -1 GHz microprocessor and is conceived as control and connectivity node, complete with RS485 and RS232 serial (Modbus RTU), Ethernet (Modbus TCP), CANopen.

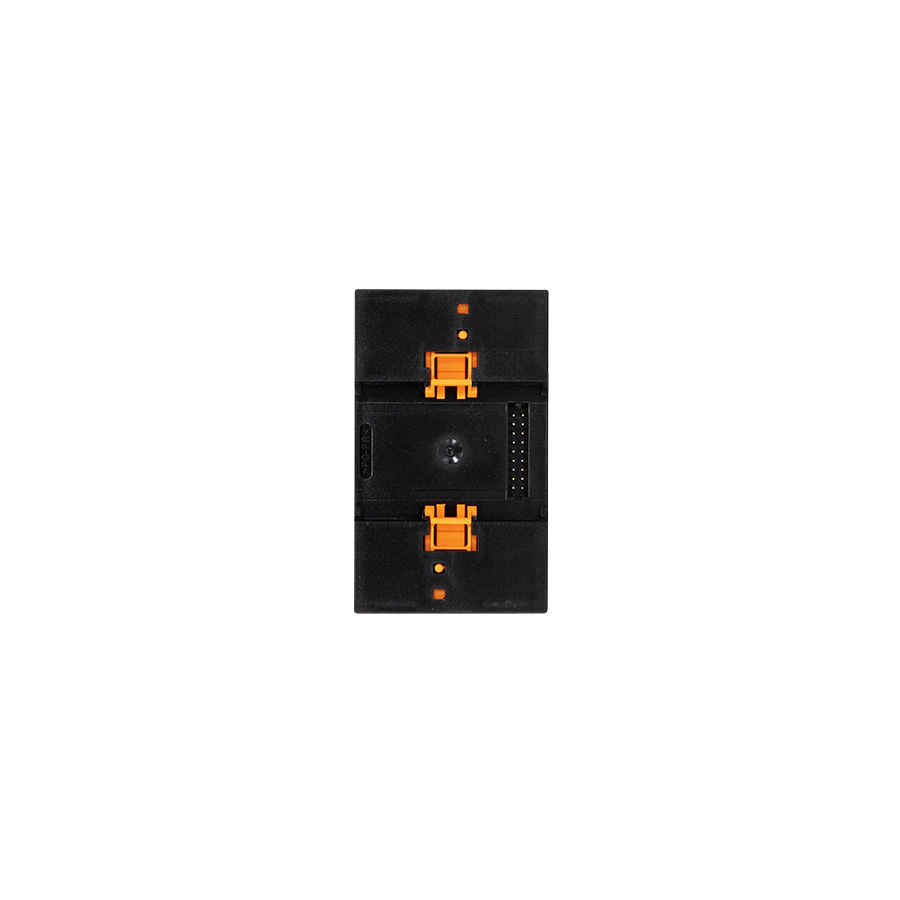

The various analogue-digital I/O combinations are provided by PLE500 modules, which communicate with the CPU via internal real-time bus on DIN rail. MCM260X series is available for remote I/O acquisition and management.
To ensure Industry 4.0 connectivity, the Modbus TCP protocol is supported, as well as MQTT and OPC-UA Server, which are available as built-in functions in the LogicLab development tool.
- Dimensions54 x 90 x 64 mm - 3 modules DIN43880
- MaterialBox: Nory V0; Front: self-extinguishing V0 silicone rubber
- WeightApprox. 250 g
- SealingBox and terminal blocks: IP20
- Operating conditionsTemperature 0-45 °C, humidity 35..95 uR% (non-condensing)
- CertificationsCE
| ORDERING CODES | PL600-340-1AD | PL600-335-1AD |
|---|---|---|
| Power supply | 12..24 V DC ±10% 50/60 Hz - galvanic isolation 2,5kV | |
| Power consumption | 3 Watt/VA | |
| Processor | ARM Cortex A8 @ 1 GHz | |
| Memory | eMMC 2 GB / RAM 512 MB DDR3 | |
| Clock | Real-Time clock, Back-up capacitor | Real-Time clock, Back-up battery, CR2032 Lithium / Manganese Dioxide (Li/MnO2) |
| Serial communication | 2x RS485 (1200..115200 Baud) galvanically isolated or 1x RS485 (1200..115200 Baud) galvanically isolated + 1x RS232 (1200..115200 Baud) 1x RS485 (1200..115200 Baud) | 1x RS485 (1200..115200 Baud) galvanically isolated |
| CAN | 1x CAN (50K..1Mbit) galvanically isolated | |
| Expansion Bus | PLE-DIN-BUS (real time) on DINrail - MAX 24 modules PLE500 | |
| Ethernet | 1x 10 / 100 Mbit/s 1x second Ethernet port option on USB (see accessories) - 10 / 100 Mbit/s | |
| USB | 1x USB 2.0 | |
- Operating systemLinux Debian
- Communication protocolsModbus RTU - Modbus TCP/IP - CAN Open - Free Port (su seriale) - OPC-UA Server - MQTT Client
- Soft PLC Logic programmingLogicLab (IDE), standard IEC61131-3 (ST, IL, FBD, SFC, LADDER), cycle timing 4 mS
- VPNPixsys Portal software (pre-installed in demo version) for remote desktop connection (VNC), Web Server, Client FTP, remote assistance.
- PL600-340-1ADLOGICLAB - PLC WEB SERVER - MQTT 1 ETH 1 CAN 1 RS485 1 RS232/485 12/24Vdc
- PL600-335-1AD (End of life)MODULAR PLC - OPC-UA SERVER / MQTT
1 ETHERNET - 1 RS485 - 1 RS232 - 1 CANopen
- ACCESSORIES' CODES
- 2400.10.021WMI6201 USB WiFi + BT Dongle RTL8822BU 802.11 abgn/ac 2T2R
- 2200.20.008MODEM 3G/4G USB
