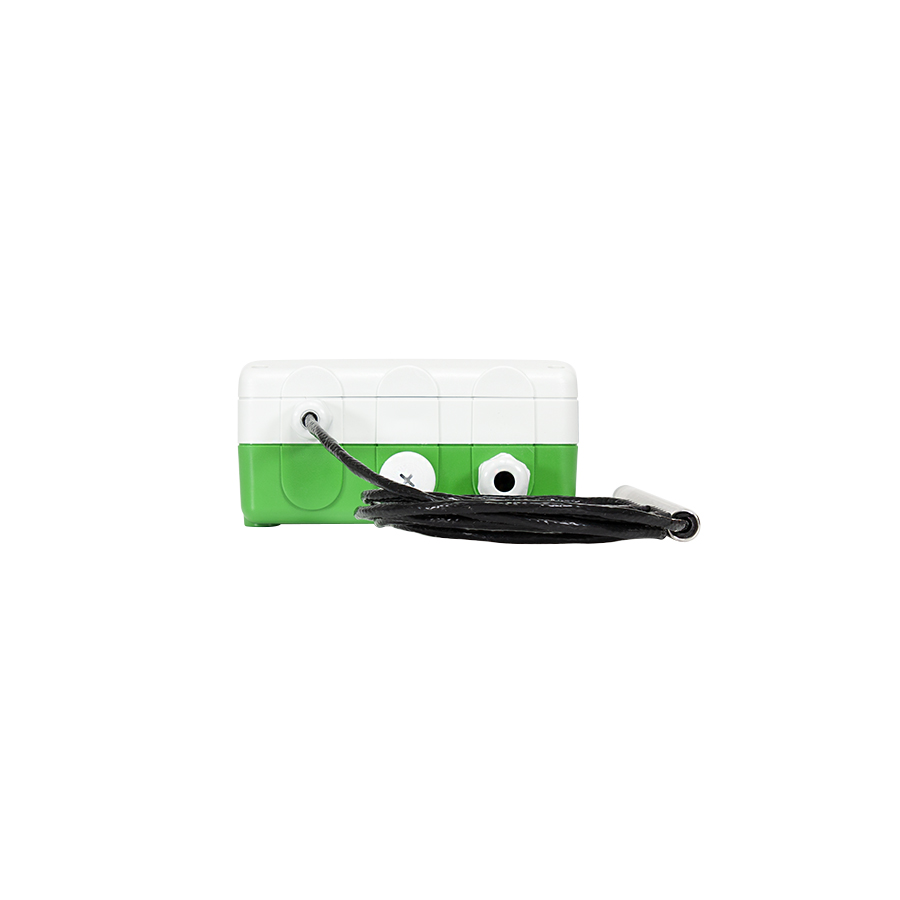

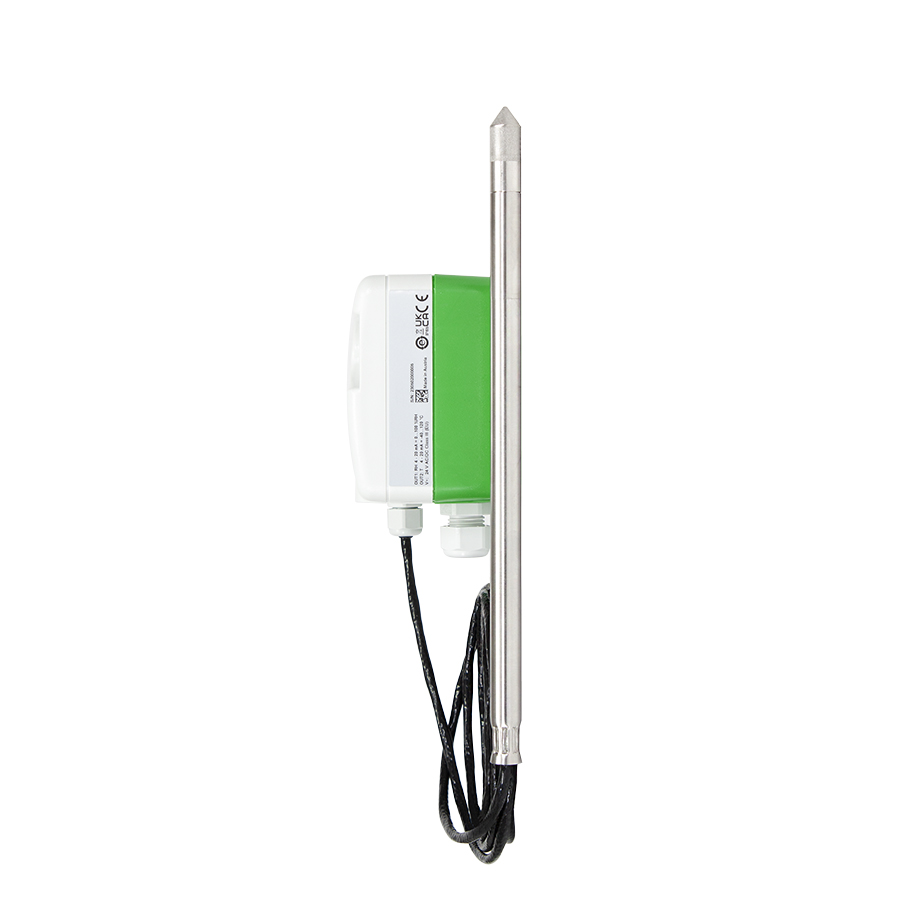

    EE23 | Humidity and temperature transmitter up to 120°C

    EE23 is an industrial ransmitter for relative humidity and temperature measurements. Equipped with  sophisticated sensor and  microprocessor, thanks to its stability over time and inherent accuracy this device is ideal for high-temperature processes and humidity conditions at the limits of the working range.

    A choice of different protection caps is available; to promote fast return from saturation all devices integrate a coating process on the chip.

    The output signal is configurable as 0...10Volt or 4...20mA.

    Optionally, it is possible to have the electronics box with LCD display for process visualization.

    Request Information →

    Request Information

    ×

    • Data sheet
    • Man. Inst. EN
    to unlock downloads ACCEPT COOKIES
    • Dimensions
      Box 135 x 90 mm - Stem 250x12 mm
    • Sealing
      IP65
    • Operating conditions
      -40°C ... +60°C (electronics) / -40..120 ° C (sensor)
    • Certifications
      CE, UKCA
    ORDERING CODES2000.50.010 / 012 / 013 / 014 / 032 / 036 / 062 / 074 / 075
    Power supply15..35 V DC - 15.28 V AC

    Consumption

    20 mA

    Measuring range Humidity

    0..100 %

    Accuracy @ 20°C

    +/- 1,3% RH (0...90% RH) / +/-2,3% RH (90..100% RH)

    Response time @ 25°C

    < 15 seconds

    Analogue output Humidity

    4..20 mA

    Measuring range Temperature

    -40..120 °C

    Accuracy @ 0°C

    ± 0,15 °C

    Analogue output Temperature

    4..20 mA

    Sensor cap

    Sintered

    Assembly

    Wall with cable and stem

    • 2000.50.010
      HUMID.+TEMP. SENS. EE23-GEL SINTER. Max working temperature 120°
      link locator link pixsys
    • 2000.50.012
      HUMID.+TEMP. SENS. EE23-GEL SINTER.DISPLAY temp.sen. 120°C display 2 mt Teflon cable
      link locator link pixsys
    • 2000.50.013
      HUMID.+TEMP. SENS. EE23-GEL SINTER.DISPLAY temp.sen. 120°C display 10mt Teflon cable
      link locator link pixsys
    • 2000.50.014
      HUMID.+TEMP. SENS. EE23-GEL GRID MET. Max working temperature 120°
      link locator link pixsys
    • 2000.50.032
      HUMID.+TEMP. SENS. EE23-DewPoint Out 2 x 4..20mA EE23-PFTB35/BC6T02TD03
      link locator link pixsys
    • 2000.50.036
      HUMID.+TEMP. SENS. EE23-DewPoint Out 2 x 4..20mA EE23-PFTB35/BC6T02TD06
      link locator link pixsys
    • 2000.50.062
      HUMID.+TEMP. SENS. EE23-GRID MET. temperature 180°C 2mt cable
      link locator link pixsys
    • 2000.50.074
      HUMID.+TEMP. SENS. EE23-T4K2C1GA6SBL-40SBH120 PRT4655452
      link locator link pixsys
    • 2000.50.075
      HUMID.+TEMP. SENS. EE23-T4K2C1GA6SBL-40SBH120 REMOTE PROBE 0 AT 120°C L=5M
      link locator link pixsys
