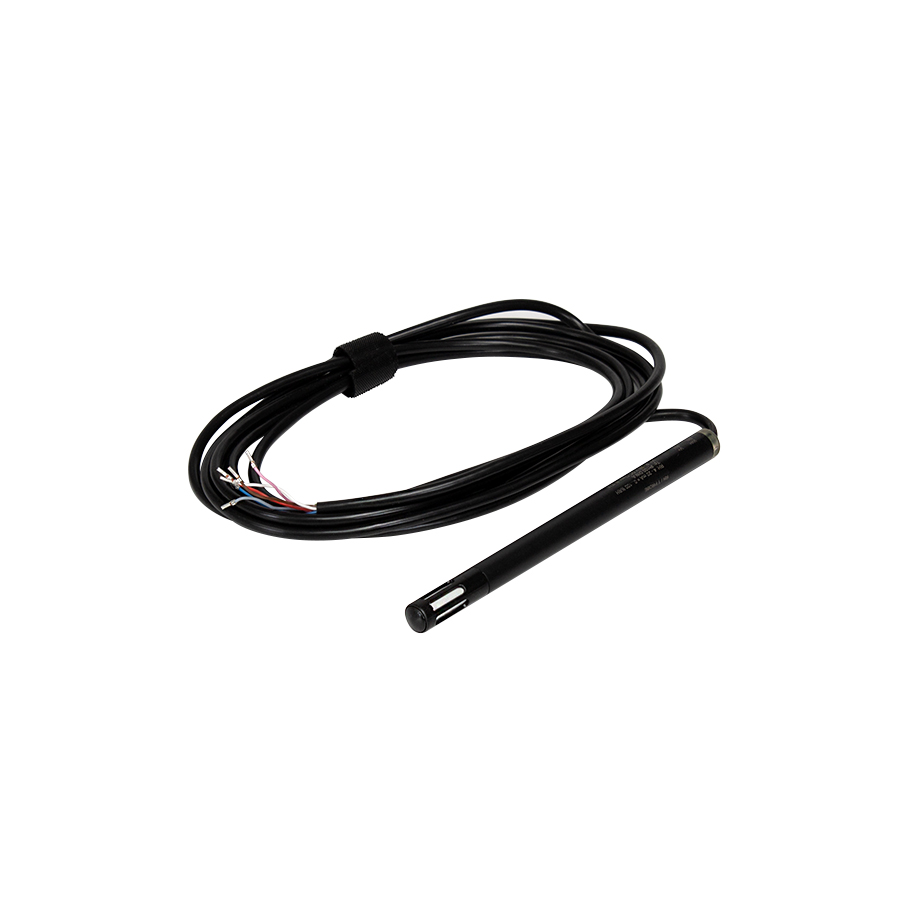

HTP 201 is a compact humidity and temperature transmitter. Because of the sensor's inherent accuracy and measurement settling time, it is ideal in price-sensitive applications for both industrial and home automation measurements.
- DimensionsStem 165 x 12 mm
- Cable1,5 m
- SealingIP65
- Operating conditions-40°C ... +80°C
- CertificationsCE, UKCA
|
ORDERING CODES |
2000.50.073 |
|---|---|
|
Power supply |
9..28 V DC |
|
Consumption |
20 mA |
|
Measuring range Humidity |
0..100 % |
|
Accuracy @ 25°C |
+/- 3% RH (0...100% RH) |
|
Response time @ 25°C |
2 seconds |
|
Saturation time |
75 seconds (25 °C RH 50%) |
|
Stabilising time |
15 minutes |
|
Analogue output Humidity |
4..20 mA |
|
Measuring range Temperature |
-40..80°C |
|
Accuracy @ 0°C |
± 0,15 °C |
|
Analogue output Temperature |
Passive - 3 wires |
|
Sensor Cap |
Membrane |
- 2000.50.073HUMID.+TEMP. SENS. HTP201-M6A6TP1E8KL300 Out 4...20mA + Passive Temp. PT100A
