Due to the intrinsic precision of the sensor and the adjustment time of the measurement, this compact transmitter is ideal for low-cost applications for monitoring and control in industrial or domotic environments.
There is a choice of 2 protective hoods and two output signals, 0...10Volt or 4...20mA. A wall bracket is included in the package.

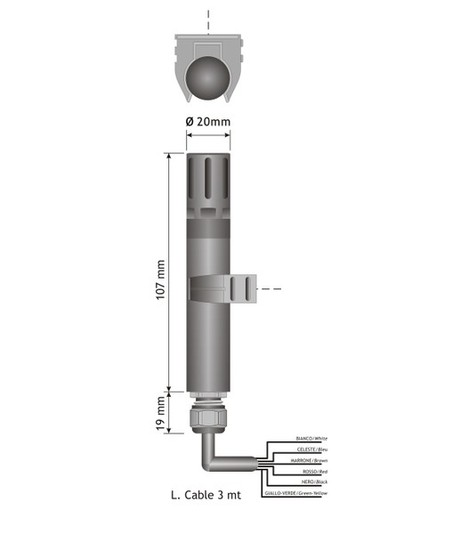

- DimensionsStelo 126 x 20 mm
- Cable3 m
- SealingIP21 cap with grille, IP50 sintered brass cap
- Operating conditions-10°C ... +60°C
- CertificationsCE
|
ORDERING CODES |
2000.50.018 |
2000.50.019 |
2000.50.020 |
2000.50.021 |
|---|---|---|---|---|
|
Power supply |
12..30 V DC | |||
|
Consumption |
20 mA |
20 mA |
3,5 mA |
3,5 mA |
|
Working range Humidity | 6..100 % | |||
|
Accuracy @ 25°C |
+/- 5% RH (15...90% RH) | |||
|
Response time @ 25°C |
2 seconds | |||
|
Saturation time |
75 seconds (25 °C RH 50%) | |||
|
Stabilising time | 15 minutes | |||
|
Analogue output Humidity |
4..20 mA |
4..20 mA |
0..10 V DC |
0..10 V DC |
|
Operating temperature |
- |
- |
-10..60 °C |
-10..60 °C |
|
Accuracy @ 0°C |
- |
- |
± 0,3 °C |
± 0,3 °C |
|
Analogue output Temperature |
- |
- |
Passive - 3 wires |
Passive - 3 wires |
|
Sensor Cap |
Metal grid filter |
Sintered filter |
Metal grid filter |
Sintered filter |

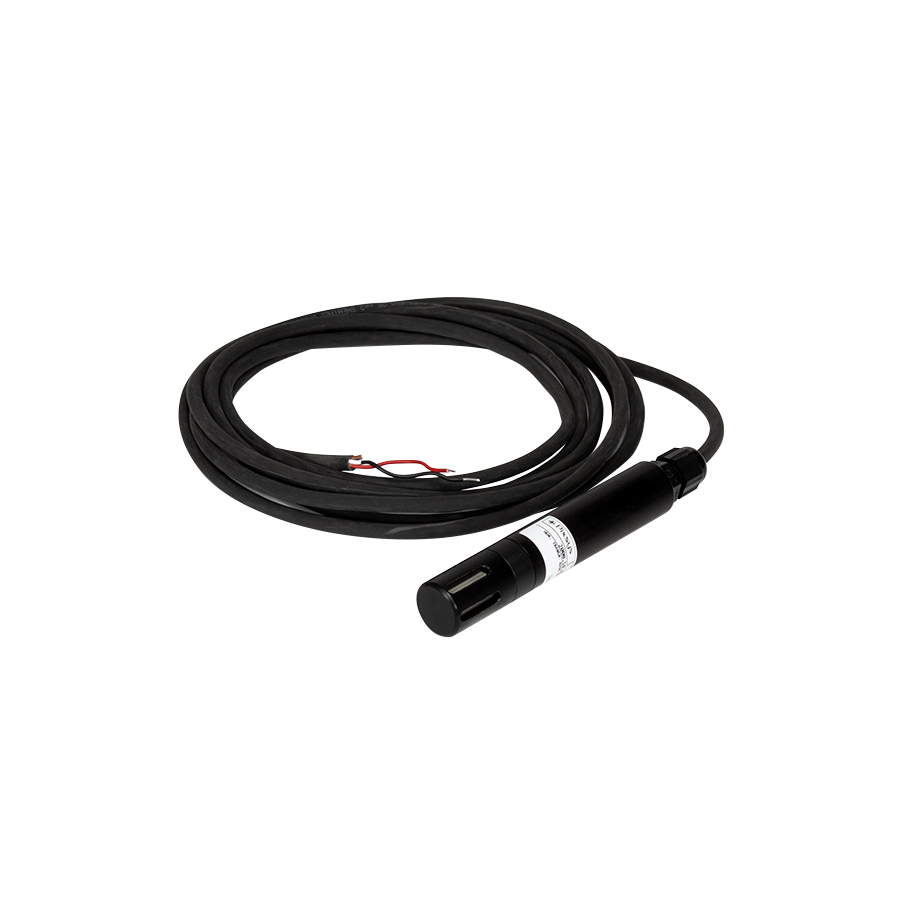

- 2000.50.018HUMID. SENS. RH96-3GA 4..20MA
- 2000.50.019HUMID. SENS. RH96-3BA 4..20MA Sintered filter
- 2000.50.020HUMID.+TEMP. SENS. RH96-3GVP 0..10V PT100

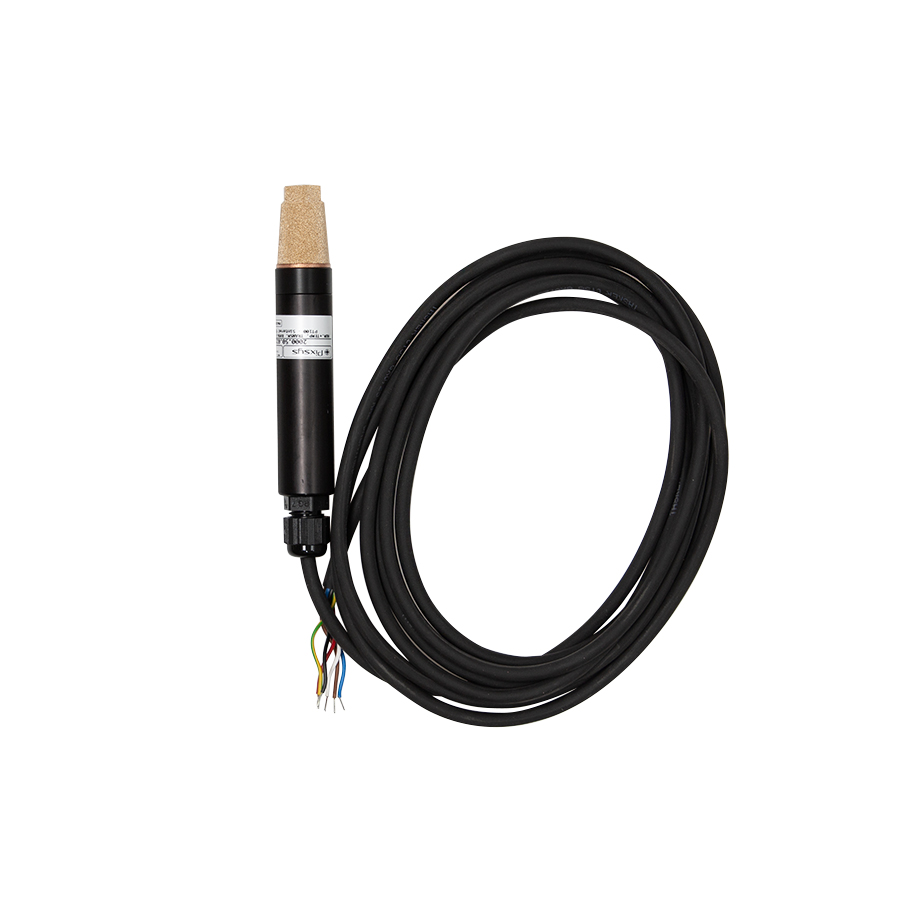

- 2000.50.021HUMID.+TEMP. SENS. RH96-3BVP 0..10V PT100 Sintered filter
