These infrared sensors are suitable for use in hazardous areas with certified intrinsically safe isolator for measurement between -20...1000°C.
Various optics are available depending on target spot diameter and its distance from sensing head.
Optional USB adapter allows connection to PC and included Windows software.
|
ORDERING CODES |
EX21 |
EX151 |
EX301 |
EXCF |
|---|---|---|---|---|
|
Measuring range |
-20...1000 °C - settable via software and USB adapter |
|||
|
Accuracy @ 25°C |
1% of FS reading or +/- 1°C |
|||
|
Repeatability |
± 0.5 per cent of the reading or ± 0.5°C, whichever is greater | |||
|
Emissivity |
0.20..1 - settable via software and USB adapter |
|||
|
Spot IR beam |
2:1 |
15:1 |
30:1 |
Close Focus |
| Response time |
240 mS |
|||
|
Operating temperature |
0..70 °C |
|||
| Analogue output |
4..20 mA |
|||
| Power supply |
2-Wire Connection - 12...24 V DC |
|||
|
Dimensions |
150 x 20 mm | |||
|
Material |
AISI316 |
|||
| Sealing |
IP65 |
|||
| Certifications |
CE, Ex II 1GD, Ex ia IIC T4 Ga, Ex ia IIIC T135°C IP65 Da, UKCA |
|||
- 2000.20.049EX-301-LT-C-5 INFRARED SENS. SPOT 30:1 optics -20…100°C 4..20mA CABLE 5M
- 2000.20.050EX-301-HT-C-5 INFRARED SENS. SPOT 30:1 optics 0…500°C 4..20mA CABLE 5M

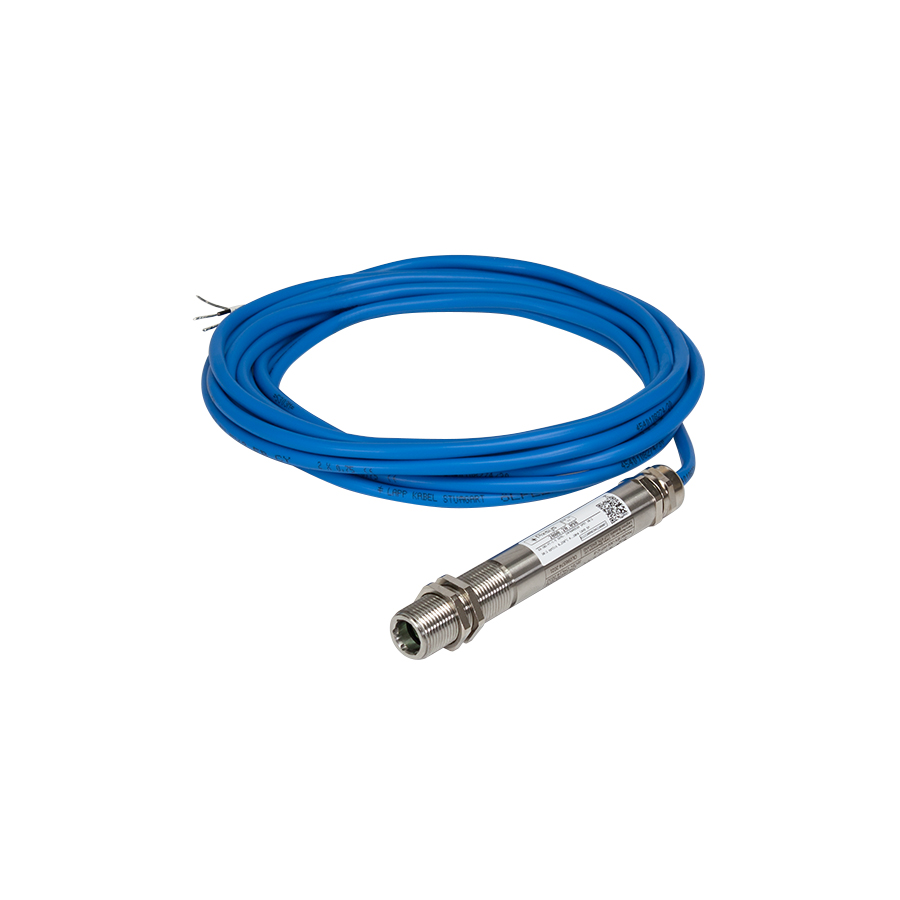

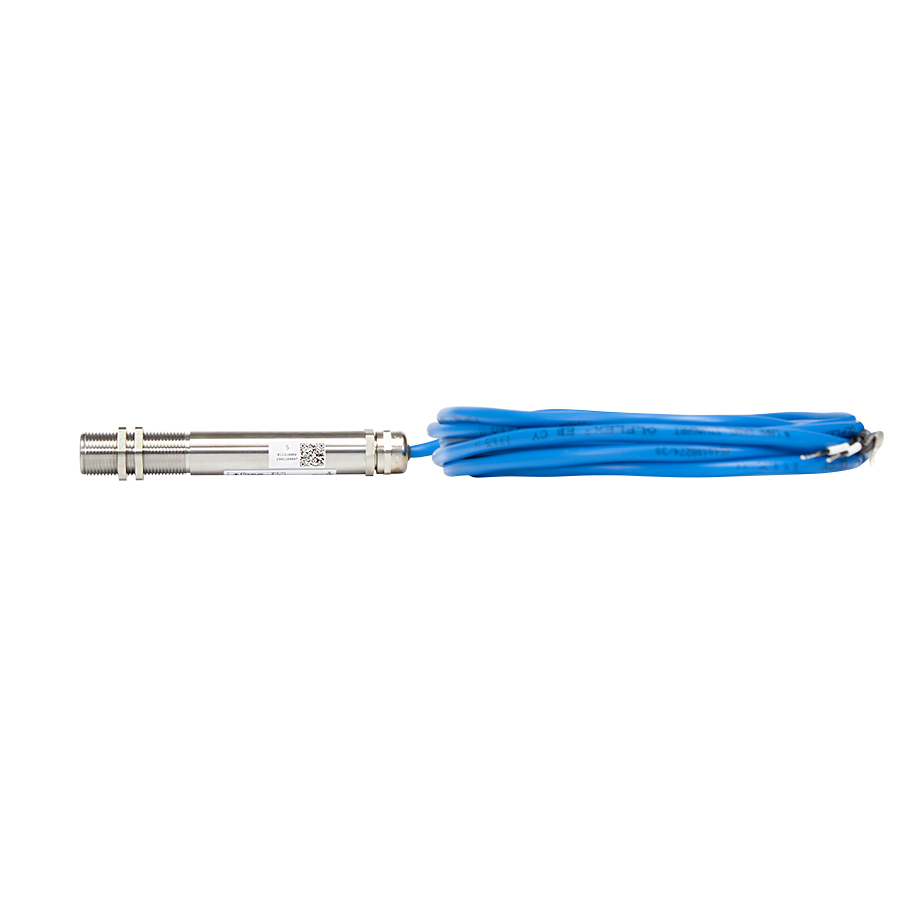

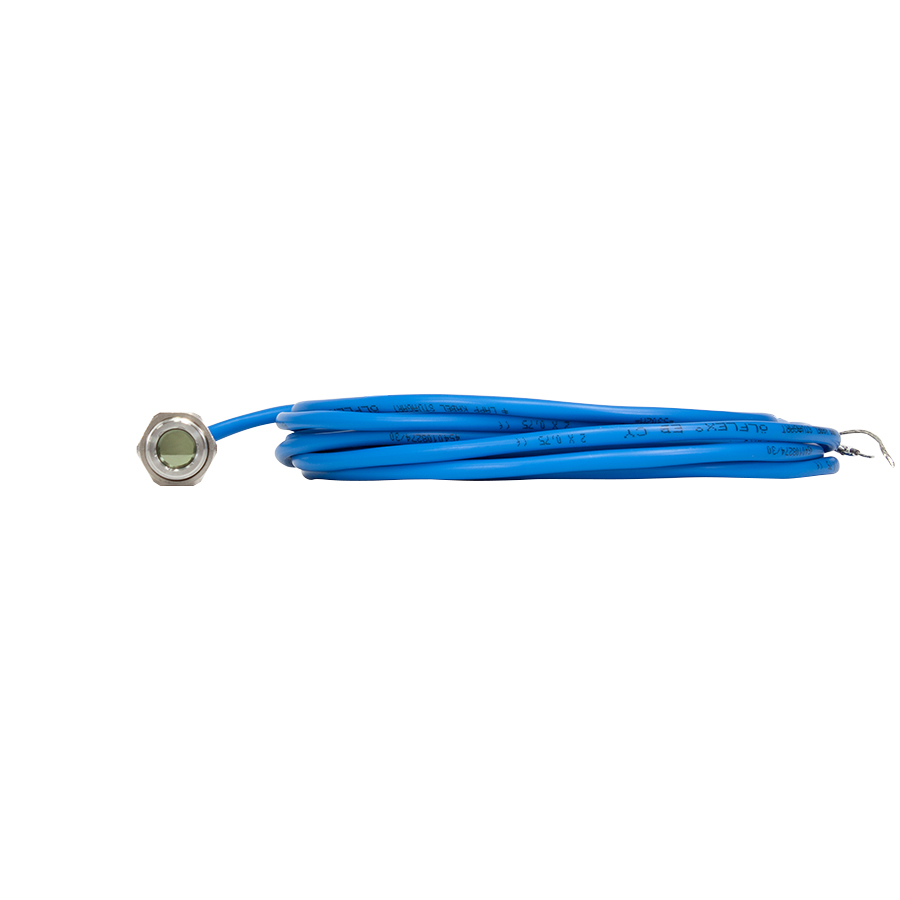

- 2000.20.098EX-301-MT-C-5 INFRARED SENS. SPOT 30:1 optics 0…250°C 4..20mA CABLE 5M
