The PyroCouple infrared sensors are compact, cost-effective, general-purpose measurement solutions , suitable for non reflective/non metal surfaces with a measuring range -20...500°C.
A choice of optics is available to fit dimensions of target spot and distance from sensing head.
Ideally complemented by any Pixsys ATR/DRR controller with simple two-wires 4-20mA wiring.
|
ORDERING CODES |
PC21 |
PC151 |
PC301 |
PCCF |
|---|---|---|---|---|
|
Measuring range |
-20...100°C (-LT) / 0...250°C (-MT) / 0....500°C (-HT) |
|||
|
Accuracy @ 25°C |
1% of FS reading or +/- 1°C |
|||
|
Repeatability |
± 0.5 % of reading or ± 0.5°C, whichever greater | |||
|
Emissivity |
fixed 0,95 |
|||
|
Optical resolution |
2:1 |
15:1 |
30:1 |
Close Focus |
| Response time |
240 mS |
|||
| Operating temperature |
0..70 °C |
|||
| Analogue output |
4..20 mA / mV (thermocouple K, J) |
|||
| Power supply |
2-Wire Connection - 6...28 V DC |
|||
|
Dimensions |
103 x 18 mm | |||
|
Material |
Stainless Steel |
|||
| Sealing |
IP65 |
|||
|
Certifications |
CE |
|||
- 2000.20.018PC21MT-0 INFRARED SENS. SPOT 2:1 optics 0 to 250°C 4-20mA Cavo 1mt
- 2000.20.043PC21LT-0 INFRARED SENS. SPOT 2:1 optics -20 to 100°C range 4-20mA

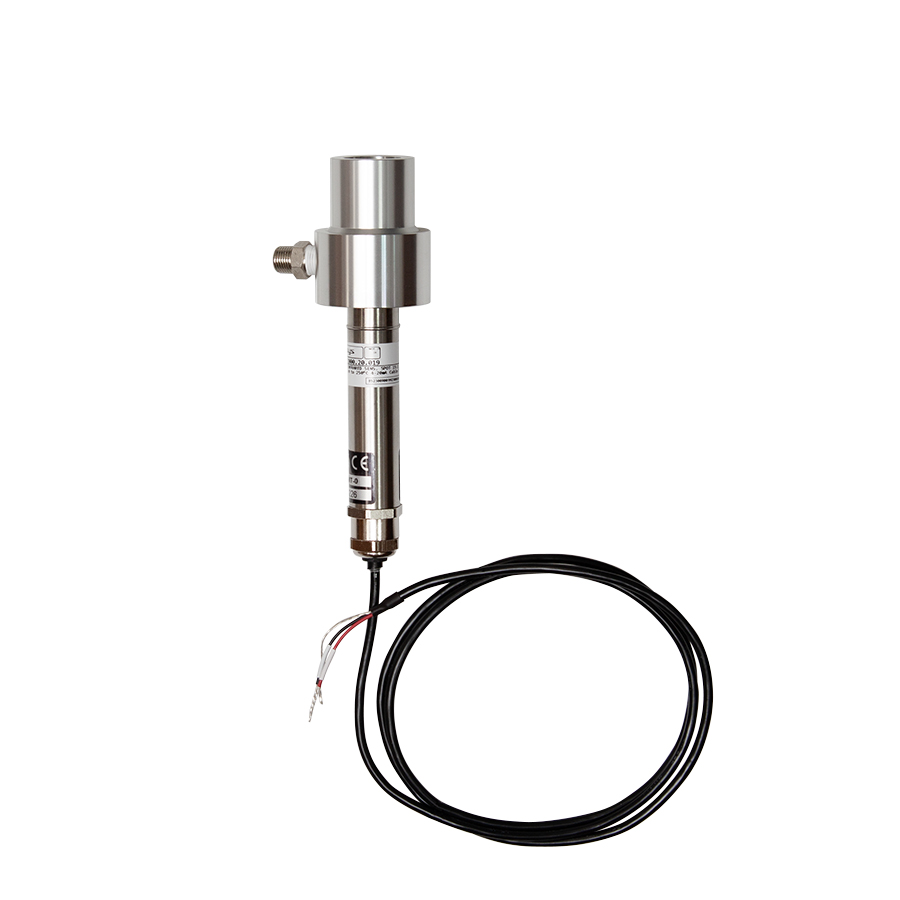

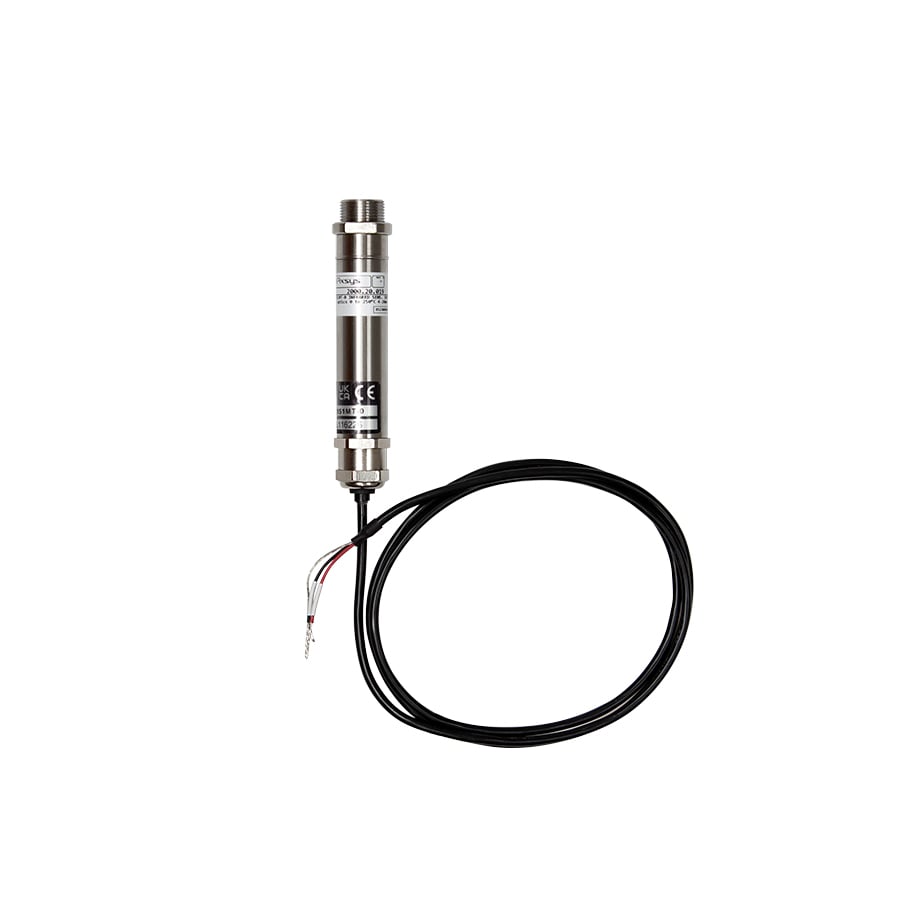

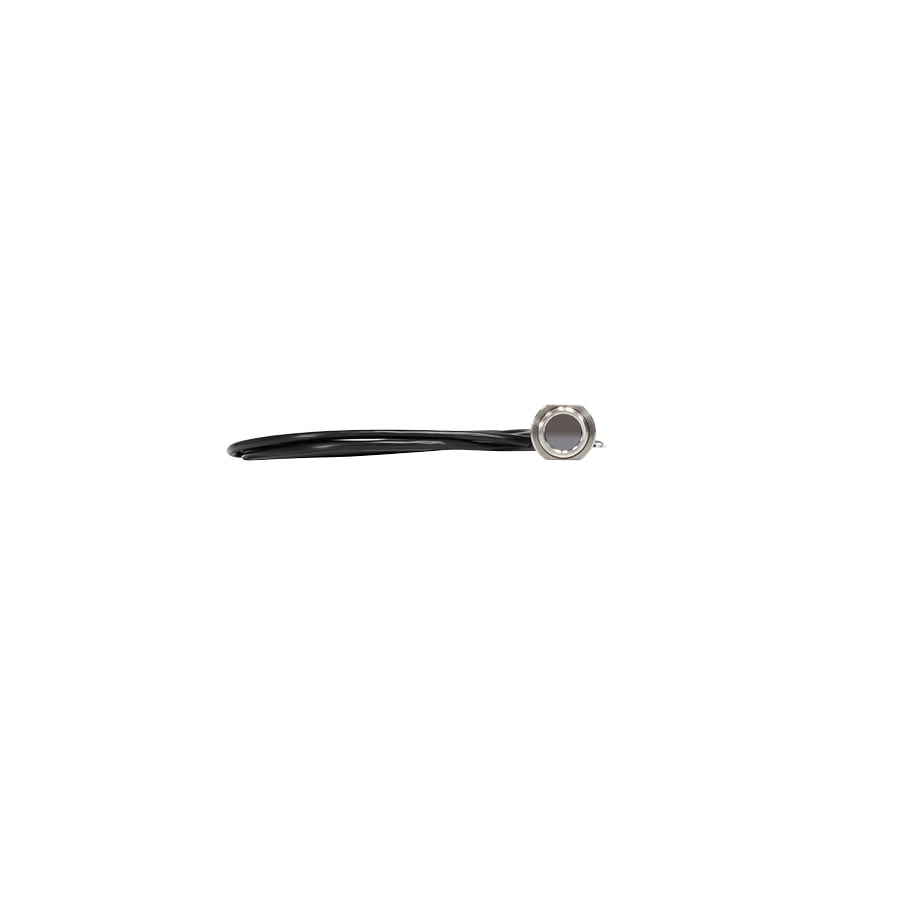

- 2000.20.019PC151MT-0 INFRARED SENS. SPOT 15:1 optics 0 to 250°C 4-20mA Cable 1mt
- 2000.20.022PC151HT-0 INFRARED SENS. SPOT 15:1 optics 0 to 500°C range 4-20mA
- 2000.20.033PC151LT-0 INFRARED SENS. SPOT 15:1 optics -20 to 100°C range 4-20mA
- 2000.20.021PC301HT-0 INFRARED SENS. SPOT 30:1 optics 0 to 500°C range 4-20mA
- 2000.20.024PC301MT-0 INFRARED SENS. SPOT 30:1 optics 0 to 250°C range 4-20mA
