Pressure transmitter for fluid polymer pressure measurements up to a temperature of 400°C with SIL2 and Performance Level 'c' certification
IBuilt-in electrical calibration.
Available for pressure ranges up to 2,000Bar.
|

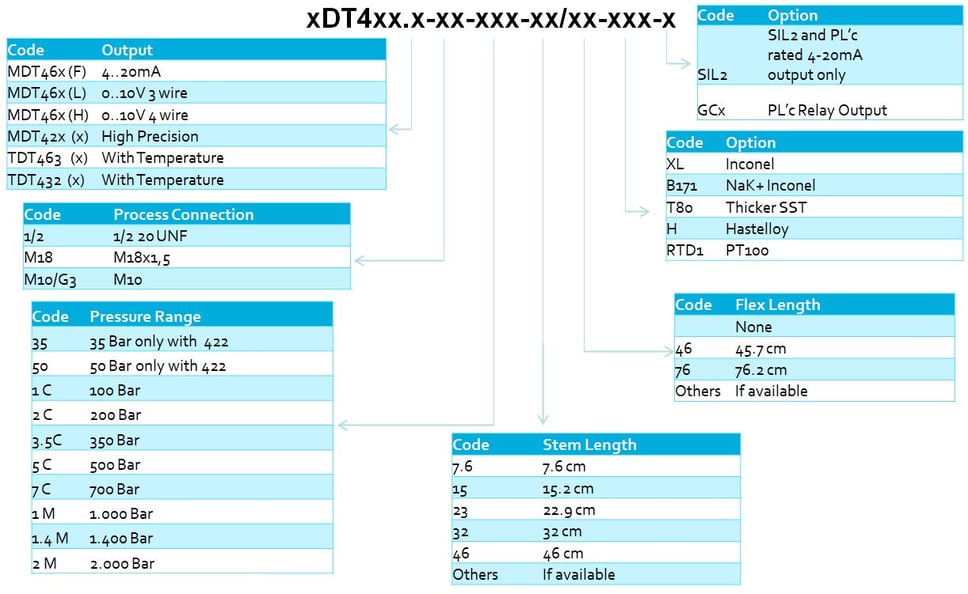

ORDERING CODES |
|
|---|---|
|
Accuracy@ 25°C |
+/- 0,5% FS |
| Sensor type |
TiA|N |
|
Diaphragm Temperature |
350 °C (for Rigid) - 400 °C (for Flex) |
|
Analogue output |
3,33 mV/V |
| Power supply |
2-Wire Connection - 16...30 V DC |
| Connector |
6 pin o Hirschmann |
|
Process connection |
1/2-20 UNF - M14 - M18 - M22 |
| Certifications |
CE |
