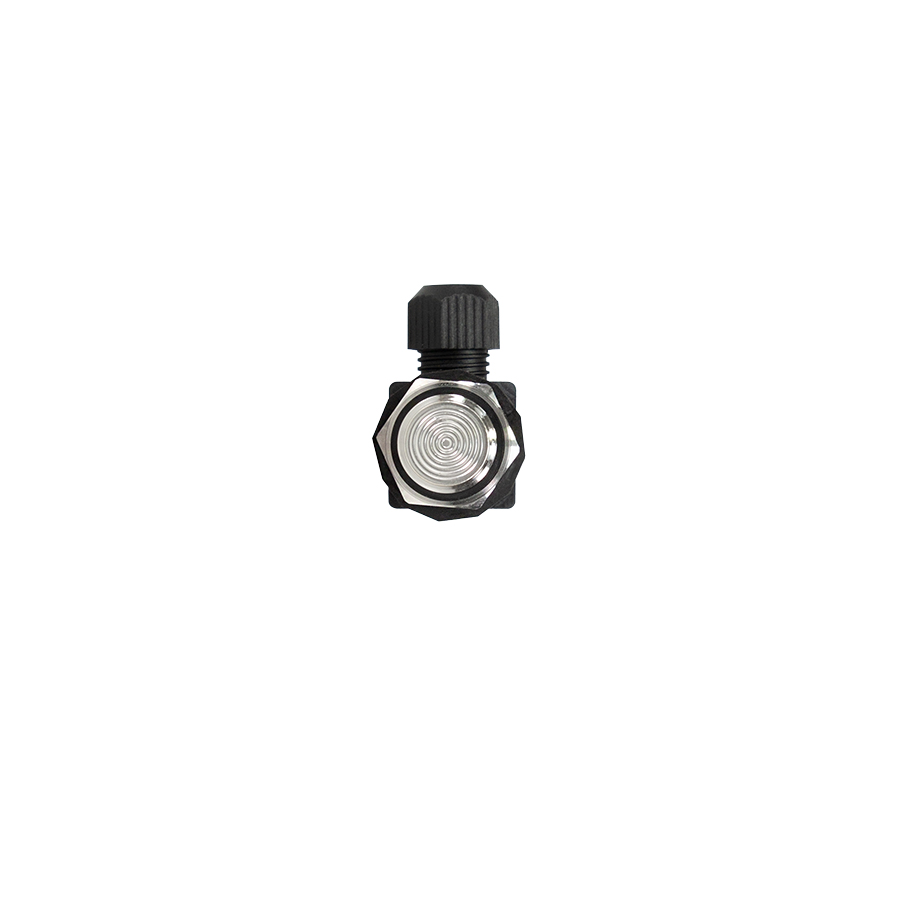

This series is suitable for food processing or industrial applications where solid residue or frozen water can clog the traditional hole and alterate the measurement.
- Measuring range-1.00 / 0..0.001 to 0..400 Bar (see Order codes)
- Sensor typeThin film on steel
- Electric connection5 Poles Male M12x1 / 4 Poles DIN 13650
- Sensor working temperature-20..+85°C (A2) / -40..+125°C (A1)
- Accuracy± 0,5% F.S. @25°C
- Outputs1 analogue 4..20 mA
|
Accuracy @ 25°C |
+/- 0,5% F.S. |
|
Sensor type |
Thin film on steel |
|
Working temperature |
-40...+125°C |
|
Analogue output |
4..20mA |
| Power supply |
2-Wire Connection - 15...30 V DC |

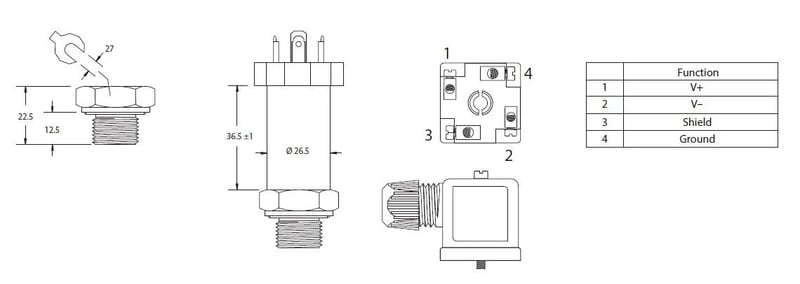

| Electric connection |
Pipette type - DIN43650-A |
|
Process connection |
1/2" G |
|
Material |
AISI316L |
| Sealing |
IP65 |
| Certifications |
CE |
- PPS-0.1BR-513A1Pressure transmitter - flush diaphragm - 0..100 mBar F.S. - process connection 1/2" - out 4..20 mA - conn. DIN 43650 Form A - (ex 2000.44.088)
- PPS-0.2BR-513A1Pressure transmitter - flush diaphragm - 0..200 mBar F.S. - process connection 1/2" - out 4..20 mA - conn. DIN 43650 Form A - (ex 2000.44.089)
- PPS-0.4BR-513A1Pressure transmitter - flush diaphragm - 0..400 mBar F.S. - process connection 1/2" - out 4..20 mA - conn. DIN 43650 Form A - (ex 2000.44.090)
- PPS-0.6BR-513A1Pressure transmitter - flush diaphragm - 0..600 mBar F.S. - process connection 1/2" - out 4..20 mA - conn. DIN 43650 Form A - (ex 2000.44.091)
- PPS-1BR-513A1Pressure transmitter - flush diaphragm - 0..1 Bar F.S. - process connection 1/2" - out 4..20 mA - conn. DIN 43650 Form A - (ex 2000.44.100)
- PPS-2.5BR-513A1Pressure transmitter - flush diaphragm - 0..2.5 Bar F.S. - process connection 1/2" - out 4..20 mA - conn. DIN 43650 Form A - (ex 2000.44.101)
- PPS-4BR-513A1Pressure transmitter - flush diaphragm - 0..4 Bar F.S. - process connection 1/2" - out 4..20 mA - conn. DIN 43650 Form A - (ex 2000.44.102)
- PPS-6BR-513A1Pressure transmitter - flush diaphragm - 0..6 Bar F.S. - process connection 1/2" - out 4..20 mA - conn. DIN 43650 Form A - (ex 2000.44.103)
- PPS-10BR-513A1Pressure transmitter - flush diaphragm - 0..10 Bar F.S. - process connection 1/2" - out 4..20 mA - conn. DIN 43650 Form A - (ex 2000.44.104)
- PPS-25BR-513A1Pressure transmitter - flush diaphragm - 0..25 Bar F.S. - process connection 1/2" - out 4..20 mA - conn. DIN 43650 Form A - (ex 2000.44.106)
- PPS-40BR-513A1Pressure transmitter - flush diaphragm - 0..40 Bar F.S. - process connection 1/2" - out 4..20 mA - conn. DIN 43650 Form A - (ex 2000.44.107)
- PPS-100BR-513A1Pressure transmitter - flush diaphragm - 0..100 Bar F.S. - process connection 1/2" - out 4..20 mA - conn. DIN 43650 Form A - (ex 2000.44.108)
- PPS--1/10BR-513A1Pressure transmitter - flush diaphragm - -1..10 Bar F.S. - process connection 1/2" - out 4..20 mA - conn. DIN 43650 Form A - (ex 2000.44.118)
