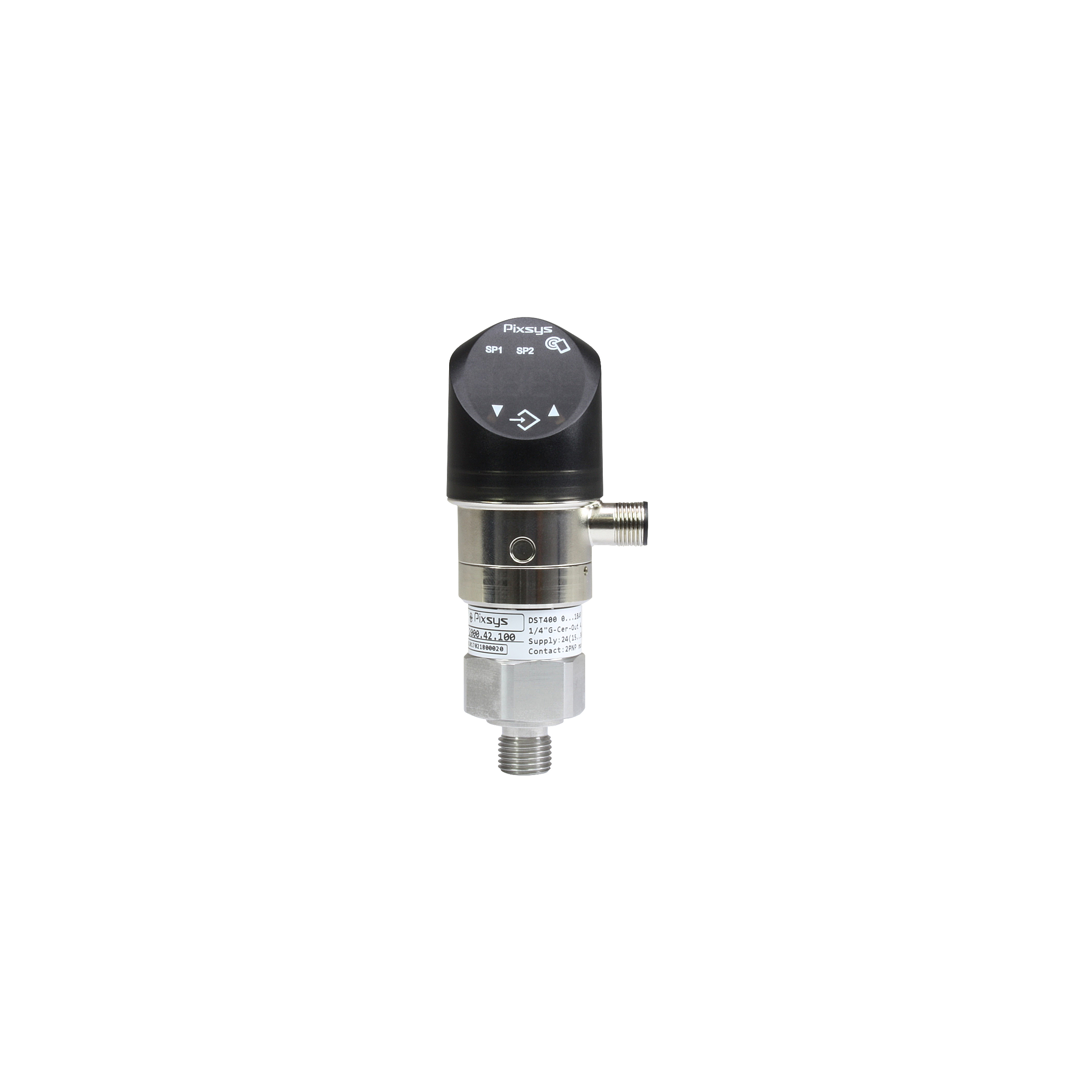

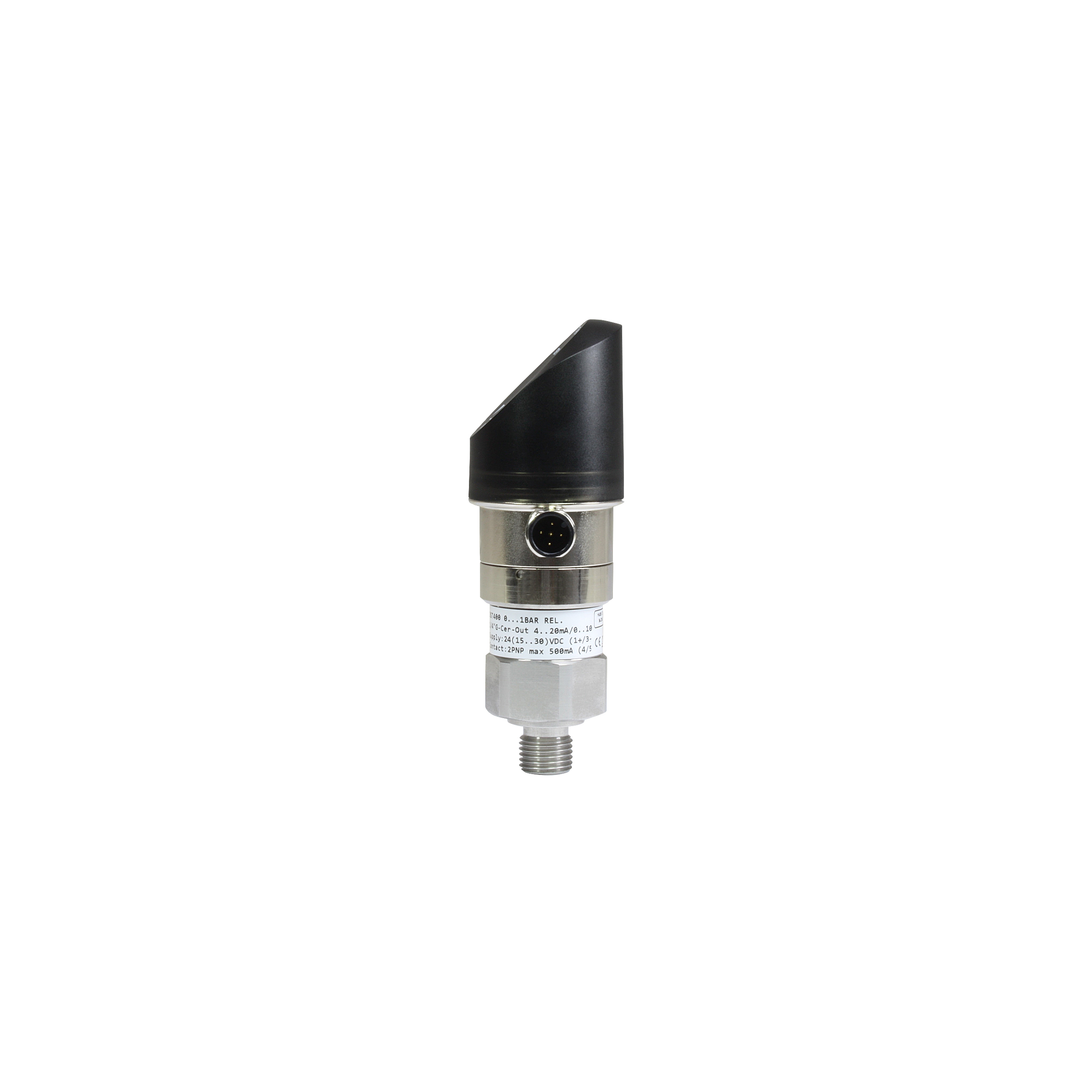

DST400 series integrates process reading and visualization with analogue retransmission of pressure value, allowing also to manage two activation thresholds by means of two PNP outputs.
This transmitters stands out in its product segment thanks to innovative and unique features: programming by NFC/RFID technology, independent rotation of display and electrical connector, selection of the analogue output by parameter as mA or Volt, scalability of measuring range till 50% of the nominal scale, integrated datalogger with programmable sampling time.
The transmitter is available alsowith thin film on steel sensor for increased resistance to pressure peaks.
MyPixsys App - same as already in use for Pixsys signal converters and STR indicators - allows quick programming by Android smartphones without wirings and particularly useful for on site updates.
|
ORDERING CODES |
2000.42.100/.103/.104/.106/.107/.108 |
2000.43..103/.104/.106/.107/.108/.110/.111/.112 |
2000.42.119/.122 |
|---|---|---|---|
|
Measuring range |
0..1 / 0..6 / 0..10 / 0..25 / 0..40 / 0..100 bar adjustable 50..100% F.S. |
0..1 / 0..6 / 0..10 / 0..25 / 0..40 / 0..100 / 0..250 / 0..400/ 0..600 bar adjustable 50..100% F.S. |
-1..3 / -1..0 bar adjustable 50..100% F.S. |
|
Accuracy @ 25°C |
+/- 0,5% F.S. | ||
|
Sensor type |
Thick film on ceramic AI203 |
Thin film on steel |
Thin film on ceramic |
|
Sensor working temperature |
- 25..+ 85°C | ||
|
Analogue output |
4..20 mA / 0..10 V | ||
|
Digital output |
2x PNP 500 mA | ||
| Power supply |
2-Wire Connection - 15...30 V DC | ||
| Power consumption |
0,8 W | ||
| Electric connection |
5 Pole Male M12x1 | ||
|
Pressure connection |
1/4" G | ||
|
Display/M12 connector orientation |
Independent rotation: display 335° / electrical connector 343° | ||
|
Material |
Sensor: galvanised steel; display: polycarbonate | ||
|
Display |
4 Digit | ||
| Sealing |
IP67 - FPM, NBR, EPDM | ||
| Certifications |
CE | ||
- Alarm function2 ON-OFF alarms with hysteresis, Unit display
- 2000.42.119DST400 Pressure trans. with display - Thin film on ceramic - -1..3 Bar - out 4..20mA/0..10V - Process conn. 1/4" - Conn. M12 5pin
- 2000.42.122DST400 Pressure trans. with display - Thin film on ceramic - -1..0 Bar - out 4..20mA/0..10V - Process conn. 1/4" - Conn. M12 5pin
- 2000.42.100DST400 Pressure trans. with display - Thin film on ceramic Al203 - 0..1 Bar - out 4..20mA/0..10V - Process conn. 1/4" - Conn. M12 5pin
- 2000.42.103DST400 Pressure trans. with display - Thin film on ceramic Al203 - 0..6 Bar - out 4..20mA/0..10V - Process conn. 1/4" - Conn. M12 5pin
- 2000.42.104DST400 Pressure trans. with display - Thin film on ceramic Al203 - 0..10 Bar - out 4..20mA/0..10V - Process conn. 1/4" - Conn. M12 5pin
- 2000.42.106DST400 Pressure trans. with display - Thin film on ceramic Al203 - 0..25 Bar - out 4..20mA/0..10V - Process conn. 1/4" - Conn. M12 5pin
- 2000.42.107DST400 Pressure trans. with display - Thin film on ceramic Al203 - 0..40 Bar - out 4..20mA/0..10V - Process conn. 1/4" - Conn. M12 5pin
- 2000.42.108DST400 Pressure trans. with display - Thin film on ceramic Al203 - 0..100 Bar - out 4..20mA/0..10V - Process conn. 1/4" - Conn. M12 5pin
- 2000.43.103DST400 Pressure trans. with display - Thin film on steel - 0..6 Bar - out 4..20mA/0..10V - Process conn. 1/4" - Conn. M12 5pin
- 2000.43.104DST400 Pressure trans. with display - Thin film on steel - 0..10 Bar - out 4..20mA/0..10V - Process conn. 1/4" - Conn. M12 5pin
- 2000.43.106DST400 Pressure trans. with display - Thin film on steel - 0..25 Bar - out 4..20mA/0..10V - Process conn. 1/4" - Conn. M12 5pin
- 2000.43.107DST400 Pressure trans. with display - Thin film on steel - 0..40 Bar - out 4..20mA/0..10V - Process conn. 1/4" - Conn. M12 5pin
- 2000.43.108DST400 Pressure trans. with display - Thin film on steel - 0..100 Bar - out 4..20mA/0..10V - Process conn. 1/4" - Conn. M12 5pin
- 2000.43.110DST400 Pressure trans. with display - Thin film on steel - 0..250 Bar - out 4..20mA/0..10V - Process conn. 1/4" - Conn. M12 5pin
- 2000.43.111DST400 Pressure trans. with display - Thin film on steel - 0..400 Bar - out 4..20mA/0..10V - Process conn. 1/4" - Conn. M12 5pin
- 2000.43.112DST400 Pressure trans. with display - Thin film on steel - 0..600 Bar - out 4..20mA/0..10V - Process conn. 1/4" - Conn. M12 5pin
