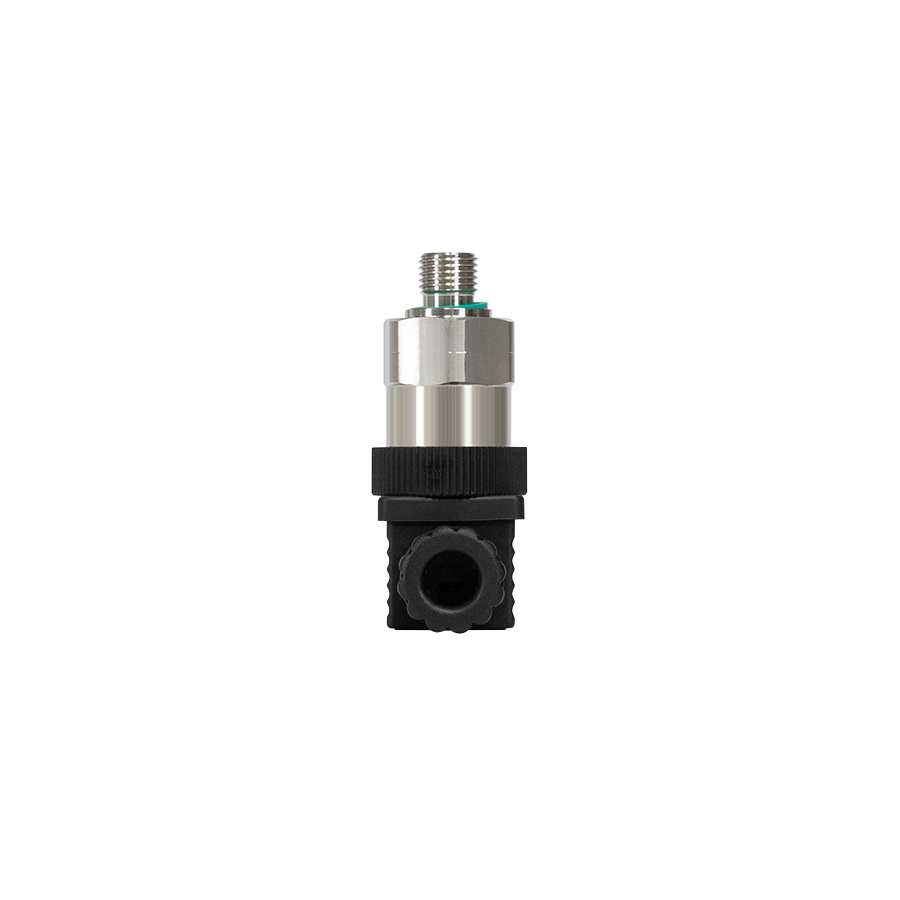

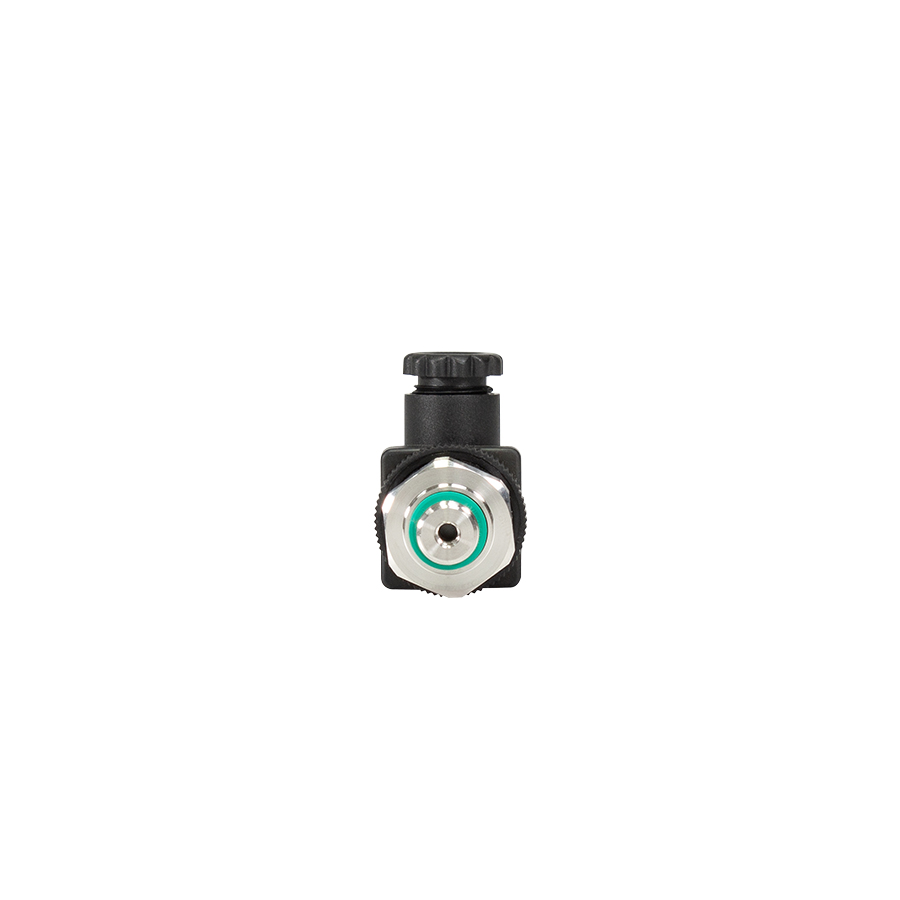

Relative pressure transmitter with ceramic-based thick film technology. Output signal 4...20mA or 0...10Volt. The transmitter power supply can be taken from the Pixsys controller. The steel housing, 1/4 "G or 1/4 "NPT thread and DIN pipette connector make field installation easy.
Ideal for hydraulic or oil hydraulic applications with pressures up to 100 Bar requiring good accuracy and repeatability. For pressures over 100 Bar, the NAT series is more suitable, as its lack of internal O.Ring seals allows excellent resistance to system overpressure or pressure peaks with a wide range of fluids.
|
ORDERING CODES |
2000.40.100/.108 |
2000.40.119 |
2000.40.122 |
|---|---|---|---|
|
Measuring range |
0..1 / 0..2,5 / 0..6 / 0..10 / 0..16 / 0..25 / 0..40 / 0..100 bar |
-1..3 bar |
-1..0 bar |
|
Accuracy @ 25°C |
+/- 0,5% F.S. |
||
|
Sensor type |
Thin film on ceramic (Al2/O3) |
||
|
Operating temperature |
-25...+125°C |
||
|
Analogue output |
4..20mA |
||
| Power supply |
2-Wire Connection - 9...30 V DC |
||
| Electric connection |
Pipette type- DIN43650-A |
||
|
Process connection |
1/4" G |
||
|
Material |
AISI316L |
||
| Sealing |
IP65 |
||
| Certifications |
CE |
||
- 2000.40.122Pressure transmitter - Ceramic sensor - -1..0 Bar - Process connection 1/4" - out 4..20 mA - conn. DIN 43650 Form A
- 2000.40.119Pressure transmitter - Ceramic sensor - -1..3 Bar - Process connection 1/4" - out 4..20 mA - conn. DIN 43650 Form A
- 2000.40.100Pressure transmitter - Ceramic sensor - 0..1 Bar - Process connection 1/4" - out 4..20 mA - conn. DIN 43650 Form A
- 2000.40.101Pressure transmitter - Ceramic sensor - 0..2.5 Bar - Process connection 1/4" - out 4..20 mA - conn. DIN 43650 Form A
- 2000.40.102Pressure transmitter - Ceramic sensor - 0..4 Bar - Process connection 1/4" - out 4..20 mA - conn. DIN 43650 Form A
- 2000.40.103Pressure transmitter - Ceramic sensor - 0..6 Bar - Process connection 1/4" - out 4..20 mA - conn. DIN 43650 Form A
- 2000.40.104Pressure transmitter - Ceramic sensor - 0..10 Bar - Process connection 1/4" - out 4..20 mA - conn. DIN 43650 Form A
- 2000.40.105Pressure transmitter - Ceramic sensor - 0..16 Bar - Process connection 1/4" - out 4..20 mA - conn. DIN 43650 Form A
- 2000.40.106Pressure transmitter - Ceramic sensor - 0..25 Bar - Process connection 1/4" - out 4..20 mA - conn. DIN 43650 Form A
- 2000.40.107Pressure transmitter - Ceramic sensor - 0..40 Bar - Process connection 1/4" - out 4..20 mA - conn. DIN 43650 Form A
- 2000.40.108Pressure transmitter - Ceramic sensor - 0..100 Bar - Process connection 1/4" - out 4..20 mA - conn. DIN 43650 Form A
