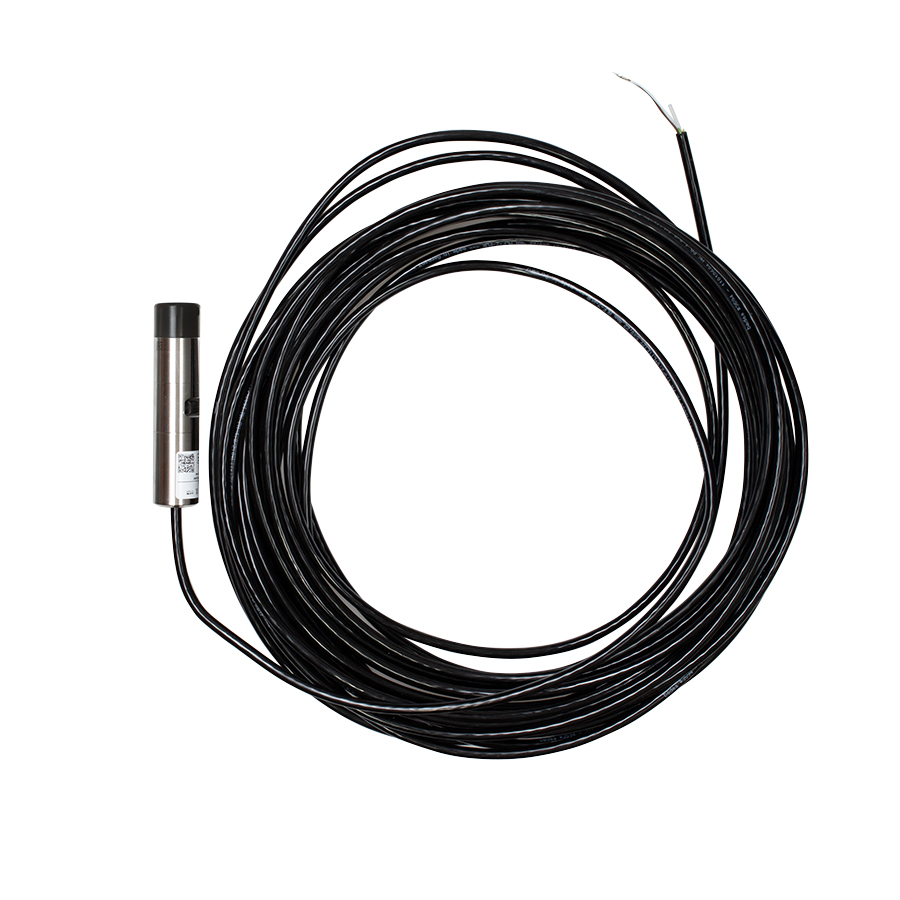

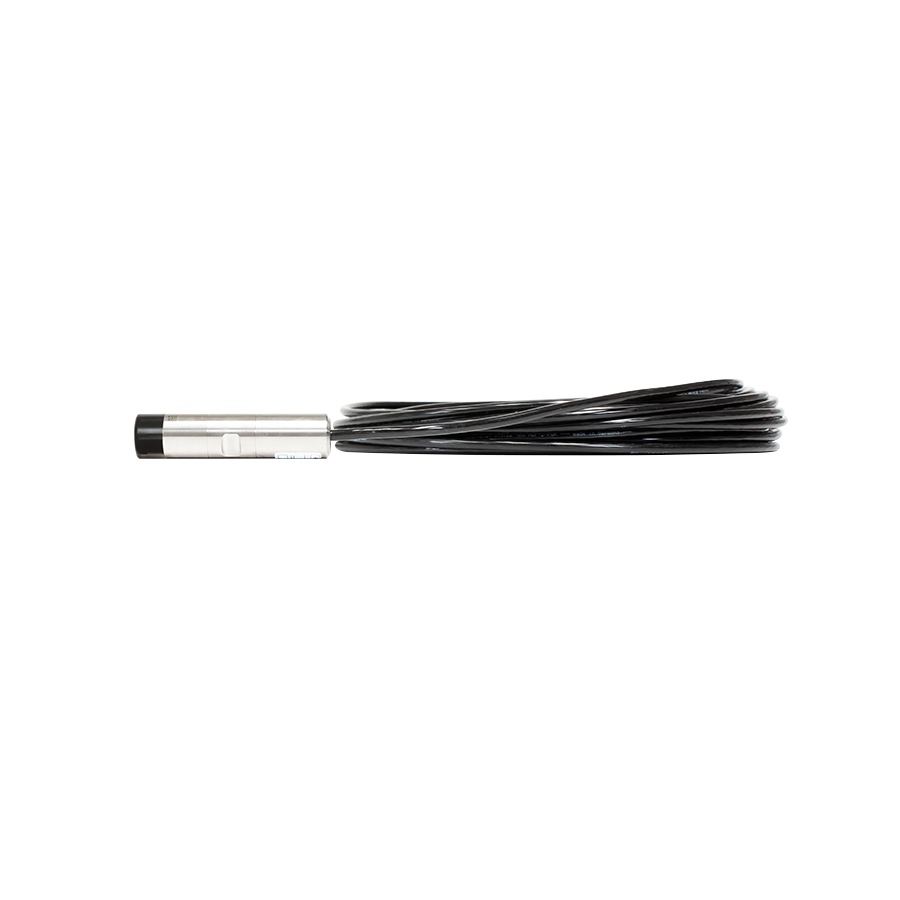

This relative-pressure transmitter with piezo-resistive sensor suitable for low and high pressure ranges.
Steel and titanium body is particularly robust and suitable to achieve level measurement on wells, aquifers, reservoirs, sewage treatment plants, lakes and rivers with measurement in both mBar/Bar and m/H2O.

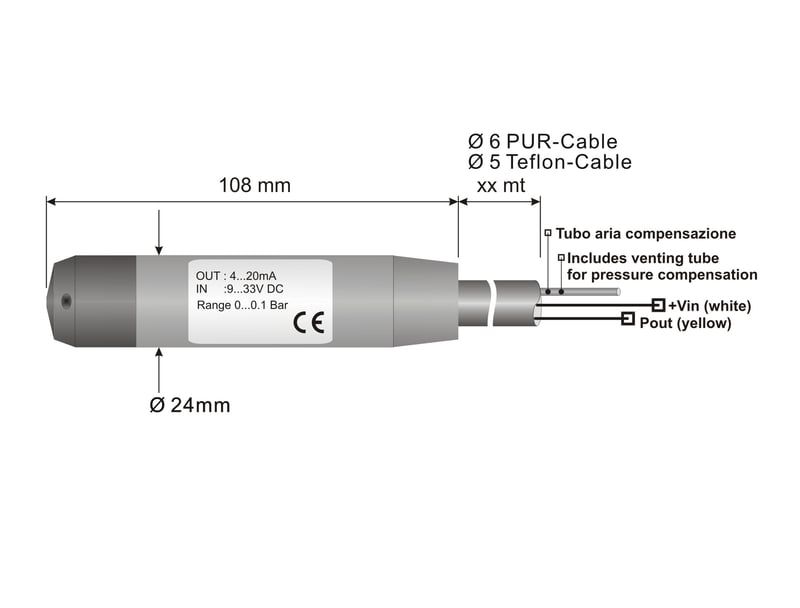

The PUR connecting cable is suitable for the most severe conditions and is equipped with a compensation air tube.
|
ORDERING CODES |
2000.40.149 |
2000.40.150 |
2000.40.151 |
2000.40.152 |
2000.40.155 |
|---|---|---|---|---|---|
|
Measuring range |
0..200 mbar |
0..400 mbar |
0..500 mbar |
0..600 mbar |
0..1 bar |
|
Accuracy @ 25°C |
+/- 0,3% F.S. | ||||
|
Sensor type |
ceramic film | ||||
|
Working temperature |
-25...+80°C | ||||
|
Analogue output |
4..20mA | ||||
| Power supply |
2-Wire Connection- 9...33 V DC | ||||
| Wire type | PUR - Length 15m | ||||
|
Process connection |
- | ||||
|
Material |
AISI316L | ||||
| Sealing |
IP68 | ||||
| Certifications |
EN61000-4-2/-3/-4/-5/-6 , Marine certification GL, CE | ||||
- 2000.40.149Subm. pressure transmitter - Piezo-resistive ceramic sensor - 0..200 mBar - out 4..20 mA
- 2000.40.150Subm. pressure transmitter - Piezo-resistive ceramic sensor - 0..400 mBar - out 4..20 mA
- 2000.40.151Subm. pressure transmitter - Piezo-resistive ceramic sensor - 0..500 mBar - out 4..20 mA
- 2000.40.152Subm. pressure transmitter - Piezo-resistive ceramic sensor - 0..600 mBar - out 4..20 mA
- 2000.40.155Subm. pressure transmitter - Piezo-resistive ceramic sensor - 0..1 Bar - out 4..20 mA
