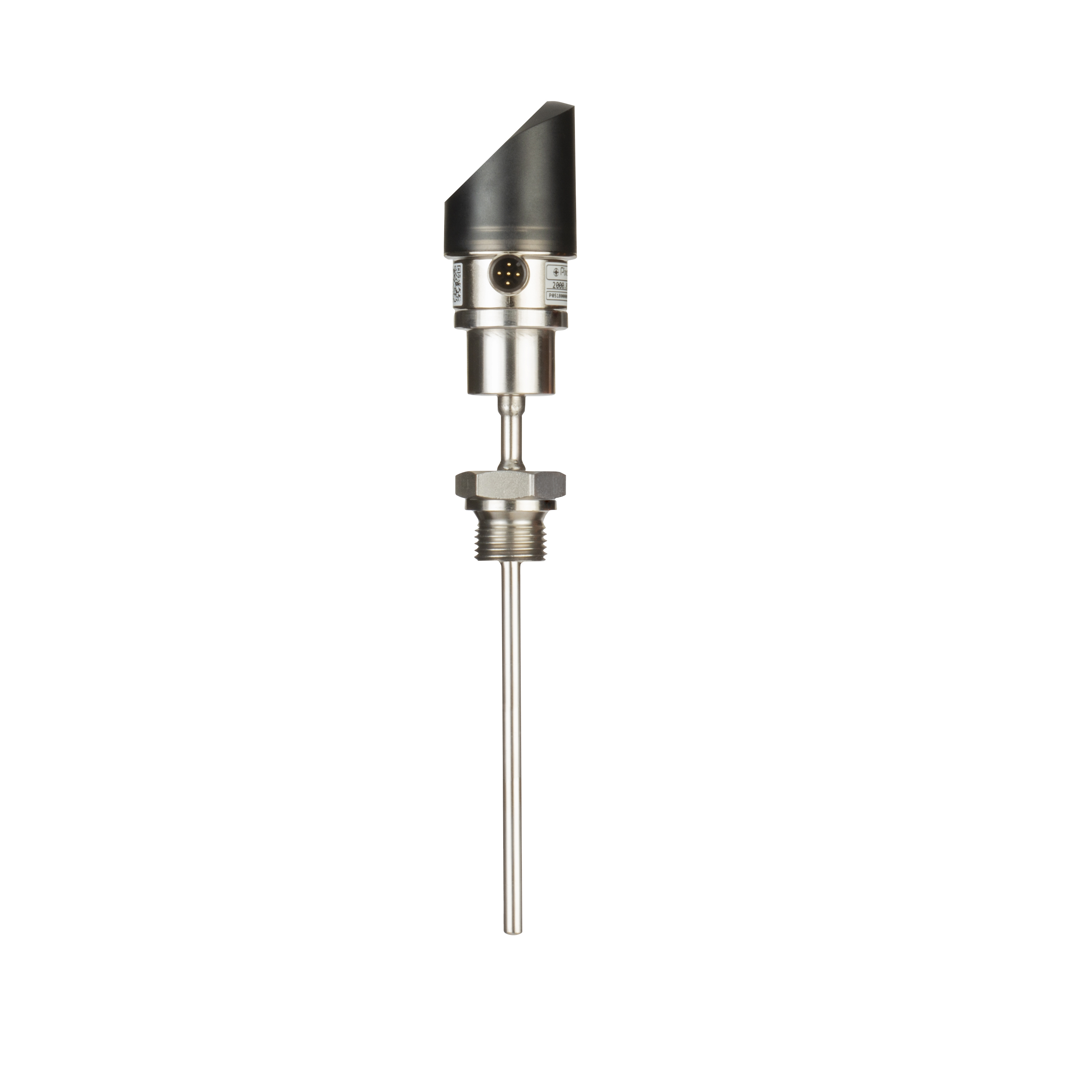

DST100 transmitter integrates reading, visualization and analogue retransmission of temperature value, allowing also to manage two activation/alarm thresholds by means of two PNP outputs.
This transmitters stands out in its product segment thanks to innovative and unique features: programming by NFC/RFID technology, independent rotation of display and electrical connector, selection of the analogue output by parameter as mA or Volt, scalability of measuring range till 50% of the nominal scale, integrated datalogger with programmable sampling time.
MyPixsys App - same as already in use for Pixsys signal converters and STR indicators - allows quick programming by Android smartphones without wirings and particularly useful for on site updates.
|
ORDERING CODES | 2000.01.002/.004 - 2000.02.002/.004 - 2000.03.002/.004 - 2000.15.002/.004 |
|---|---|
|
Measuring range | -50°..+150°C configurable via software |
|
Accuracy @ 25°C |
+/- 0,5% F.S. |
|
Sensor type | PT1000 |
|
Operating temperature |
- 25..+ 85°C |
|
Analogue output |
4..20 mA / 0..10 V configurable |
|
Digital output |
2x PNP 500 mA |
| Power supply |
2-Wire Connection - 15...30 V DC |
| Power consumption |
0,8 W |
| Electric connection |
M12 5 Poles |
|
Pressure connection | 1/8" G - 1/4" G - 1/2" G |
|
Display/M12 connector orientation |
Independent rotation: display 335° / electrical connector 343° |
|
Material |
Sensor: galvanised steel; display: polycarbonate |
|
Display |
4 Digit 1..3 decimal points |
| Sealing |
IP65 |
| Certifications |
CE |
- Analogue outputSelectable as mA, Volt
- Measuring unitSelectable Celsius/ Fahrenheit
- DataloggerRing buffer: 3518 data points - sampling time: 0.1 ... 999.9 s, Off (0)
- Software protectionsCommand setpoints / alarms - Password for parameter access
- Programmingvia NFC/RFID - Android App MyPixsys
- 2000.01.004DST100 TEMP. TRANSM. + DISPLAY 6x200-A316-1/2"/F M12 RANGE -50°+150°
- 2000.02.002DST100 TEMP. TRANSM. + DISPLAY 6x100-A316-1/4"/F M12 RANGE -50°+150°
- 2000.02.004DST100 TEMP. TRANSM. + DISPLAY 6x200-A316-1/4"/F M12 RANGE -50°+150°
- 2000.03.002DST100 TEMP. TRANSM. + DISPLAY 6x100-A316-1/8"/F M12 RANGE -50°+150°
- 2000.03.004DST100 TEMP. TRANSM. + DISPLAY 6x200-A316-1/8"/F M12 RANGE -50°+150°
- 2000.15.002DST100 TEMP. TRANSM. + DISPLAY 6x100-A316-1/4" NPT/S- M12 R. -50°+150°
- 2000.15.004DST100 TEMP. TRANSM. + DISPLAY 6x200-A316-1/4" NPT/S- M12 R. -50°+150°
