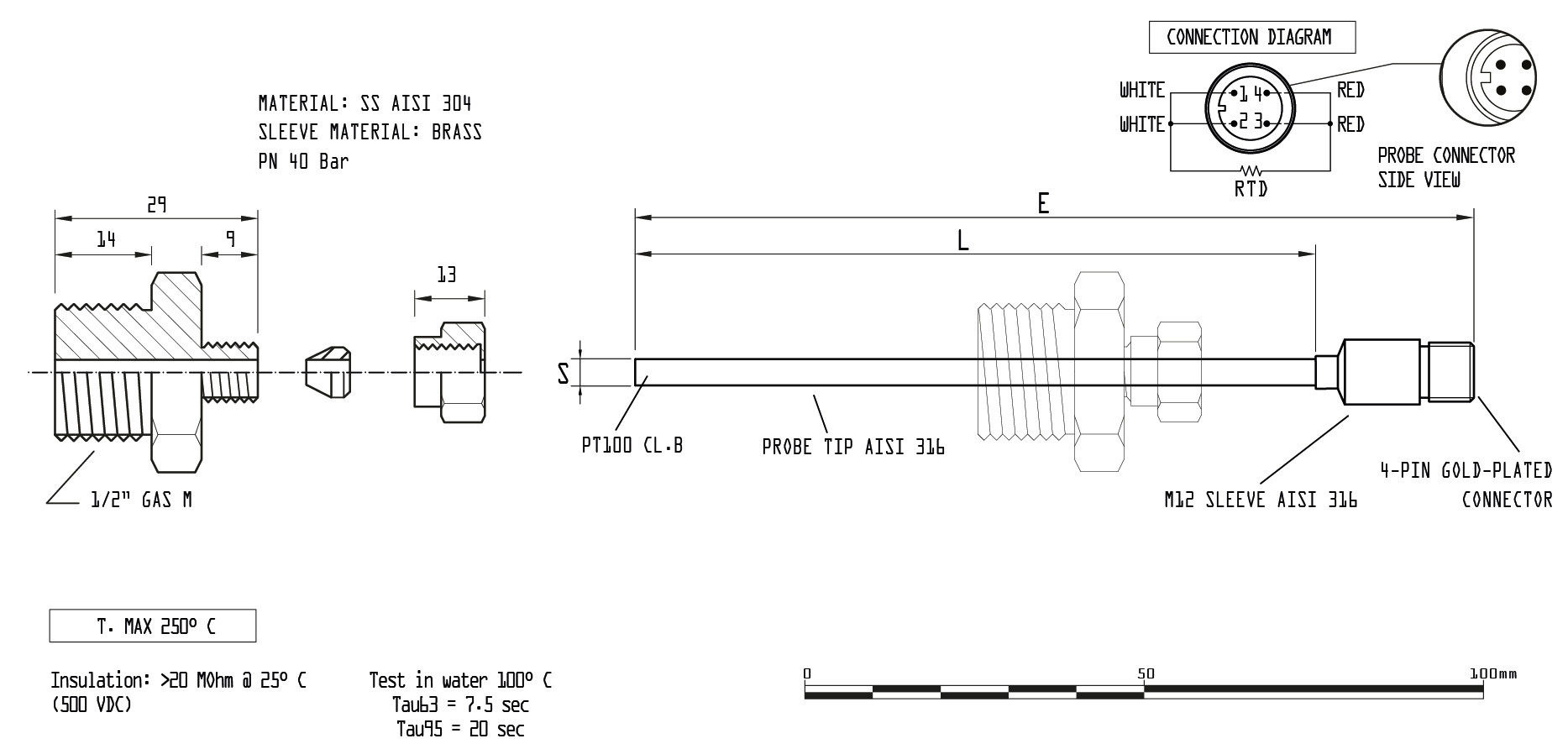

The PT100/PT1000 sensor uses a platinum resistive element for accurate temperature measurement. The M12 screw connector ensures a reliable and stable connection between the various devices, minimising interference and noise. Wiring structured in this way ensures a flexible and easily modifiable infrastructure that can interface with different technologies and applications. It is also easy to install and remove without having to cut or solder cables reducing downtime and maintenance costs.
- Stem diameter6 mm
- Immersion materialSteel AISI 316L
- Internal insulationSensor embedded in thermal silicone paste 200°C.
- SensorPT100 class B (+/- 0,3°C at 25°C)
- Response timeTau63 = 7,5 seconds (BS 1904/1984/CEI60751)
- SealingIP66
- Measuring range-100 ... +150°C (max 250°C with Teflon for insulation)
- Electrical connectionConnector M12 4 poles (Hirschmann)
- Connection to processPress fit sliding connection, 1/4" Gas or 1/2" Gas
- PTS-1B-6x050-B0MTemperature sensor PT100B - Ø 6mm x 50mm - AISI316 - Conn. M12 4pin - (ex 2000.00.471)
- PTS-1B-6x100-B0MTemperature sensor PT100B - Ø 6mm x 100mm - AISI316 - Conn. M12 4pin - (ex 2000.00.286)
- PTS-1B-6x150-B0MTemperature sensor PT100B - Ø 6mm x 150mm - AISI316 - Conn. M12 4pin - (ex 2000.00.485)
- PTS-1B-6x250-B0MTemperature sensor PT100B - Ø 6mm x 200mm - AISI316 - Conn. M12 4pin - (ex 2000.00.422)
- PTS-1B-6x050-BCMTemperature sensor PT100B - Ø 6mm x 50mm - AISI316 - Process conn. 1/2" sliding - Conn. M12 4pin
- PTS-1B-6x100-BCMTemperature sensor PT100B - Ø 6mm x 100mm - AISI316 - Process conn. 1/2" sliding - Conn. M12 4pin
- PTS-1B-6x150-BCMTemperature sensor PT100B - Ø 6mm x 150mm - AISI316 - Process conn. 1/2" sliding - Conn. M12 4pin
- PTS-1B-6x200-BCMTemperature sensor PT100B - Ø 6mm x 200mm - AISI316 - Process conn. 1/2" sliding - Conn. M12 4pin
- PTS-KB-6x050-B0MTemperature sensor PT1000B - Ø 6mm x 50mm - AISI316 - Conn. M12 4pin
