PT100 | PTS Thermoresistance with cable and anti-kink spring

The PT100 sensor uses a platinum resistive element for accurate temperature measurement.

The probe is available in different sizes and formats; the cable has an anti-kink spring and is supplied in different lengths and materials to meet the needs of adapting to different environmental conditions of use.
Request Information →

Request Information

×

to unlock downloads ACCEPT COOKIES
  • Sheath diameter
    6 mm
  • Immersion material
    Acciaio AISI 304
  • Internal insulation
    MgO Magnesium oxide > 20MOhm @25°C
  • Sensor
    PT100 B class (+/- 0,3°C a 25°C)
  • Response time
    6,5 seconds (BS 1904/1984/CEI60751)
  • Sealing
    IP66
  • Measuring range
    -100 ... +250°C
  • Cable
    GSC Silicone, TTS
  • Cable length
    3m

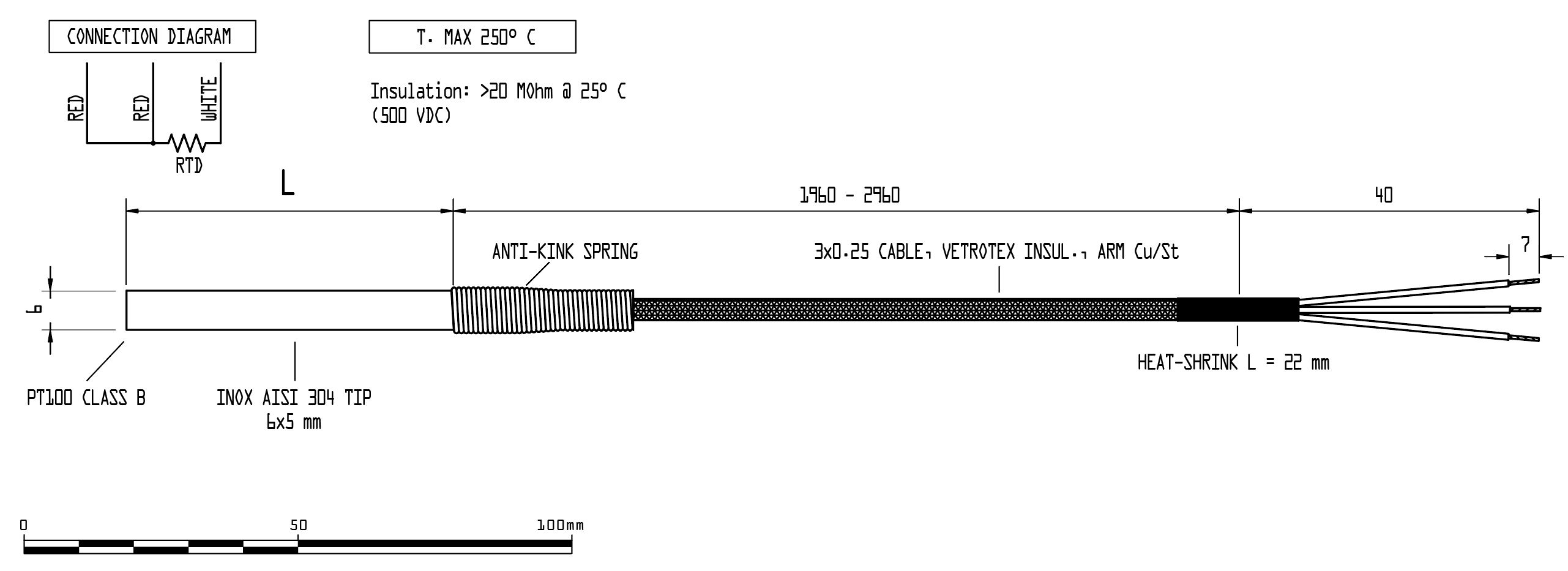

pts-a03pts-a05



  • PTS-1B-6x050-A01
    Temperature sensor PT100B - Ø 6mm x 50mm - AISI304
    cable 2m GSC Silicone
    link locator link pixsys
  • PTS-1B-6x100-A01
    Temperature sensor PT100B - Ø 6mm x 100mm - AISI304
    cable 2m GSC Silicone
    link locator link pixsys
  • PTS-1B-6x150-A01
    Temperature sensor PT100B - Ø 6mm x 150mm - AISI304
    cable 2m GSC Silicone - (ex 2000.00.216)
    link locator link pixsys
  • PTS-1B-6x200-A01
    Temperature sensor PT100B - Ø 6mm x 200mm - AISI304
    cable 2m GSC Silicone - (ex 2000.00.429)
    link locator link pixsys
  • PTS-1B-6x050-A05
    Temperature sensor PT100B - Ø 6mm x 50mm - AISI304
    cable 3m GSC Silicone - (ex 2000.00.039 - 2000.90.039)
    link locator link pixsys link shop
  • PTS-1B-6x100-A05
    Temperature sensor PT100B - Ø 6mm x 100mm - AISI304
    cable 3m GSC Silicone - (ex 2000.00.001 - 2000.90.001)
    link locator link pixsys link shop
  • PTS-1B-6x150-A05
    Temperature sensor PT100B - Ø 6mm x 150mm - AISI304
    cable 3m GSC Silicone - (ex 2000.00.146)
    link locator link pixsys link shop
  • PTS-1B-6x200-A05
    Temperature sensor PT100B - Ø 6mm x 200mm - AISI304
    cable 3m GSC Silicone - (ex 2000.00.240)
    link locator link pixsys
  • PTS-1B-6x050-A03
    Temperature sensor PT100B - Ø 6mm x 50mm - AISI304
    cable 2m TTS
    link locator link pixsys
  • PTS-1B-6x100-A03
    Temperature sensor PT100B - Ø 6mm x 100mm - AISI304
    cable 2m TTS - (ex 2000.00.605)
    link locator link pixsys
  • PTS-1B-6x150-A03
    Temperature sensor PT100B - Ø 6mm x 150mm - AISI304
    cable 2m TTS - (ex 2000.00.548)
    link locator link pixsys
  • PTS-1B-6x200-A03
    Temperature sensor PT100B - Ø 6mm x 200mm - AISI304
    cable 2m TTS
    link locator link pixsys
  • PTS-1B-6x050-A07
    Temperature sensor PT100B - Ø 6mm x 50mm - AISI304
    cable 3m TTS - (ex 2000.00.153 - 2000.90.153)
    link locator link pixsys link shop
  • PTS-1B-6x100-A07
    Temperature sensor PT100B - Ø 6mm x 100mm - AISI304
    cable 3m TTS - (ex 2000.00.036 - 2000.90.036)
    link locator link pixsys link shop
  • PTS-1B-6x150-A07
    Temperature sensor PT100B - Ø 6mm x 150mm - AISI304
    cable 3m TTS - (ex 2000.00.052)
    link locator link pixsys
  • PTS-1B-6x200-A07
    Temperature sensor PT100B - Ø 6mm x 200mm - AISI304
    cable 3m TTS - (ex 2000.00.172)
    link locator link pixsys
