    NTC Thermistor

    NTC thermo-resistances are commonly used for temperature measurements in refrigeration and HVAC applications.

    Capsule is available in steel or resin-coated polypropylene

    Request Information →

    Request Information

    ×

    • PTS-N1-6X050-A01
    • PTS-N1-C6X15-Z02
    to unlock downloads ACCEPT COOKIES
    • Stem diameter
      6 mm
    • Immersion material
      Steel AISI 304 / Thermoplastic rubber (GOT)
    • Internal isolation
      MgO Magnesium Oxide > 20Mohm @ 25°C (500Vdc)
    • Sensor
      NTC10K beta 3435 +/-1%
    • Response time
      10" V=2m/sec (liquid) K (costant)= 10sec. water flow speed =2m/s
    • GSC cable
      Silicon rubber, operating temperature -40 ... 250°C
    • GOT cable
      Thermoplastic rubber -30 ... +105°C
    • Cable sealing
      Anti-bending spring 40 mm between cable and stem
    • Sealing
      IP55 / IP67 with resin
    • Measuring range
      -50°C ...+120°C
    • Certifications
      CE

    • PTS-N1-6X050-A01
      TEMP. SENSOR NTC-10K - Ø6x50MM - AISI316 - 1.5m TWO WIRES SILICONE CABLE - BETA3435
      link locator link pixsys

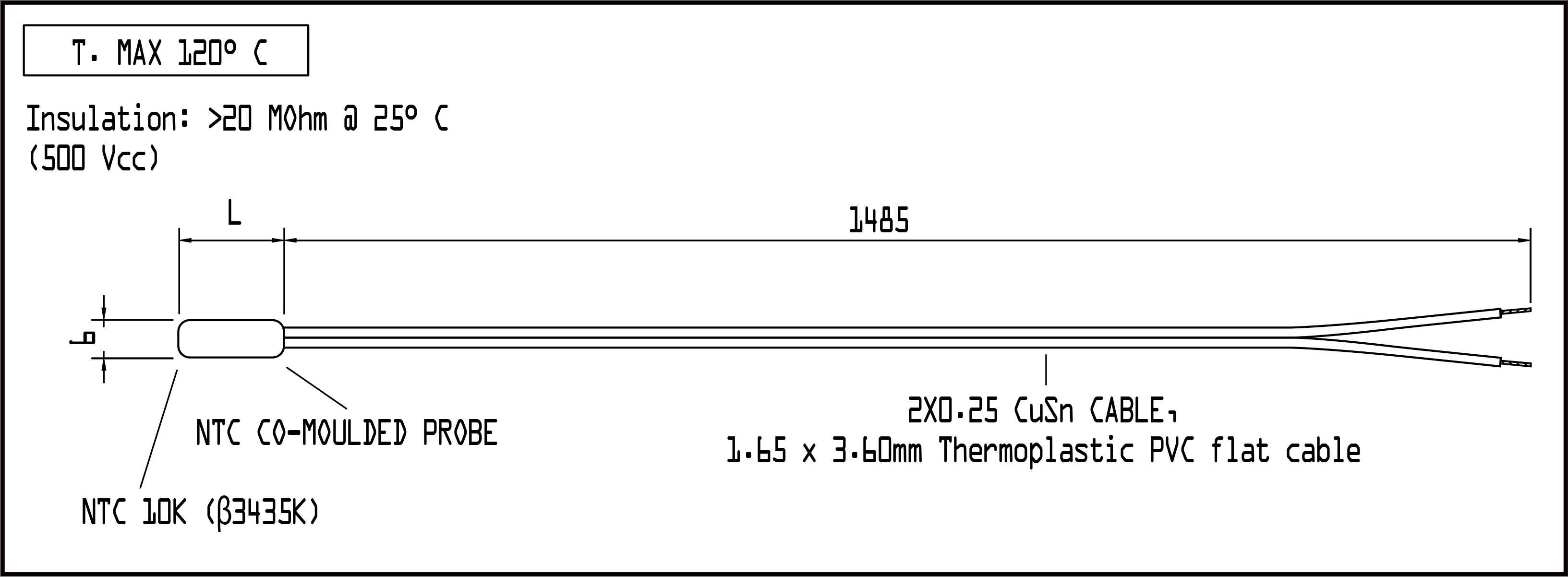

    • PTS-N1-C6X15-Z02
      TEMP. SENSOR NTC-10K CO-MOULDED - Ø6x15MM - 1.5m THERMOPLASTIC PVC CABLE - BETA3435
      link locator link pixsys
    • Fittings for temperature sensors

      Fittings for temperature sensors

    • Thermowells for temperature sensors

      Thermowells for temperature sensors
