    Thermocouples

    Pixsys provides a  wide range of thermocouples type J, K, S with different length, diameter, process connection to fit the most diverse applications.

    An extensive selection is available specifically for kilns/furnaces and also for plastics industry.

    Request Information →

    Request Information

    ×

    • Stem diameter
      6 mm
    • Immersion material
      Steel AISI 304 / AISI 316 / Inconel 600
    • Internal insulation
      MgO Magnesium Oxide > 20Mohm @ 25°C (500Vdc)
    • Sensor
      Thermocouple K (NiCr-NiAl / Cromel-Alumen), Wire 1,02mm, insulated junction - Thermocouple J (Fe-CuNi / iron-constantan), Wire 0,25mm, giunto caldo a massa
    • PVC cable
      PVC -30 ... +105°C
    • GSC cable
      Silicon rubber, operating temperature -40 ... 250°C
    • TTS cable
      Glass fiber, operating temperature -200 ... 500°C
    • Sealing
      40mm bend proof spring between cable and stem
    • Operating range
      A316 -100..+600°C / I600 -100..+800°C
    • Certifications
      CE

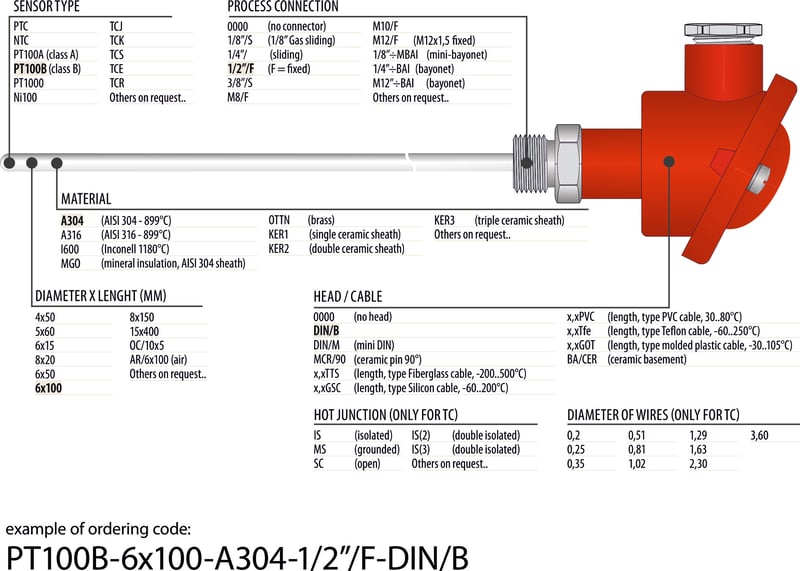

    Disegno_sonde

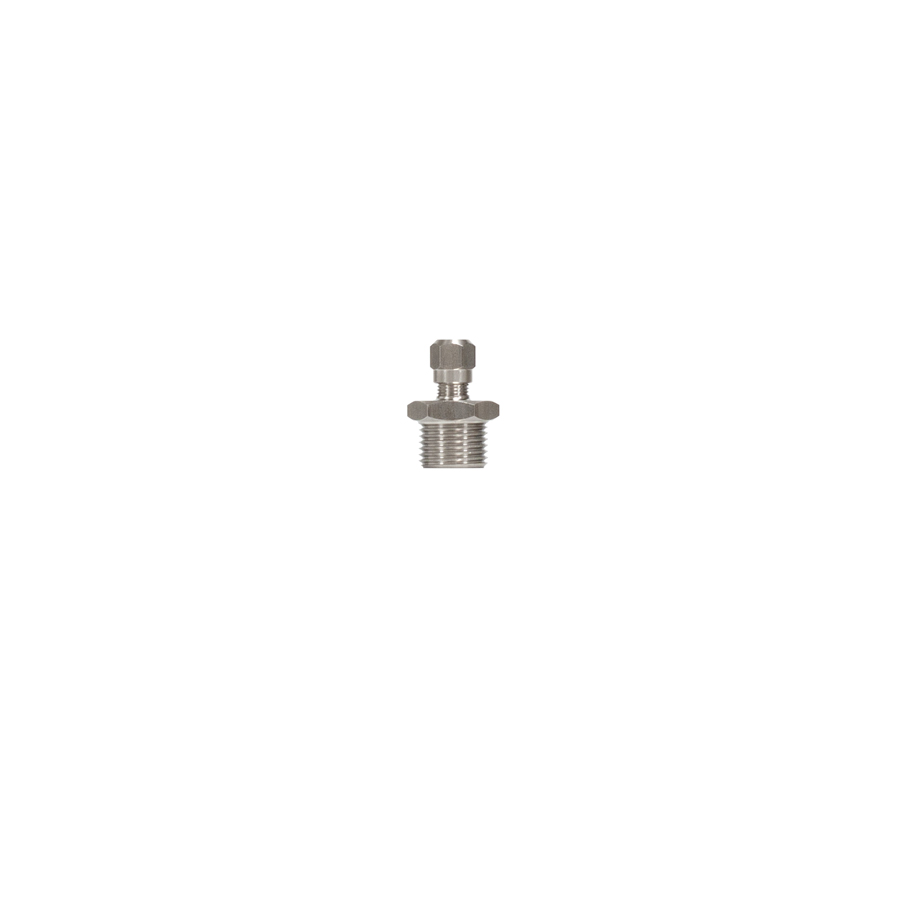

    • Fittings for temperature sensors

      Fittings for temperature sensors

    • Thermowells for temperature sensors

      Thermowells for temperature sensors
