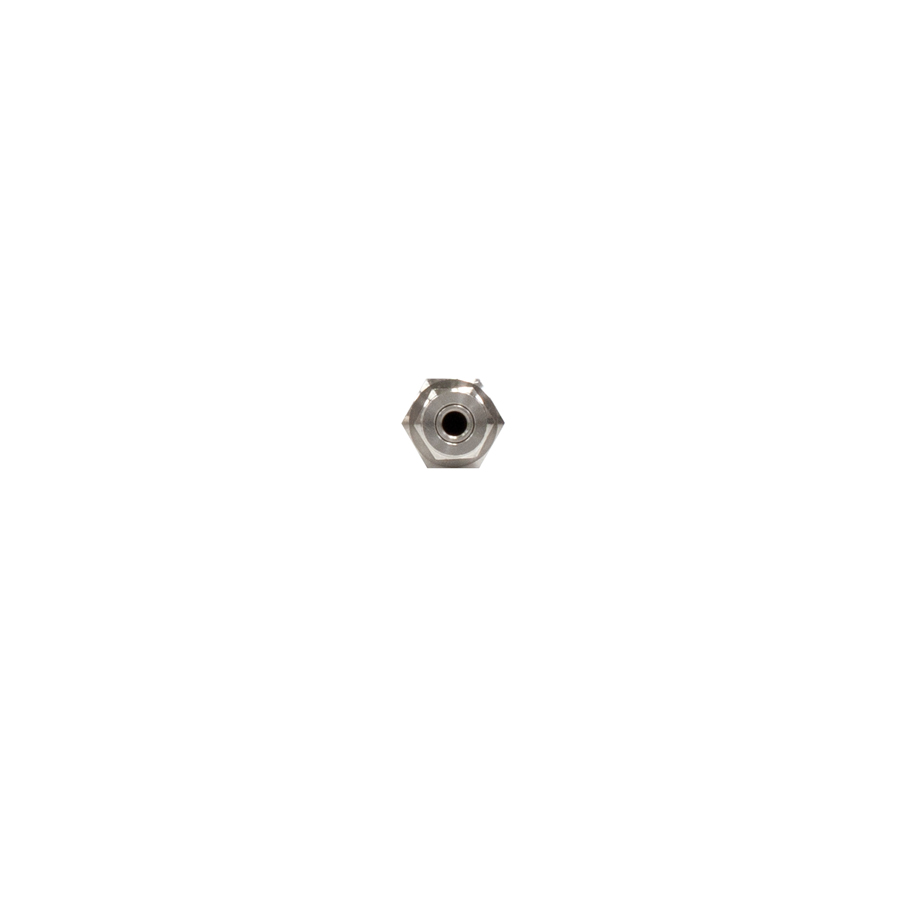

    Thermowells for temperature sensors

    Thermowells are used to isolate the measuring point, keeping the process separate from its surroundings. This way, if necessary, they allow quick and easy replacement of the sensor itself without interrupting the process.

    They are available in various designs, with different lengths and different types of process connections,

    Request Information →

    Request Information

    ×

    • Dimensions
      See datasheet for complete code
    • Material
      AISI304 - AISI316L
    • Weight
      Approx. 100..200 g
    • Working pressure
      20 bar (-100..300°C)
    • Operating conditions
      Temperature -100..500 °C
    • Certifications
      CE

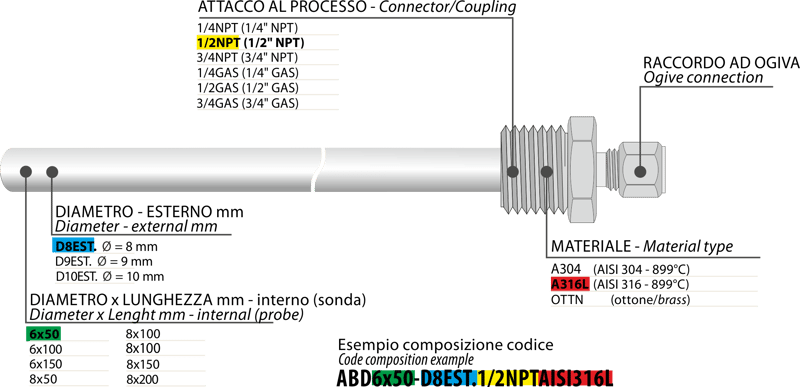

    disegno-POZZETTO
    • PTS-TW-6X050-B30
      THERMOWELL-ABD6X50-D8EST.1/2 GAS AISI316L - (ex 2000.30.043)
      link locator link pixsys
    • PTS-TW-6X057-B30
      THERMOWELL-ABD6X57-D8EST.1/2 GAS AISI316L - (ex 2000.30.056)
      link locator link pixsys
    • PTS-TW-6X200-B30
      THERMOWELL-ABD6X200-D8EST.1/2 GAS AISI316L - (ex 2000.30.044)
      link locator link pixsys
    • PTS-TW-6X257-B30
      THERMOWELL-ABD6X257-D8EST.1/2 GAS ASI316L - (ex 2000.30.055)
      link locator link pixsys
    • PTS-TW-6X500-B30
      THERMOWELL-ABD6X500-D8EST.1/2 GAS AISI316L - (ex 2000.30.050)
      link locator link pixsys
    • PTS-TW-6X050-B80
      THERMOWELL-ABD6X50-D8EST.1/2 NPT AISI316L - (ex 2000.30.031)
      link locator link pixsys
    • PTS-TW-6X060-B80
      THERMOWELL-ABD6X60-D8EST.1/2 NPT AISI316L - (ex 2000.30.036)
      link locator link pixsys
    • PTS-TW-6X100-B80
      THERMOWELL-ABD6X100-D8EST.1/2 NPT AISI316L - (ex 2000.30.017)
      link locator link pixsys
    • PTS-TW-6X150-B80
      THERMOWELL-ABD6X150-D8EST.1/2 NPT AISI316L - (ex 2000.30.046)
      link locator link pixsys
    • PTS-TW-6X160-B80
      THERMOWELL-ABD6X160-D8EST.1/2 NPT AISI316L - (ex 2000.30.037)
      link locator link pixsys
    • PTS-TW-6X200-B80
      THERMOWELL-ABD6X200-D8EST.1/2 NPT AISI316L - (ex 2000.30.018)
      link locator link pixsys
    • PTS-TW-6X300-B80
      THERMOWELL-ABD6X300-D8EST.1/2 NPT AISI316L - (ex 2000.30.019)
      link locator link pixsys
    • PTS-TW-6X400-B80
      THERMOWELL-ABD6X400-D8EST.1/2 NPT AISI316L - (ex 2000.30.020)
      link locator link pixsys
    • PTS-TW-6X500-B80
      THERMOWELL-ABD6X500-D8EST.1/2 NPT AISI316L - (ex 2000.30.021)
      link locator link pixsys
    • PTS-TW-8X200-B80
      THERMOWELL-ABD8X200-D10EST.1/2 NPT AISI316L - (ex 2000.30.022)
      link locator link pixsys
    • PTS-TW-6X040-BZZ
      THERMOWELL-ABD6X40-D8EST.1/2 M+F AISI316L PROCESS 1/2"M > PROBE 1/2" F - (ex 2000.30.015)
      link locator link pixsys
    • PTS-TW-6X100-BZZ
      THERMOWELL-ABD6X100-D9EST.1/2 M+F AISI316L PROCESS 1/2"M > PROBE 1/2" F - (ex 2000.30.015)
      link locator link pixsys
