SSR
SRP / SRDP

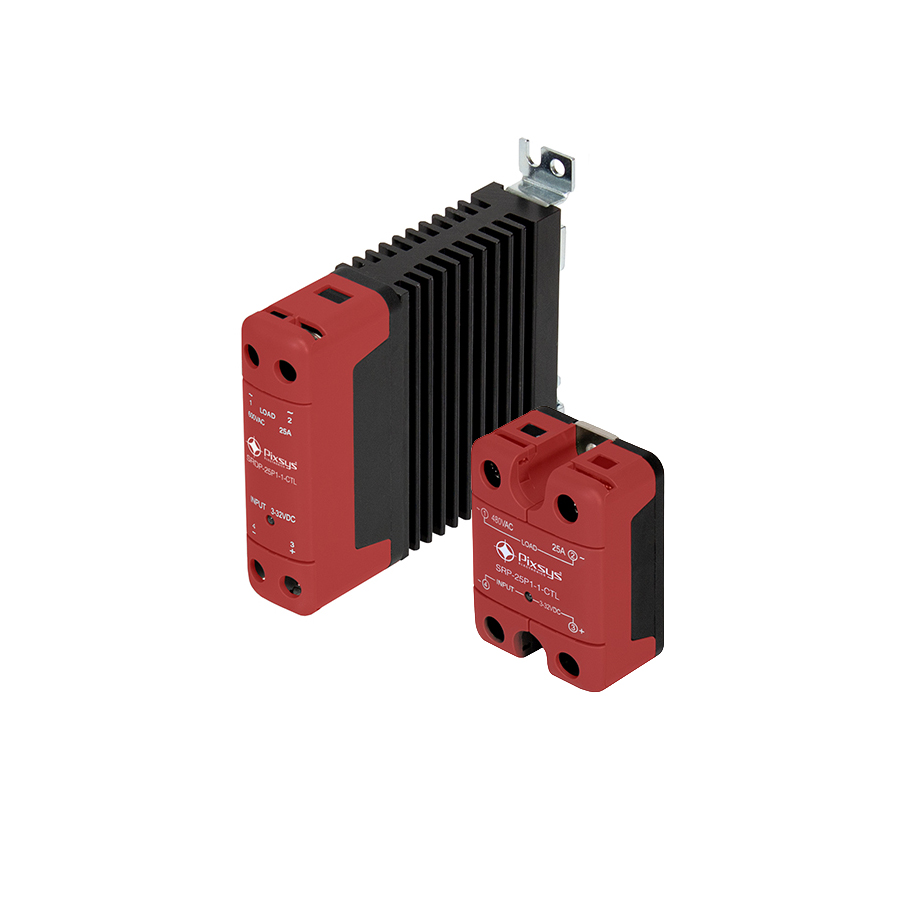

Compact format or Slim with integrated heatsink:
For current range up to 25A:
Control 4-32Vdc:
IP20 protection for terminal blocks and LEDs included
This range of Zero-Crossing type SSRs in compact format or Slim format with heatsink is suitable for controlling resitive loads, for a current range up to 25A.
Control voltage ranges from 4 to 32Vdc.
IP20 protection covers for terminals and indicator LEDs are included.
Ideal for cost-sensitive applications.
|
ORDERING CODES |
SRP-25P1-2-CTL |
SRDP-25P1-3-CTL |
|---|---|---|
|
Load current |
25 A |
25 A |
|
Output voltage |
24...480VAC - 1 phase |
24.. 600 VAC - 1 phase |
|
Control voltage |
4..32 V DC |
4-30 VDC |
|
Type of control terminal block |
Fixed screw |
Fixed screw |
|
Integrated heatsink |
NO |
YES |
|
Technology |
Zero-Crossing (with low zero-crossing level), for applications with resistive charge | |
|
Signaling Led | Control status LED | |
|
Protection | Against short-circuit on output | |
|
Sealing | IP20 on screw connection | |
| Certifications |
CE | |
- SRP-25P1-2-CTLSSR 25A/24-480VAC/CTRL 4-32VDC/LED/COVER TERMINAL BLOCKS IP20
- SRDP-25P1-3-CTLSSR 25A /24-600VAC/CTRL 4-32VDC/LED/COVER TERMINAL BLOCKS IP20
