TCT101 is available for different functionalities: Timer, Counter, Tachometer/Frequency counter.
TCT101-1ABC configurable in 5 operating modes: Timer-ON, Timer-OFF, Pause-Work, Oscillator, PWM (proportional time output), all with independent settings of the ON-OFF times.
TCT101-2ABC can be configured as single and double counter, incremental and decremental counter with the option of setting by external potentiometer
TCT101-3ABC frequency counter for Encoder Push-Pull/Line-Driver TTL, mono- or bi-directional up to 100kHz.
TCT101-4ABC-T free programmable for all the above functionalities as Timer /Counter/ Tachometer; provided with serial communication ModbusRTU for the transmission of setpoints, Times/Counts/Frequency values.
Programming is possible by keyboard or by Labsoftview software; Memory Cards are available to duplicate quickly all settings from one device to others.

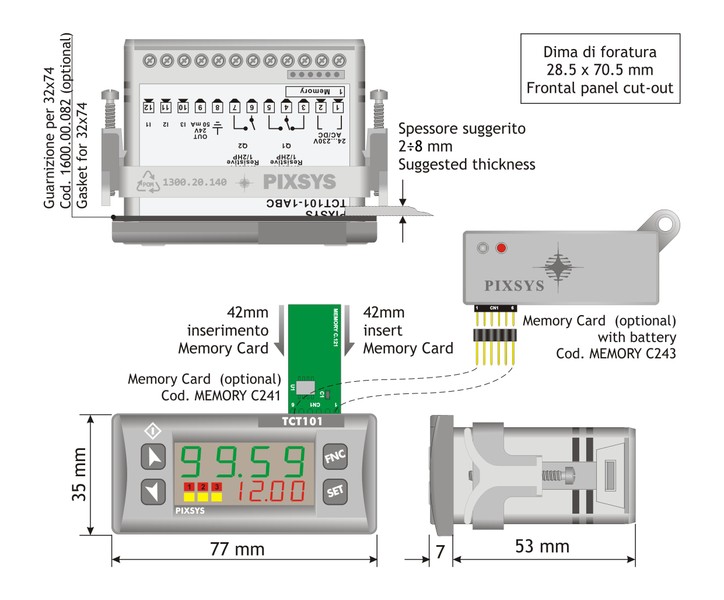

- Dimensions74 x 32 x 53 mm
- MaterialBox: Noryl UL94V1 self-extinguishing; Front panel: PC ABS UL94V0 self-extinguishing
- WeightApprox. 100 g
- SealingFront panel IP65, Box and terminal blocks: IP20
- Operating conditionsTemperature 0-45 °C, humidity 35..95 RU%
- CertificationsCE, UL
| ORDERING CODES | TCT101-1ABC | TCT101-2ABC | TCT101-3ABC | TCT101-4ABC-T |
|---|---|---|---|---|
| Use | Timer | Counter | Tachometer | Timer or Counter or Tachometer |
| Power supply | 24..230 V AC / DC ±15% 50/60 Hz - galvanic isolation 2,5KV | |||
| Power consumption | 3 Watt/VA | 2 Watt/VA | ||
| Display | 4 digits 0,4" green + 4 digits 0,3" red | 4 digits 0,4" green + 4 digits 0,3" red | ||
| Backup setpoints/counters | Value maintenance with rechargeable capacitor - Autonomy 7 days | |||
| Potentiometer analogue input | 1x5/10 KOhm to set setpoint (resolution 1000 points), overlapped to DI 3 | |||
| Digital inputs | 3x selectable as NPN - PNP - TTL, both on high / low level, rising / falling edge | |||
| Auxiliary output | 24VDC - max 30mA (alim. 24VAC), 40mA (alim. 24VDC), 60mA (alim. 110..230VAC) for sensor/encoder power supply | |||
| Relais outputs | 2x 5A - 250VAC resistive loads | 1x 5A - 250VAC resistive loads | ||
| Analogue output | - | - | ||
| Serial communication | - | RS485 (1200..115200 Baud) | ||
- Timer input selectionStart, Stop, Hold, Reset, Wait
- Campi scala timerProgrammable time bases (sec/100 , sec/10 , sec, min , hours)
- Data protectionLock of Command/Alarm Setpoints - Access to parameters by Password
- Communication protocolsModbus RTU
