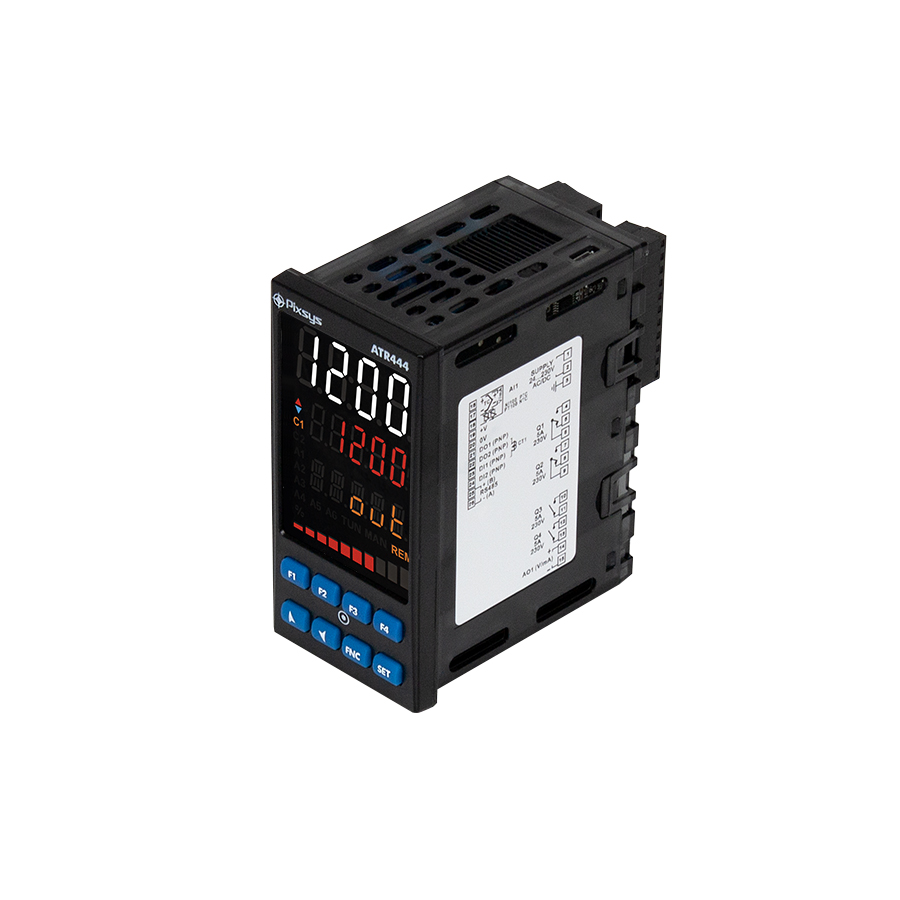

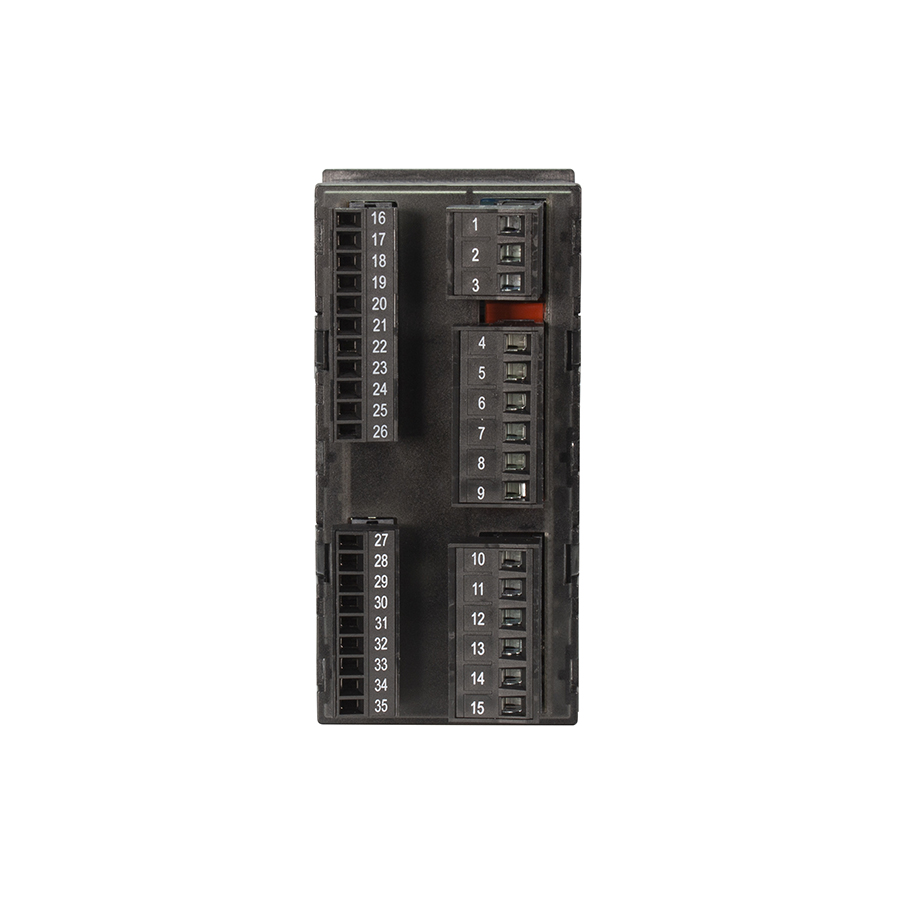

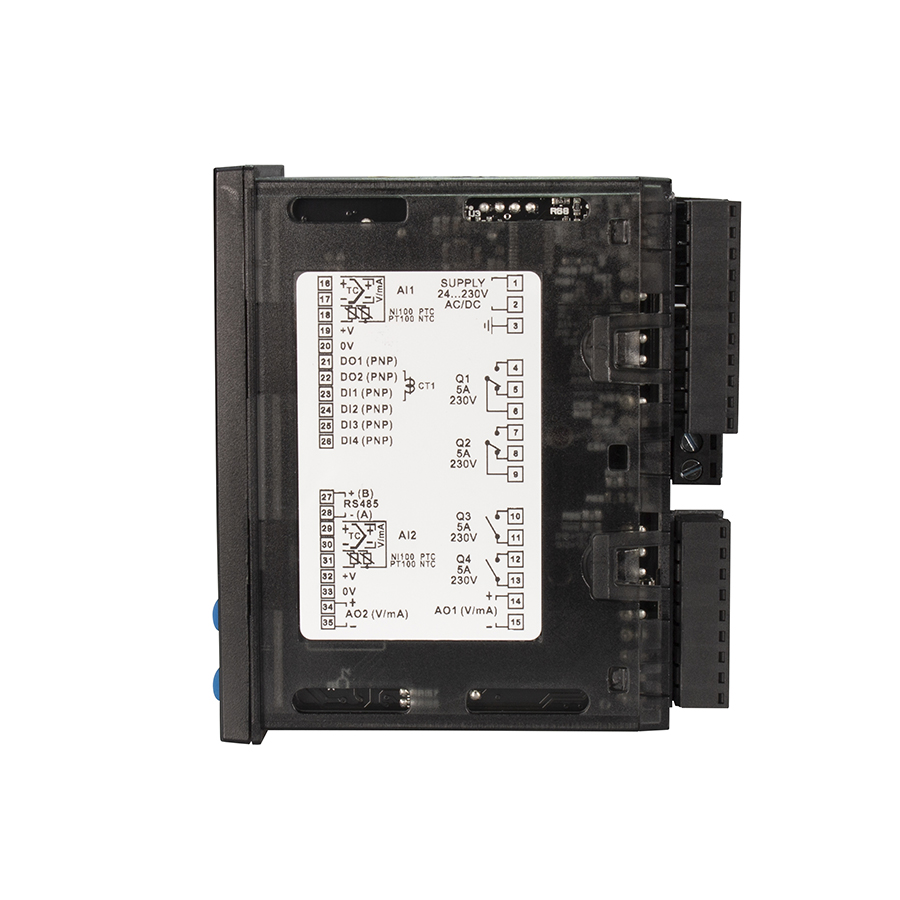

    ATR444 | PID Controller 48x96mm (1/8DIN)

    PID Controller ATR444 integrates all the features of the Pixsys Blue Line range of controllers.

    The wide alphanumeric display allows optimal visibility and clarity in all industrial environments, not only for process and alarm variables but also for scrolling textual status or event messages, as well as online help messages.

    The availability of an extended 8-key keypad allows dedicated function keys to be set up, making repetitive operations or functions that would be more time-consuming and complex for the operator directly accessible from the front.

    Smartphone programming mode with MyPixsys App uses NFC technology, with no need for wiring or dedicated hardware.

    Two universal analog inputs with the ability to set mathematical operations, a wide combination of digital and analog outputs, open-close functionality for motorized valves, multiple alarm and diagnostic modes, and Timer functions-the most comprehensive models in the ATR444 series support advanced applications that traditionally might require programmable logic.

    All versions also integrate programming mode for managing a cycle/profile with 12 segments.

    Connectivity includes RS485 serial and ModbusRTU protocol, with the possibility of also using the controller with the Pixsys CNV580 IIoT modem for remote monitoring of selected variables getting notifications via PixsysGuard App.

    Request Information →

    Request Information

    ×

    • Data sheet
    • 3D Model
    • UL certification
    • Man. Inst. IT/EN
    • Man. Utente IT/EN/FR
    • MyPixsysLab
    to unlock downloads ACCEPT COOKIES
    • Dimensions
      48 x 96 x 69 mm
    • Material
      Box: PC UL94V2 self-extinguishing, front: PC UL94V2
    • Weight
      Approx. 245 g
    • Sealing
      Front panel: IP65, Box and terminal blocks: IP20
    • Operating conditions
      Temperature 0-45 °C, humidity 35..95 RH%
    • Certifications
      CE

    ORDERING CODES

    ATR444-13ABC

    ATR444-14ABC-T

    ATR444-15ABC

    ATR444-22ABC

    ATR444-24ABC-T

    Power supply

    24..230 V AC / DC ±15% 50/60 Hz - galvanic isolation 2,5KV

    Power consumption

    8 Watt/VA

    10 Watt/VA

    12 Watt/VA

    10 Watt/VA

    12 Watt/VA

    Display

    4 digits 0,63’’ + 5 digits 0,39’’ + 5 digits 0,33’’ + bar graph

    Analogue inputs

    1 x Ris. 16bit, programmable for thermocouples K, S, R, J, T, N, B (automatic compensation of cold junction -25..85°C, ±0,2% F.S. ±1 digit F.S.), Thermoresistances PT100, PT500, PT1000, Ni100, PTC1K, NTC10K (β 3435K), process signals 0..10 V (50000 points), 0/4..20mA (40000 points), 0..60 mV (25000 points), potentiometer 1..150 KΩ (50000 points)

    2 x Ris. 16bit, programmable for thermocouples K, S, R, J, T, N, B (automatic compensation of cold junction-25..85°C, ±0,2% F.S. ±1 digit F.S.), Thermoresistances PT100, PT500, PT1000, Ni100, PTC1K, NTC10K (β 3435K), process signals 0..10 V (50000 points), 0/4..20mA (40000 points), 0..60 mV (25000 points), potentiometer 1..150 KΩ (50000 points)

    Sampling time

    Programmable up to 2,1 ms (frequency up to 470 Hz)

    TA input

    1x T.A. 50 mA, 800 μs - 4096 points

    1x T.A. 50 mA, 800 μs - 4096 points

    1x T.A. 50 mA, 800 μs - 4096 points

    2x T.A. 50 mA, 800 μs - 4096 points

    1x T.A. 50 mA, 800 μs - 4096 points

    Digital inputs

    4x PNP

    2x PNP

    4x PNP

    4x PNP

    4x PNP

    Digital outputs

    2x SSR 12 / 24 V DC - 25 mA max

    Auxiliary Outputs

    12/24 VDC - 30mA max for sensor supply

    Relay Output

    3x 5 A - 250 V AC resistive load

    4x 5 A - 250 V AC resistive load

    5x 5 A - 250 V AC resistive load

    2x 5 A - 250 V AC resistive load

    4x 5 A - 250 V AC resistive load

    Analogue outputs

    1x Selection 4..20 mA (40000 points ± 0,2% F.S.) o 0..10 V DC (40000 points ± 0,2% F.S.) command or retransmission PV / SPV

    1x Selection 4..20 mA (40000 points ± 0,2% F.S.) o 0..10 V DC (40000 points ± 0,2% F.S.) command or retransmission PV / SPV

    -

    1x Selection 4..20 mA (40000 points ± 0,2% F.S.) o 0..10 V DC (40000 points ± 0,2% F.S.) command or retransmission PV / SPV

    2x Selection 4..20 mA (40000 points ± 0,2% F.S.) o 0..10 V DC (40000 points ± 0,2% F.S.) command or retransmission PV / SPV

    Serial communication

    -

    RS485 (1200..115200 Baud) galvanically isolated

    -

    -

    RS485 (1200..115200 Baud) galvanically isolated

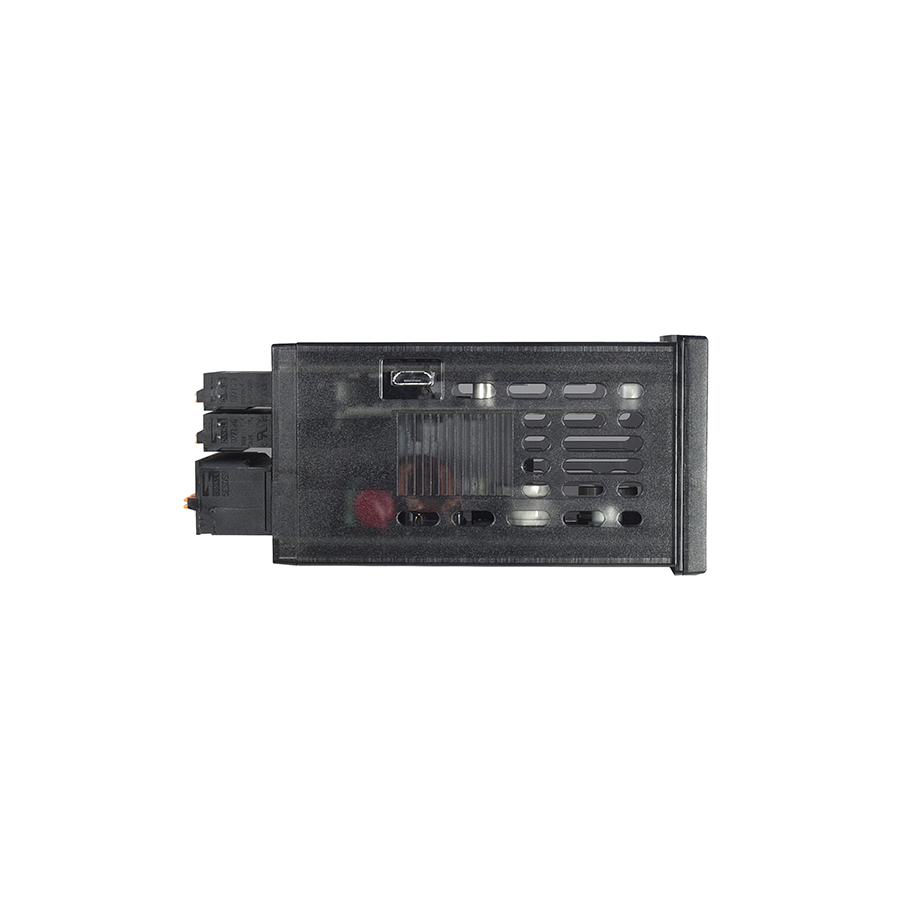

    USB

    1x micro USB for programming via PC with MyPixsysLab
    • Control algorithms
      ON - OFF with hysteresis, P., P.I., P.I.D., P.D. time proportional
    • Tuning
      Manual or automatic
    • Alarm mode
      Absolute / Threshold, Band, High / Low deviation. Alarm with optional Manual reset. Loop Break Alarm
    • Dual P.I.D.
      Heating / Cooling with dual P.I.D.
    • Soft-Start
      Rising gradient expressed as Degrees / Hour or fixed output percentage
    • Open / Close logics
      Open / Close logics for motorized valves
    • Software parameter configuration
      Memory Card, software MyPixsysLab, codes EASY-UP - Programming via APP (NFC) "MyPixsys" for Android and iOS devices
    • Data protection
      Lock of Control/Alarm Setpoints - Access to parameters by Password
    • Communication protocols
      Modbus RTU
    • Programmer function
      Cycle with up to 12 steps and end-of-step recovery/waiting functions
    ATR444
    • ATR444-13ABC
      MULTI-SETPOINT CONTROLLER 48x96
      1AI+1AO+4DI+2DO+3RELAIS
      link locator link pixsys link shop
    • ATR444-14ABC-T
      MULTI-SETPOINT CONTROLLER 48x96
      1AI+1AO+2DI+2DO+4RELAIS+RS485
      link locator link pixsys link shop
    • ATR444-15ABC
      MULTI-SETPOINT CONTROLLER 48x96
      1AI+4DI+2DO+5RELAIS
      link locator link pixsys link shop
    • ATR444-22ABC
      MULTI-SETPOINT CONTROLLER 48x96
      2AI+1AO+4DI+2DO+2RELAIS
      link locator link pixsys link shop
    • ATR444-24ABC-T
      MULTI-SETPOINT CONTROLLER 48x96
      2AI+2AO+4DI+2DO+4RELAIS+RS485
      link locator link pixsys link shop
