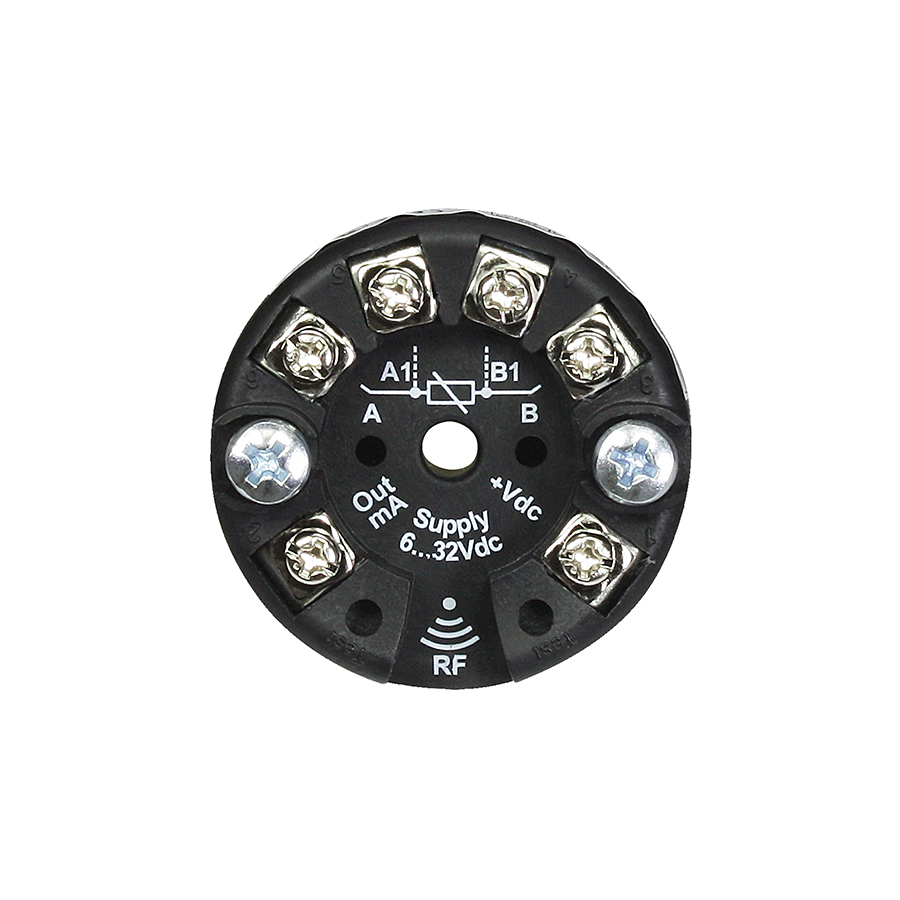

2000.35.010 / 015 | Signal Converter RTD /Thermocouples

This temperature transmitter for DIN/B head converts a signal acquired via PT100, PT1000, Ni100 probes or thermocouple into a current signal for 4..20 mA loop (2-wire technology).

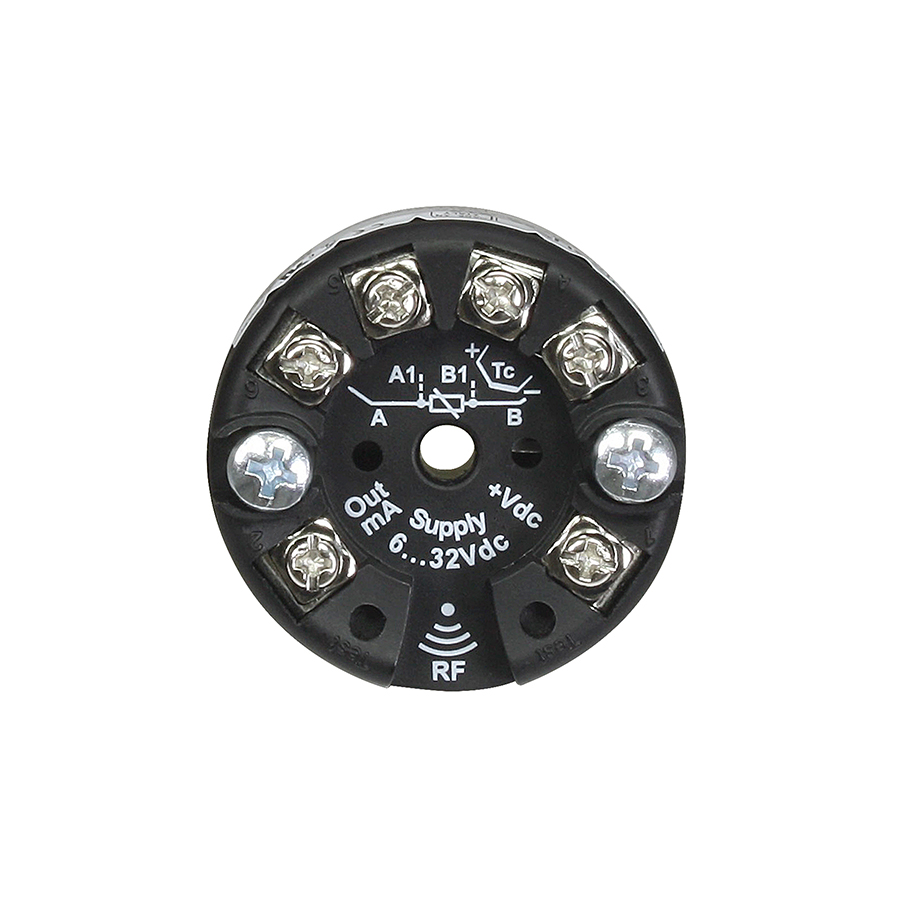

A version with galvanic isolation is also available (code 2000.35.015).

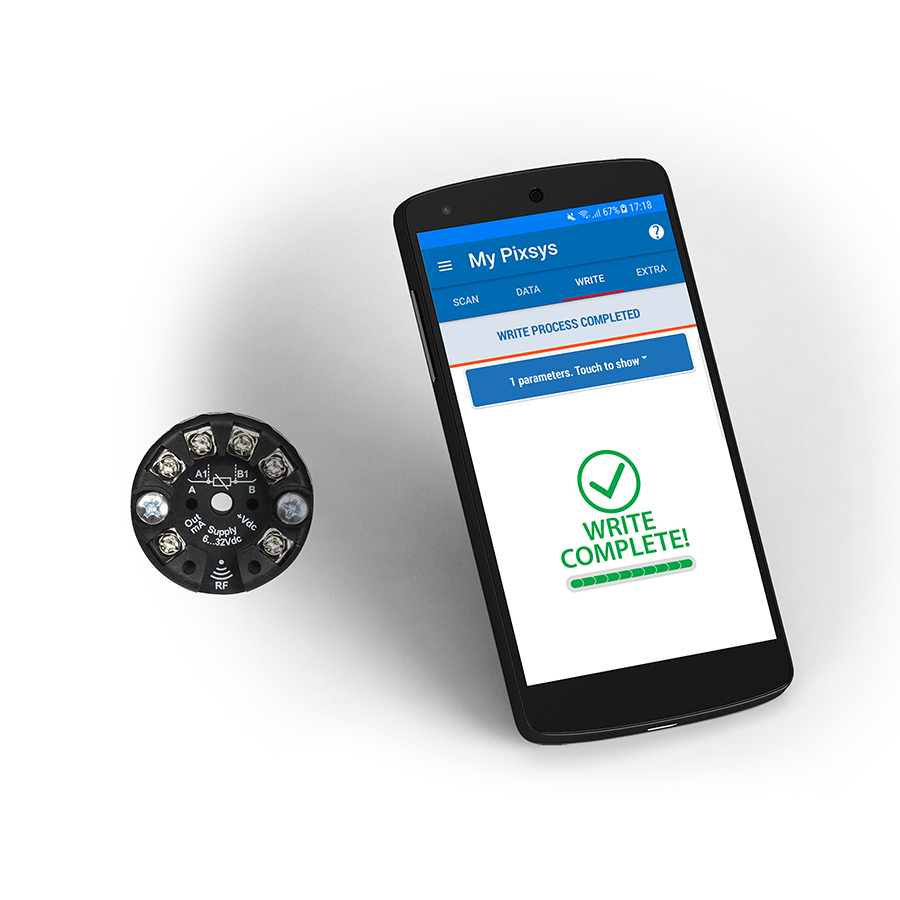

Unique features is the programming via NFC technology, not requiring the devices to be powered up. User can chose between a dedicated NFC programmer and RF-Programmer software on Pc or App MyPixsys on smartphone available on Play Store.

Downloads

User Manuals

Software

RF programmer Pixsys

Video

Close ×

Main features

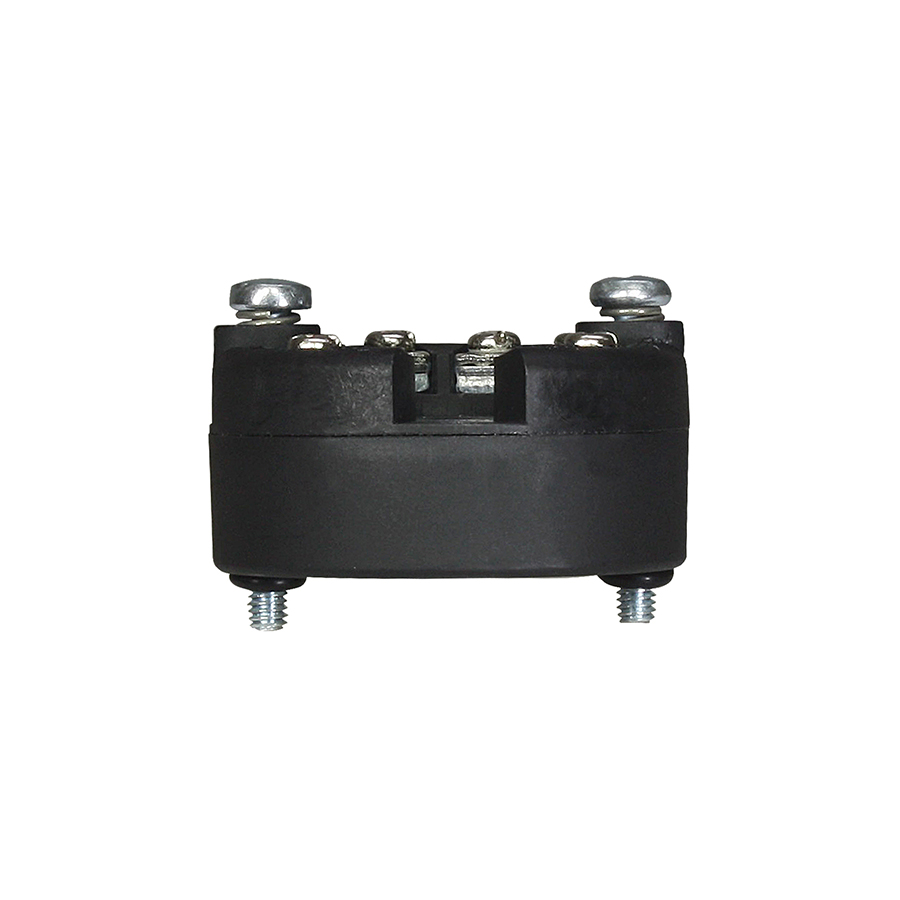

Dimensions
Ø 45 mm, 23 mm
Material
Nylon (PA66)
Weight
Approx. 30 g
Sealing
Box and terminal blocks: IP20
Operating conditions
Temperature -40+85 °C, humidity 30..90 uR%
Certifications
CE, UL

Hardware features

ORDERING CODES	2000.35.010	2000.35.015
Power supply	Loop Power (2 wires connection) operating range 6-32 Vdc
Analogue inputs	1 x selectable among Thermoresistances PT100, PT1000, Ni100 - 2/3/4 wires	1 x selectable among Thermocouples K, S, R, J, T, N, B, E - Thermoresistances PT100, PT1000, Ni100 - 2/3/4 wires
Sampling/response time	300 mS / 600 mS
Rejection	50-60 Hz
Output resolution	2 μA
Max. transmission error	0,1% f.s o 0,2°C
Temperature coefficient	< 100 ppm
Cable resistance	Max 20Ω
Over-range output	f.s. + 5°C
Under-range output	f.s. - 5°C
Error output	Selectable between 21,5mA or 3,8mA
Current output protection	30 mA

Software features

Data Logger function
Tempo di campionamento 1..3600 S - 2800 campionamenti - buffer circolare
Control algorithms
ON - OFF with hysteresis, P., P.I., P.I.D., P.D. time proportional
Tuning
Manual or automatic
Alarm mode
Absolute / Threshold, Band, High / Low deviation. Alarm with optional Manual reset. Loop Break Alarm
Double P.I.D.
Heating / Cooling with double P.I.D.
Soft-Start
Rising gradient expressed as Degrees / Hour or fixed output percentage
Open / Close logic
Open / Close logic for motorized valves
Software parameter configuration
Memory Card, software LABSOFTVIEW, codes EASY-UP - Programming via APP (NFC) "MyPixsys" for Android and iOS devices
Software protection
Lock of control / alarm setpoint / Access to parameters by password
