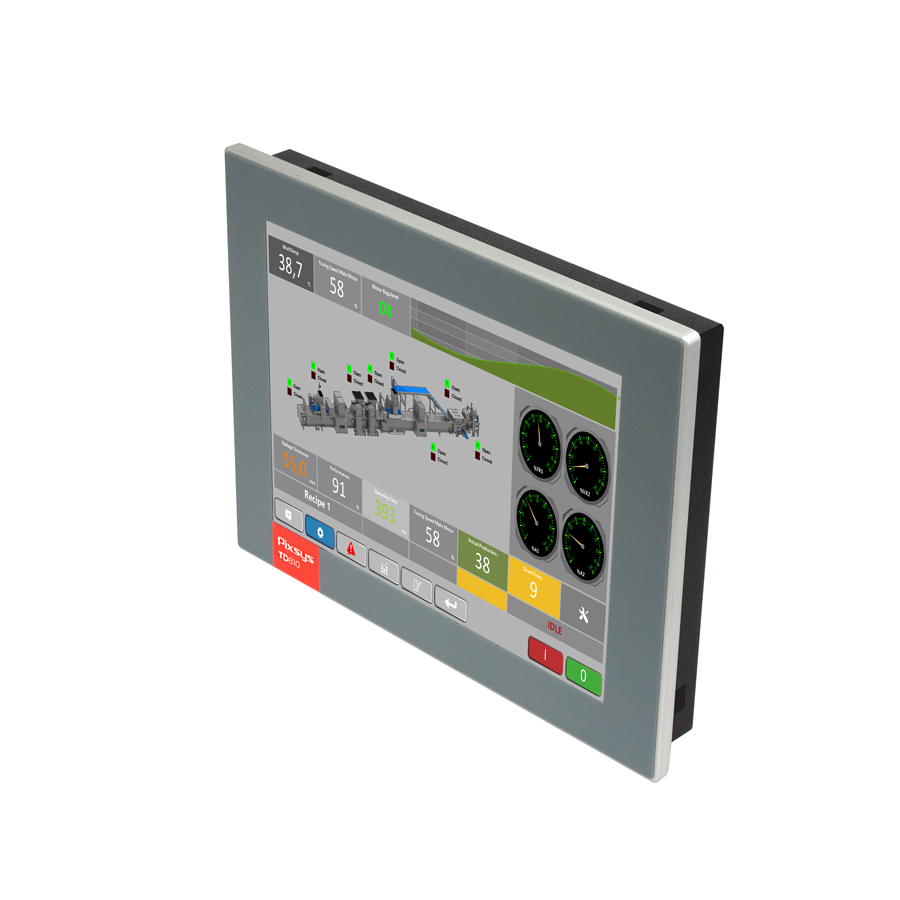

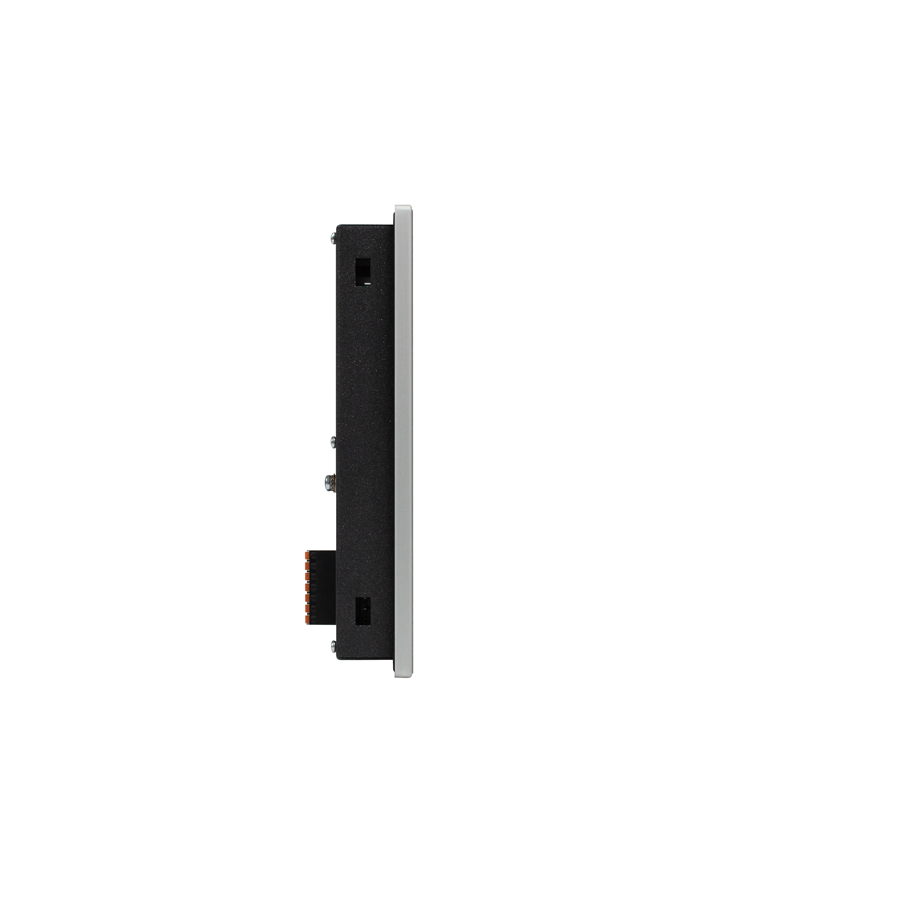

TD810 | HMI 10.4" with Soft-PLC

Resistive Touchscreen  800x600, ratio 4:3

HMI TD810 integrates a Soft-PLC programmable with LogicLab tool, IEC61131-3 compliant (ST, IL, FBD, SFC, LADDER).

Movicon 11.6 is the tool for developing the graphic interface.

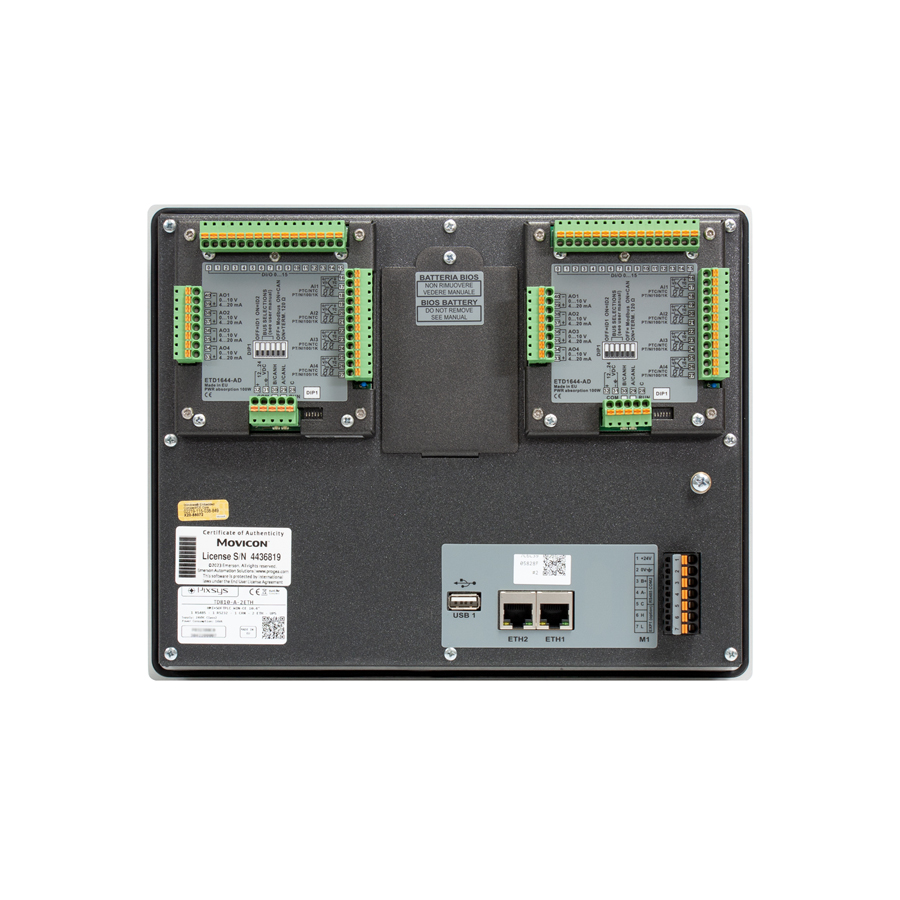

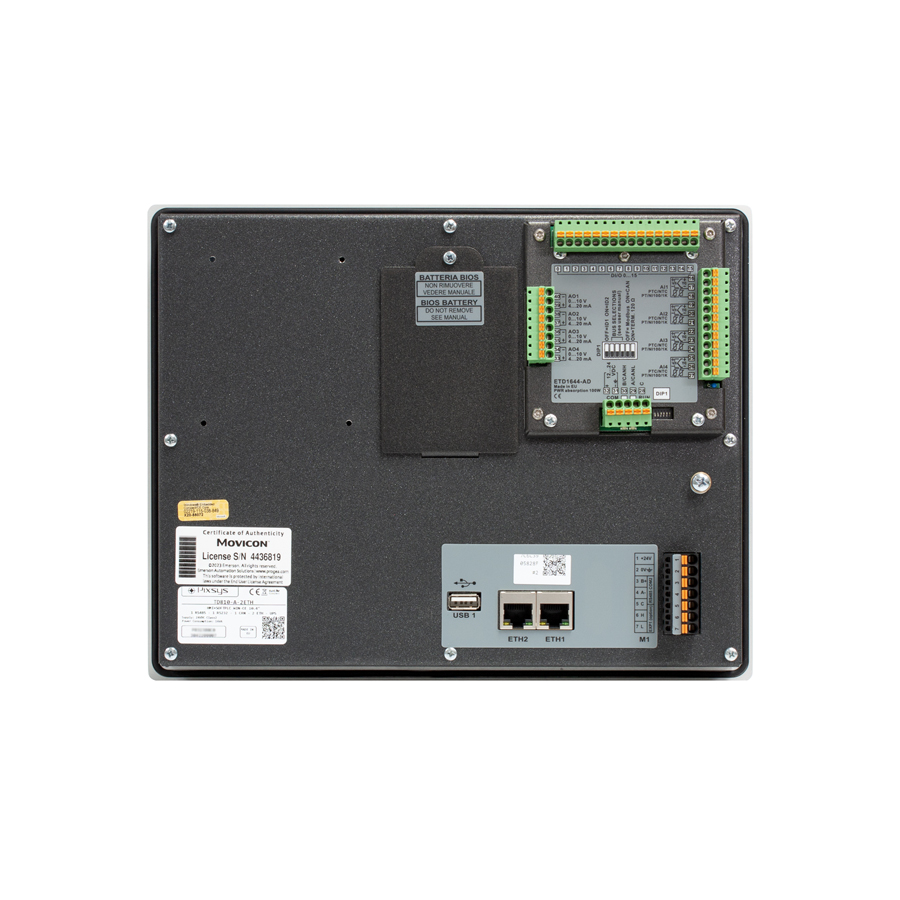

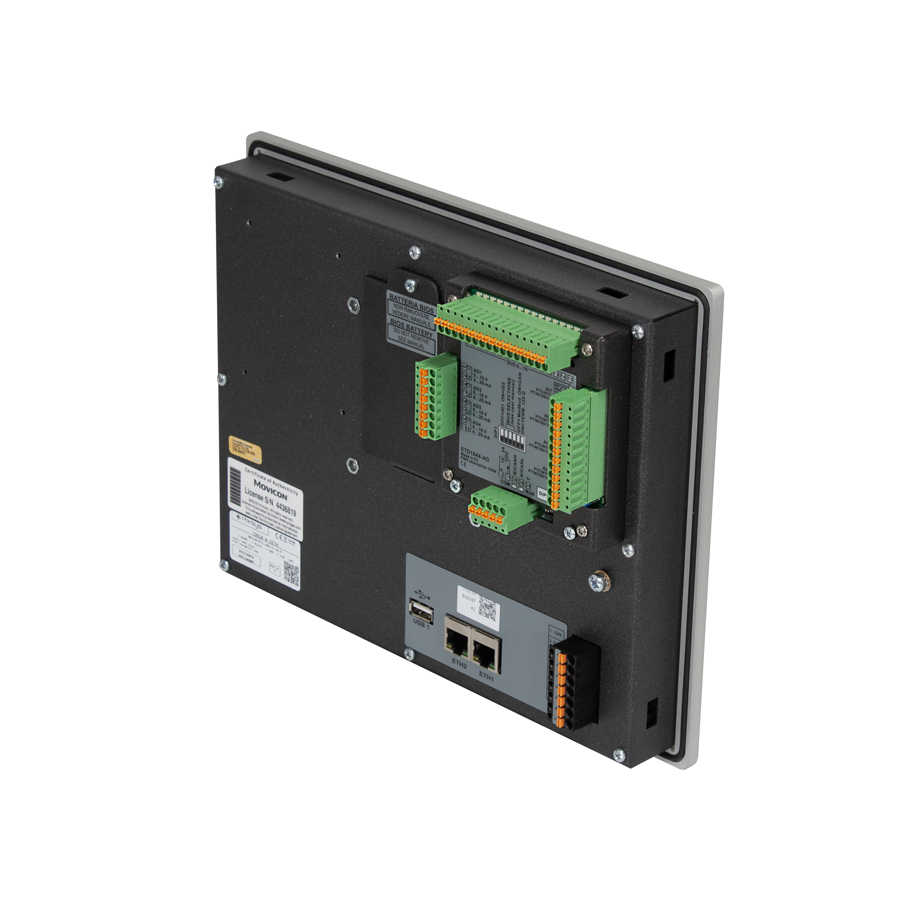

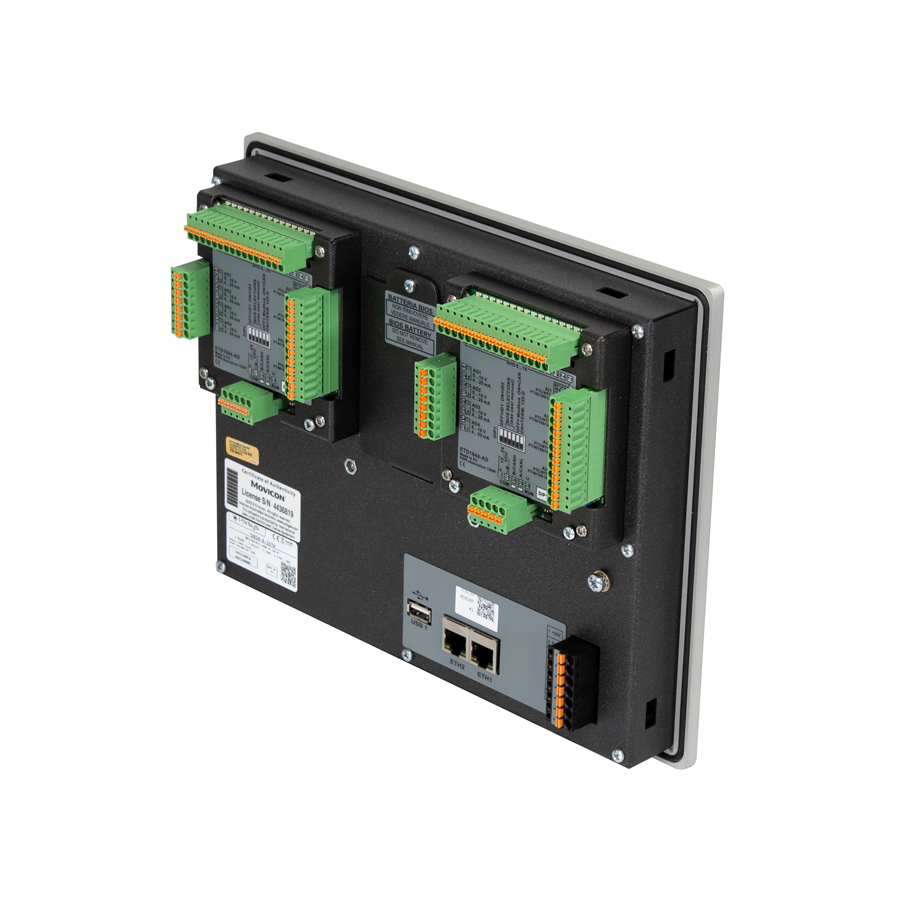

Up to two ETD1644 I/O boards with plug-in connection at the rear of the panel allow compact solutions for systems with a small number of analogue-digital I/Os. The MCM260X series provides additional remote I/Os.

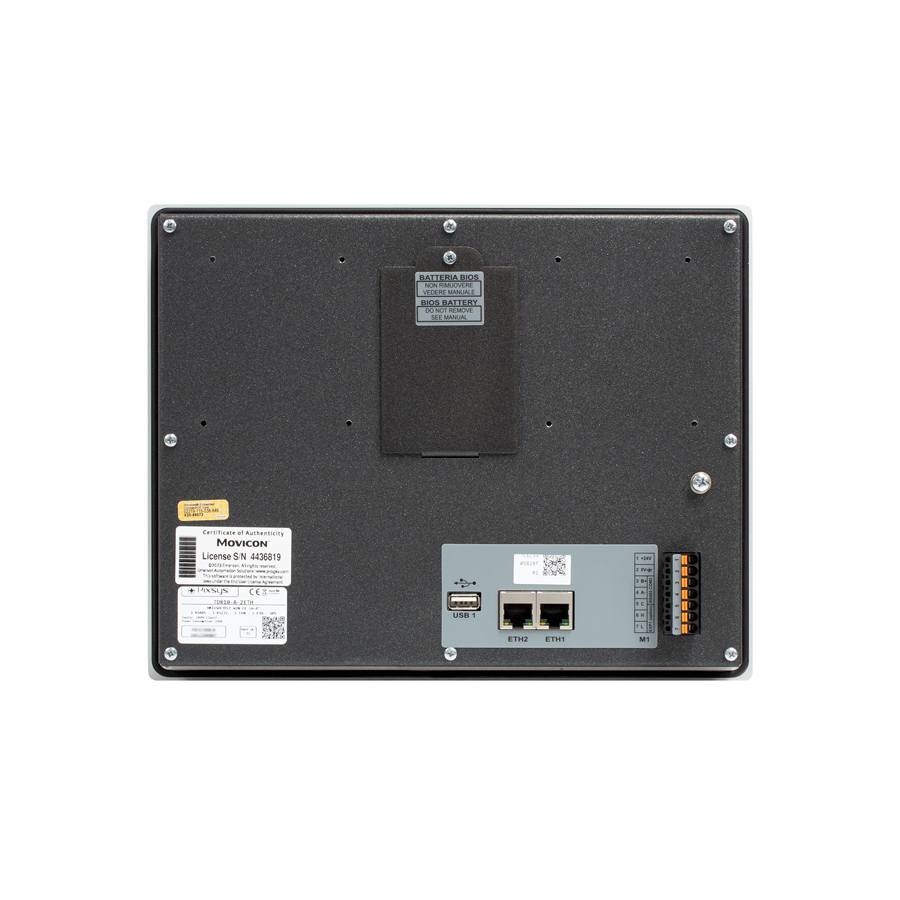

Connectivity includes an opto-isolated RS485 serial, a CAN port and two  10/100 Ethernet ports with distinct MAC address, allowing to separate the machine/plant's network from company's network (ERP, iNDUSTRY 4.0, Internet).

VPN connection for remote desktop/webserver and projects debugging/updating is integrated via pre-installed Pixsys Portal software service.

  • Dimensions

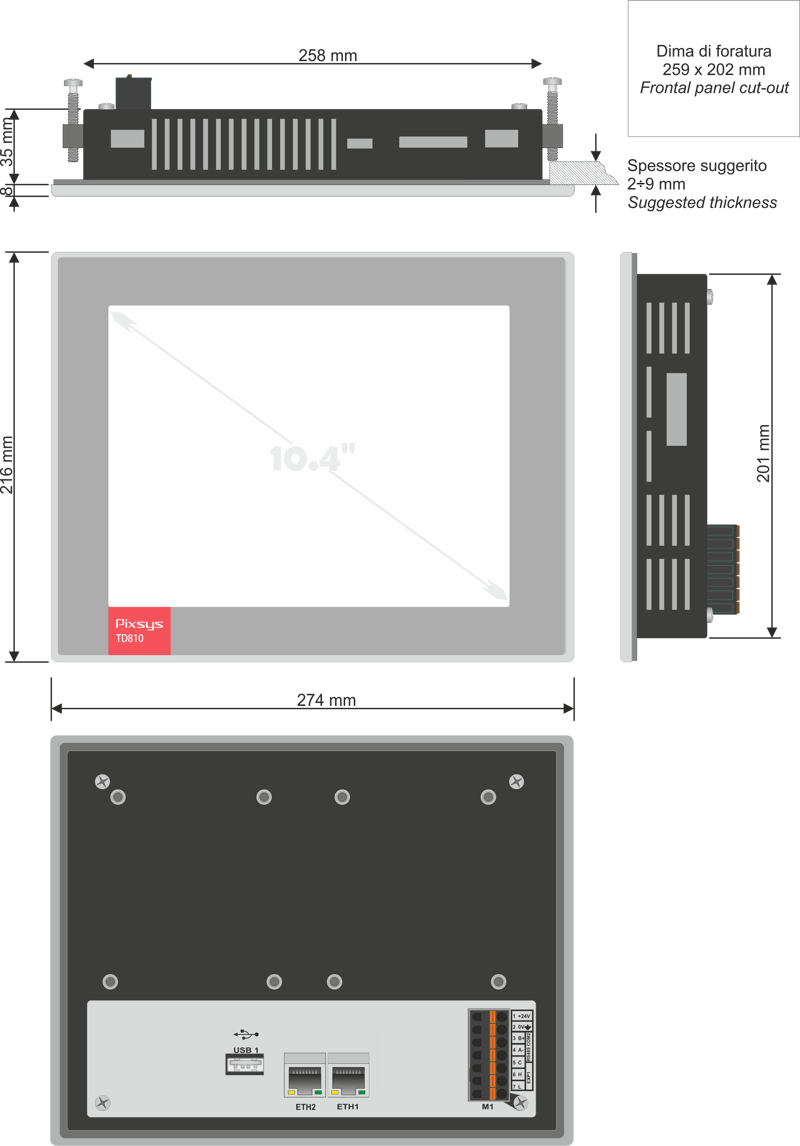

    274 x 216 x 35 mm (panel cut-out 259 x 202 mm)
  • Material
    Front panel: aluminium with polycarbonate coverage; Housing: 10/10 steel, Ral 7016
  • Weight
    Approx. 1600 g
  • Sealing
    Front panel: IP65 , Housing and terminal blocks: IP20
  • Operating conditions
    Temperature 0-50 °C, humidity 10..90 uR% (non-condensing)
  • Certifications
    CE, UL



Power supply

24 V AC/DC ±15% 50/60 Hz - galvanic isolation 2,5kV

Power consumption

7,5 Watt/VA


ARM Cortex A8 @ 1 GHz


eMMC 2 GB / RAM 512 MB DDR3


10.4" LCD TFT resistive touch, 800x600 pixel, 65k colours (lifetime typ. 30000h @ 25°C)


Real-Time clock, Back-up battery

Serial communication

RS485 (1200..115200 Baud) galvanically isolated


CAN (50K..1Mbit) galvanically isolated


2x 10 / 100 Mbit/s - separate MAC address


1x USB 2.0

  • Operating system
    Windows 7 Embedded Compact
  • Communication protocols
    Modbus RTU - Modbus TCP/IP - CAN Open - Free Port mode
  • Soft PLC Logics programming
    LogicLab (IDE), standard IEC61131-3 (ST, IL, FBD, SFC, LADDER), cycle time 4 mS
  • Graphic interface programming
    Movicon 11.6 (IDE)
  • VPN
    Pixsys Portal software (pre-installed in demo version) for remote desktop connection (VNC) / Web Server / Client FTP, remote assistance.
